H2175 Series
Manufacturer: Harwin Inc.
Beta
⌘K

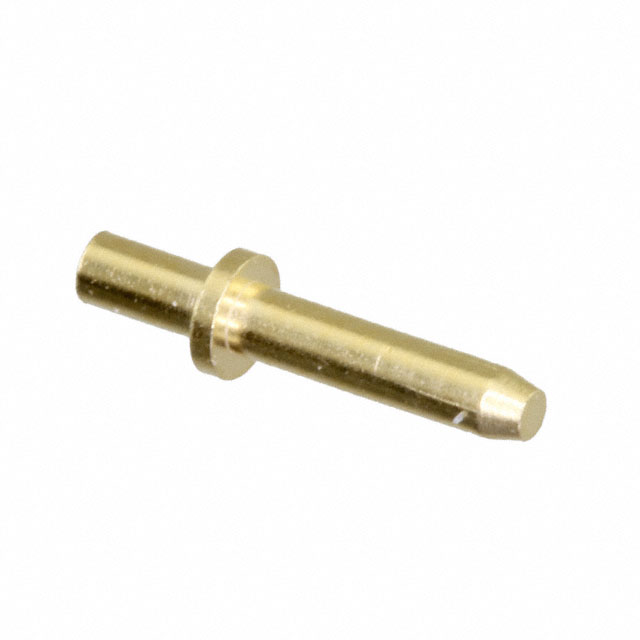

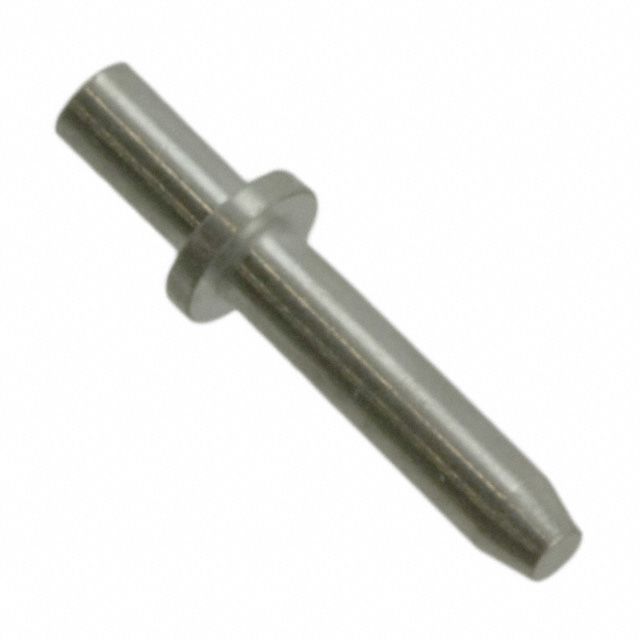

MALE VERTICAL THROUGHBOARD TERMINAL PIN ROHS COMPLIANT: YES
| Part | Board Thickness | Board Thickness | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Max] [diameter] | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Max] [diameter] | Terminal Style | Length - Overall [x] | Length - Overall [x] | Termination | Length - Below Flange [x] | Length - Below Flange [x] | Terminal Type | Insulation | Contact Material | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish | Mounting Type | Length - Above Flange [x] | Length - Above Flange [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 0.063 in | 1.6 mm | 1.04 mm | 1.14 mm | 0.041 in | 0.045 in | Single End | 0.275 in | 6.98 mm | Swage | 2.08 mm | 0.082 " | PC Pin | Non-Insulated | Brass | 0.041 in | 1.04 mm | 1.77 mm | 0.07 in | Gold | Through Hole | 4.55 mm | 0.179 in |
 Harwin Inc. | 0.063 in | 1.6 mm | 1.04 mm | 1.14 mm | 0.041 in | 0.045 in | Single End | 0.275 in | 6.98 mm | Swage | 2.08 mm | 0.082 " | PC Pin | Non-Insulated | Brass | 0.041 in | 1.04 mm | 1.77 mm | 0.07 in | Tin | Through Hole | 4.55 mm | 0.179 in |
