RF Connectors / Coaxial Connectors
RF Connectors / Coaxial Connectors
| Part | Number of Ports | Impedance | Frequency - Max [Max] | Center Contact Material | Connector Type | Mounting Type | Contact Termination | Features | Mounting Feature | Shield Termination | Fastening Type | Connector Style [x] | Connector Style | Connector Style | Overall Impedance | 2nd Connector | 2nd Contact Gender | Color | Length | Length | Operating Temperature [Max] | Operating Temperature [Min] | 1st Connector | 2nd Connector Mounting Type | Cable Type | Cable Type [diameter] | Style [Min] | Style [Max] | 1st Connector Mounting Type | 1st Contact Gender | Mating Cycles | Dielectric Material | Center Contact Plating | Body Material | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

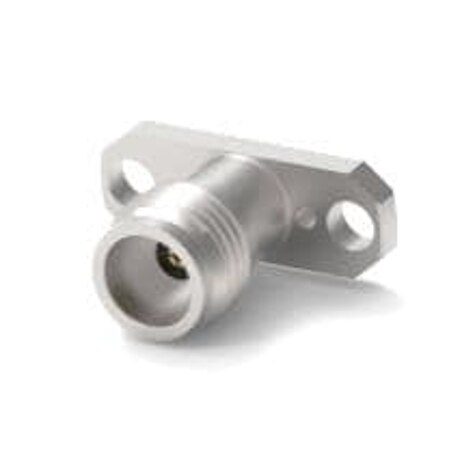

 TE Connectivity AMP Connectors | 1 | 50 Ohms | 50 GHz | Beryllium Copper | Female Socket Jack | Through Hole | Solder | Extended Insulation | Flange | Screw | Threaded | 2.4 mm | OS-50 | APC-2.4 | |||||||||||||||||||||
 TE Connectivity AMP Connectors | 50 GHz | Armored Cable Shielded | 50 Ohms | 2.4 mm | Male | Black | 39.4 in | 3.3 ft | 85 °C | -40 C | 2.4 mm | Free Hanging (In-Line) | Coaxial Cable | 6 mm | 2.4 mm | 2.4 mm | Free Hanging (In-Line) | Male | |||||||||||||||||
 TE Connectivity AMP Connectors | 1 | 50 Ohms | 50 GHz | Beryllium Copper | Female Socket Jack | Surface Mount | Compression | Flange | Screw | Threaded | 2.4 mm | OS-50 | APC-2.4 | 125 °C | -55 C | 500 | Polyetherimide (PEI) | Gold | Stainless Steel | 335 V |
