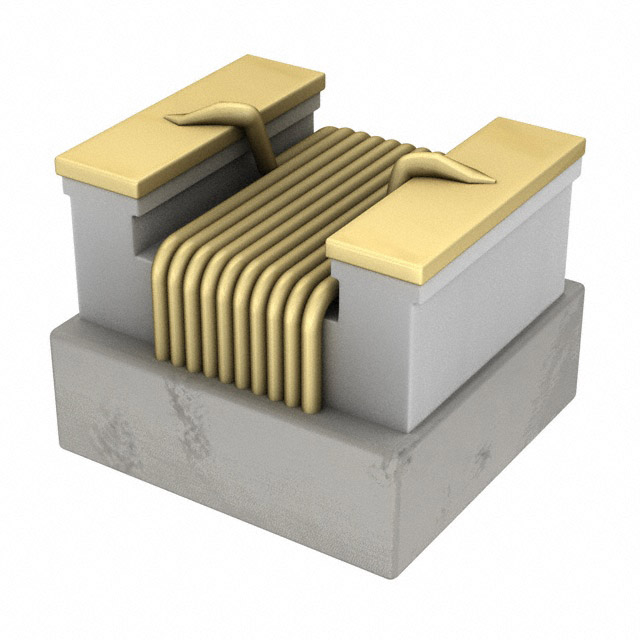

AISC-1008 Series

Catalog

RF INDUCTORS - SMD IND 39.00 NH 1.000 A 150.00 MOHM

Part	Q @ Freq	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Self Resonant	Type	Material - Core	Package / Case	Package / Case	Mounting Type	Inductance Frequency - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Shielding	Tolerance	Supplier Device Package	Supplier Device Package	Inductance	DC Resistance (DCR) [Max]	Q @ Freq [custom]
Abracon LLC AISC-1008-R039J-T	50	1 A	125 °C	-40 C	1.5 GHz	Drum Core Wirewound	Ceramic	2520 Metric	1008	Surface Mount	50 MHz	2.29 mm	0.09 "	150 mOhm	2.92 mm	0.115 "	2.79 mm	0.11 "	Unshielded	5 %	2520 Metric	1008	39 nH
Abracon LLC AISC-1008-3R9J-T	17	0.26 A	125 °C	-40 C	60 MHz	Drum Core Wirewound	Ceramic	2520 Metric	1008	Surface Mount	7.9 MHz	2.29 mm	0.09 "		2.92 mm	0.115 "	2.79 mm	0.11 "	Unshielded	5 %	2520 Metric	1008	3.9 µH	3.6 Ohm	25 MHz
Abracon LLC AISC-1008-R082G-T	60 350 MHz	1 A	125 °C	-40 C	800 MHz	Drum Core Wirewound	Ceramic	2520 Metric	1008	Surface Mount	50 MHz	2.29 mm	0.09 "		2.92 mm	0.115 "	2.79 mm	0.11 "	Unshielded	2 %	2520 Metric	1008	82 nH	220 mOhm
Abracon LLC AISC-1008-1R8G-T	28 50 MHz	0.3 A	125 °C	-40 C	120 MHz	Drum Core Wirewound	Ceramic	2520 Metric	1008	Surface Mount	7.9 MHz	2.29 mm	0.09 "		2.92 mm	0.115 "	2.79 mm	0.11 "	Unshielded	2 %	2520 Metric	1008	1.8 µH	2.6 Ohm
Abracon LLC AISC-1008-3R9G-T	17	0.26 A	125 °C	-40 C	60 MHz	Drum Core Wirewound	Ceramic	2520 Metric	1008	Surface Mount	7.9 MHz	2.29 mm	0.09 "		2.92 mm	0.115 "	2.79 mm	0.11 "	Unshielded	2 %	2520 Metric	1008	3.9 µH	3.6 Ohm	25 MHz
