T 3378 Series

Catalog

CONN PLUG FMALE 5P SOLDER CUP

Part	Mounting Type	Contact Finish - Mating	Ingress Protection	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Orientation	Number of Positions	Shell Material	Fastening Type	Current Rating (Amps)	Features	Primary Material	Connector Type	Contact Type	Contact Size	Note	Type	Shielding	Material Flammability Rating	Contact Shape	Insert Material	Housing Color

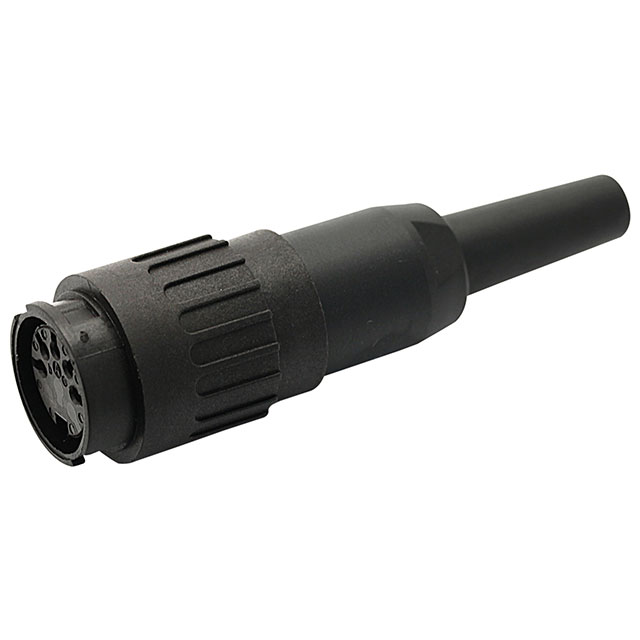

Amphenol Tuchel Industrial T 3378 501	Free Hanging (In-Line)	Silver	IP40	250 V	-40 C	100 °C	M16-5	Keyed	5	Plastic	Bayonet Lock	7 A	Strain Relief	Plastic	Plug Female Sockets

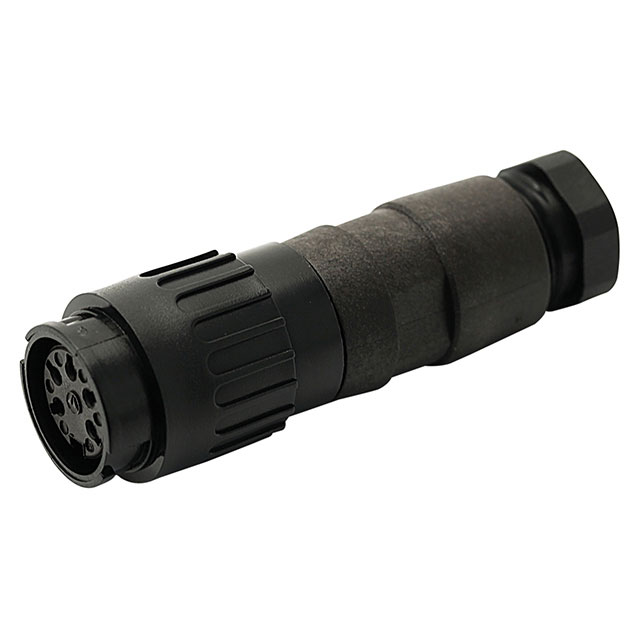

Amphenol Tuchel Industrial T 3378 552	Free Hanging (In-Line)		IP40		-40 C	100 °C	M16-5	Keyed	5	Plastic	Bayonet Lock		Backshell Cable Clamp Coupling Nut		Plug Housing	Crimp	1.5 mm	Contacts Not Included	For Female Sockets	Unshielded	UL94 V-0	Circular	Thermoplastic	Black
Amphenol Tuchel Industrial T 3378 502	Free Hanging (In-Line)	Silver	IP40	250 V	-40 C	100 °C	M16-5	Keyed	5	Plastic	Bayonet Lock	7 A	Cable Clamp Strain Relief	Plastic	Plug Female Sockets
Amphenol Tuchel Industrial T 3378 551	Free Hanging (In-Line)		IP40		-40 C	100 °C	M16-5	Keyed	5	Plastic	Bayonet Lock		Cable Clamp Coupling Nut Strain Relief		Plug Housing	Crimp	1.5 mm	Contacts Not Included	For Female Sockets	Unshielded	UL94 V-0	Circular	Thermoplastic	Black
