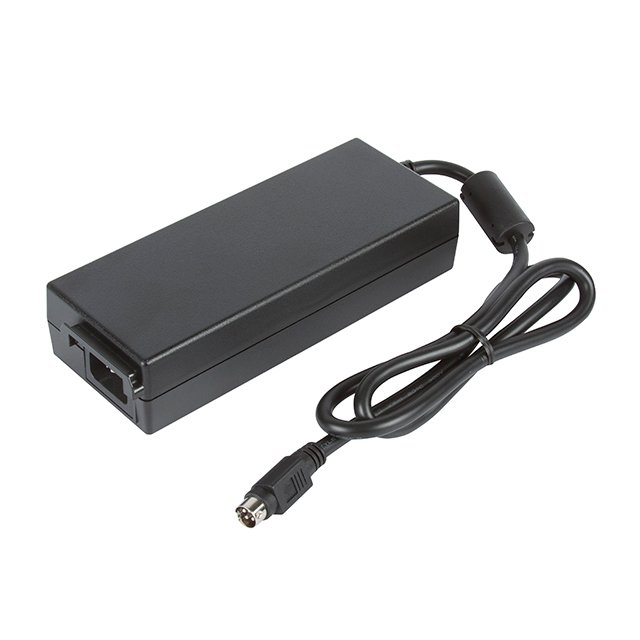

ALM120 Series

Manufacturer: XP Power

Catalog

AC/DC DESKTOP ADAPTER 15V 120W

Part	Power (Watts)	Form	Approval Agency	Applications	Operating Temperature [Max]	Voltage - Output	Input Type	No Load Power Consumption	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Output Connector	Input Connector	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output (Max) [Max]	Standard Number	Region Utilized	Cord Length	Cord Length	Current - Output (Max)
XP Power ALM120PS15C2-8	120 W	Desktop (Class II)	CB CCC CE CSA KC PSE TUV UL	ITE (Commercial) Medical	60 °C	15 V	Cord (Sold Separately)	150 mW	1.49 in	2.67 in	68 mm	6.73 in	38 mm	171 mm	CoC Tier 2 Level VI	Power DIN 4 Pin	IEC 320-C8	80 VAC	264 VAC	8 A	60601-1; 62368-1	International	0.9 m	35.4 in
XP Power ALM120PS12	120 W	Desktop (Class I)	CB CCC CE CSA KC PSE TUV UL	ITE (Commercial) Medical	60 °C	12 V	Cord (Sold Separately)	150 mW	1.49 in	2.67 in	68 mm	6.73 in	38 mm	171 mm	CoC Tier 2 Level VI	Power DIN 4 Pin	IEC 320-C14	80 VAC	264 VAC	10 A	60601-1; 62368-1	International	0.9 m	35.4 in
XP Power ALM120PS12C2-8	120 W	Desktop (Class II)	CB CCC CE CSA KC PSE TUV UL	ITE (Commercial) Medical	60 °C	12 V	Cord (Sold Separately)	150 mW	1.49 in	2.67 in	68 mm	6.73 in	38 mm	171 mm	CoC Tier 2 Level VI	Power DIN 4 Pin	IEC 320-C8	80 VAC	264 VAC	10 A	60601-1; 62368-1	International	0.9 m	35.4 in
XP Power ALM120PS24C2-8	120 W	Desktop (Class II)	CB CCC CE CSA KC PSE TUV UL	ITE (Commercial) Medical	60 °C	24 V	Cord (Sold Separately)	150 mW	1.49 in	2.67 in	68 mm	6.73 in	38 mm	171 mm	CoC Tier 2 Level VI	Power DIN 4 Pin	IEC 320-C8	80 VAC	264 VAC		60601-1; 62368-1	International	0.9 m	35.4 in	5 A
XP Power ALM120PS19	120 W	Desktop (Class I)	CB CCC CE CSA KC PSE TUV UL	ITE (Commercial) Medical	60 °C	19 V	Cord (Sold Separately)	150 mW	1.49 in	2.67 in	68 mm	6.73 in	38 mm	171 mm	CoC Tier 2 Level VI	Power DIN 4 Pin	IEC 320-C14	80 VAC	264 VAC	6.32 A	60601-1; 62368-1	International	0.9 m	35.4 in
XP Power ALM120PS24	120 W	Desktop (Class I)	CB CCC CE CSA KC PSE TUV UL	ITE (Commercial) Medical	60 °C	24 V	Cord (Sold Separately)	150 mW	1.49 in	2.67 in	68 mm	6.73 in	38 mm	171 mm	CoC Tier 2 Level VI	Power DIN 4 Pin	IEC 320-C14	80 VAC	264 VAC		60601-1; 62368-1	International	0.9 m	35.4 in	5 A
XP Power ALM120PS19C2-8	120 W	Desktop (Class II)	CB CCC CE CSA KC PSE TUV UL	ITE (Commercial) Medical	60 °C	19 V	Cord (Sold Separately)	150 mW	1.49 in	2.67 in	68 mm	6.73 in	38 mm	171 mm	CoC Tier 2 Level VI	Power DIN 4 Pin	IEC 320-C8	80 VAC	264 VAC	6.32 A	60601-1; 62368-1	International	0.9 m	35.4 in
