JB5CS03A Series
Manufacturer: JAE Electronics
Beta
⌘K

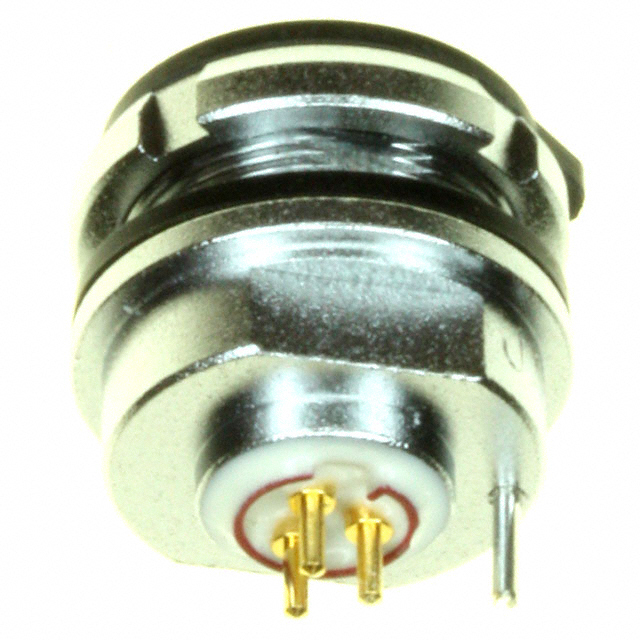

CONN RCPT FMALE 3POS GOLD SOLDER
| Part | Insert Material | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Shielding | Color | Shell Size - Insert | Contact Material | Current Rating (Amps) | Shell Finish | Features | Voltage Rating | Mounting Feature | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Orientation | Primary Material | Ingress Protection | Fastening Type | Applications | Termination | Mounting Type | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Synthetic Resin | Gold | -55 C | 85 °C | Receptacle Female Sockets | Shielded | Silver | S | Copper Alloy | 3 A | Chromium | Dust Cap Ground | 320 VAC | Bulkhead - Front Side Nut | 0.76 Ám | 30 Áin | N (Normal) | Metal | IP68 - Dust Tight Waterproof | Push-Pull | Medical Telecommunications Test & Measurement | Solder | Panel Mount Through Hole | Copper Alloy |
