BAS40 Series

Manufacturer: Micro Commercial Components

Catalog

DIODE SCHOTTKY 40V 200MA SOT523

Part	Technology	Speed	Speed	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Supplier Device Package	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Reverse Recovery Time (trr)	Mounting Type	Capacitance @ Vr, F	Operating Temperature - Junction	Grade	Qualification	Diode Configuration	Current - Average Rectified (Io) (per Diode)
Micro Commercial Components BAS40T-TP	Schottky	Any Speed	200 mA	1 V	200 nA	SOT-523	200 mA	40 V	SOT-523	-55 °C	125 °C	5 ns	Surface Mount	5 pF

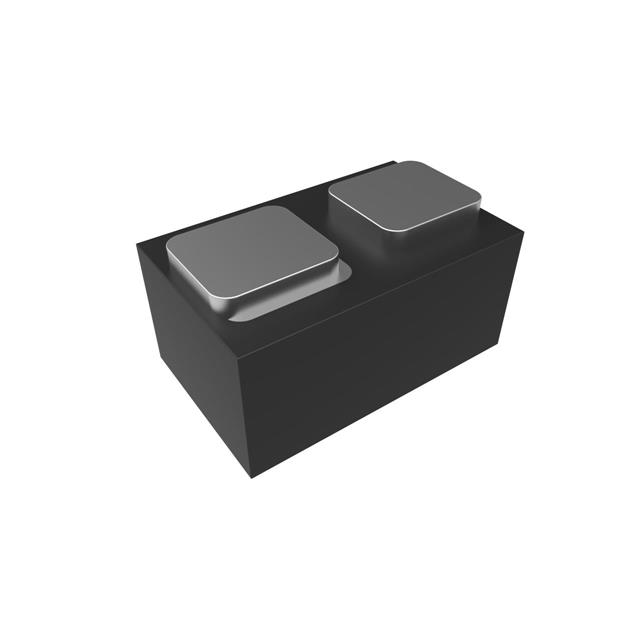

Micro Commercial Components BAS40LP-TP	Schottky	Any Speed	200 mA	1 V	10 µA	SOD-882	120 mA	40 V	SOD-882				Surface Mount	5 pF	150 ¯C
Micro Commercial Components BAS40HE3-TP	Schottky	Any Speed	200 mA	1 V	200 nA	SOT-23	200 mA	40 V	SC-59 SOT-23-3 TO-236-3	-55 °C	125 °C	5 ns	Surface Mount	5 pF		Automotive	AEC-Q101
Micro Commercial Components BAS40-05-TPS01	Schottky	Any Speed	200 mA	1 V	200 nA	SOT-23		40 V	SC-59 SOT-23-3 TO-236-3	-55 °C	125 °C	5 ns	Surface Mount					1 Pair Common Cathode	200 mA

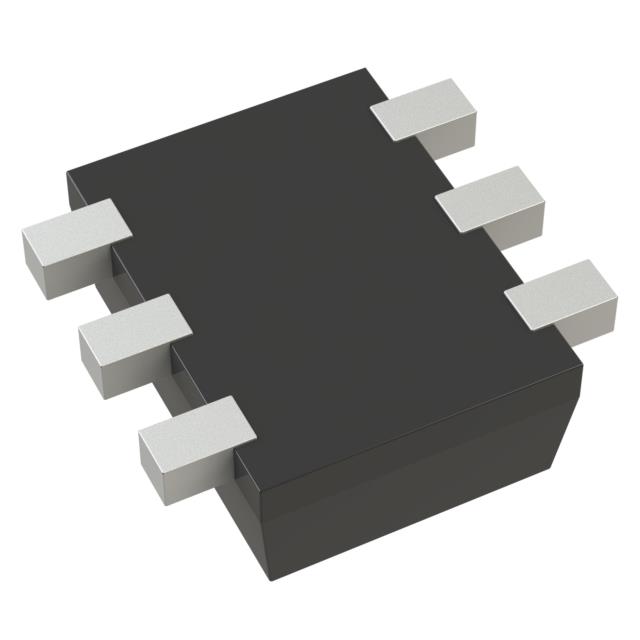

Micro Commercial Components BAS40V-TP	Schottky	Any Speed	200 mA	1 V	200 nA	SOT-563		40 V	SOT-563 SOT-666	-55 °C	125 °C	5 ns	Surface Mount					2 Independent	200 mA
Micro Commercial Components BAS40-04-TP-HF	Schottky	Any Speed	200 mA	1 V	200 nA	SOT-23		40 V	SC-59 SOT-23-3 TO-236-3	-55 °C	125 °C	5 ns	Surface Mount					1 Pair Series Connection	200 mA
Micro Commercial Components BAS40-05HE3-TP	Schottky	Any Speed	200 mA	1 V	200 nA	SOT-23		40 V	SC-59 SOT-23-3 TO-236-3	-55 °C	125 °C	5 ns	Surface Mount			Automotive	AEC-Q101	1 Pair Common Cathode	200 mA
Micro Commercial Components BAS40WT-05-TP	Schottky	Any Speed	200 mA	1 V	1 µA	SOT-323		40 V	SC-70 SOT-323	-55 °C	150 °C	5 ns	Surface Mount					1 Pair Common Cathode	200 mA
Micro Commercial Components BAS40-05-TP	Schottky	Any Speed	200 mA	1 V	200 nA	SOT-23		40 V	SC-59 SOT-23-3 TO-236-3	-55 °C	125 °C	5 ns	Surface Mount					1 Pair Common Cathode	200 mA
Micro Commercial Components BAS40-06T-TP	Schottky	Any Speed	200 mA	1 V	200 nA	SOT-523		40 V	SOT-523	-65 C	125 °C	5 ns	Surface Mount					1 Pair Common Anode	200 mA
