TIIM51 Series

Catalog

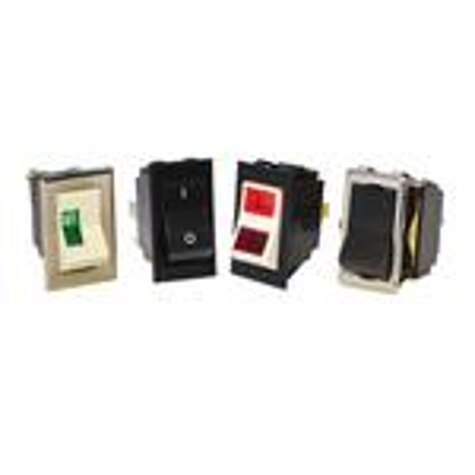

SWITCH ROCKER 4PDT 15A 125V

Part	Mechanical Life	Electrical Life	Circuit	Current Rating (Amps)	Mounting Type	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Actuator Marking	Switch Function	Voltage Rating - AC	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Color - Actuator/Cap	Approval Agency	Termination Style
Carling Technologies TIIM51-1S-WH-FN	50000 Cycles	50000 Cycles	4PDT	15 A	Panel Mount Snap-In	28 V	85 °C	-40 C	Concave	No Marking	On-Off-On	125 V	36.83 mm	21.08 mm	White	cUL UL VDE	Quick Connect - 0.250" (6.3mm)
Carling Technologies TIIM51-1S-BL-FN	50000 Cycles	50000 Cycles	4PDT	15 A	Panel Mount Snap-In	28 V	85 °C	-40 C	Concave	No Marking	On-Off-On	125 V	36.83 mm	21.08 mm	Black	cUL UL VDE	Quick Connect - 0.250" (6.3mm)
Carling Technologies TIIM51-1F-BL-FN	50000 Cycles	50000 Cycles	4PDT	15 A	Panel Mount Snap-In	28 V	85 °C	-40 C	Flat	No Marking	On-Off-On	125 V	36.83 mm	21.08 mm	Black	cUL UL VDE	Quick Connect - 0.250" (6.3mm)
