HSHM Series

Catalog

HARD METRIC CONNECTORS BLACK CONNECTOR SKT 8-ROW HSHM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Features	Current Rating (Amps)	Pitch [x]	Pitch [x]	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Termination	Number of Rows	Mounting Type	Contact Finish	Connector Style	Number of Positions Loaded	Connector Usage	Accessory Type	Specifications	For Use With/Related Products
3M Electronic Specialty HSHM-S176DPWR1-8AP1-TG50	-55 C	125 °C	Mating Guide Upper Shield	1 A	0.079 in	2 mm	176	50 µin	1.27 µm	Receptacle Female Sockets	Press-Fit	8	Right Angle Through Hole	Gold	D 22	All	Backplane
3M Electronic Specialty HSHM-GUIDE-PIN-3																		Guide Pin	M4 Thread	HSHM Series
3M Electronic Specialty HSHM-S125B1-5AP1-TG30					0.079 in	2 mm	125	30 Áin	0.76 Ám	Receptacle Female Sockets	Press-Fit	5	Right Angle Through Hole	Gold	B 25	All	Backplane
3M Electronic Specialty HSHM-GUIDE-PIN-1																		Guide Pin	M4 Thread	HSHM Series
3M Electronic Specialty HSHM-H088FR5-8CP1-TG30	-55 C	125 °C	Board Guide Shielded	1 A	0.079 in	2 mm	88	30 Áin	0.76 Ám	Header Male Pins	Press-Fit	8	Through Hole	Gold	FR 11	All	Backplane
3M Electronic Specialty HSHM-GUIDE-PIN-1-KIT																		Guide Pin	M4 Thread	HSHM Series
3M Electronic Specialty HSHM-GUIDE-PIN-4																		Guide Pin	8-32 UNC-2A Thread	HSHM Series

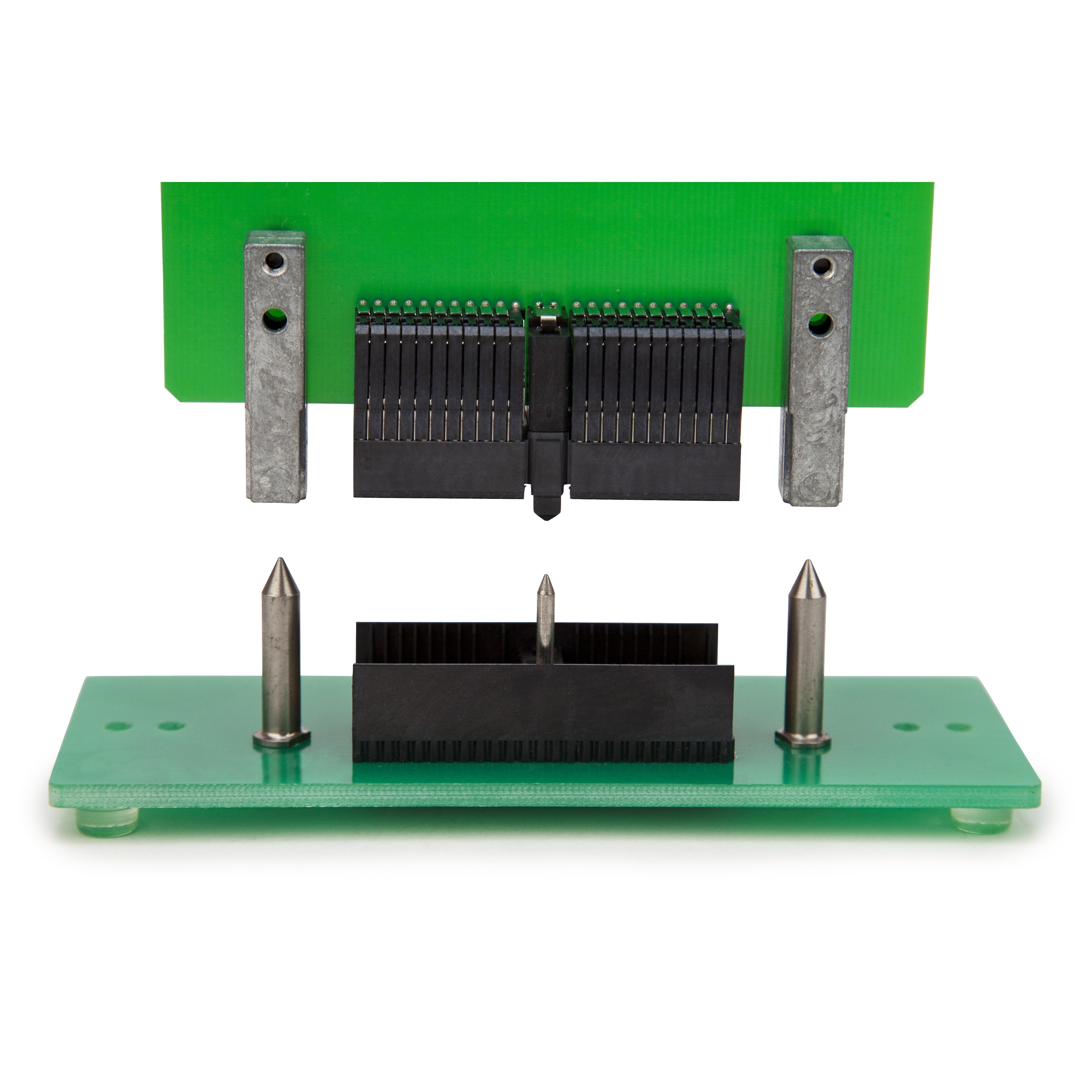

3M Electronic Specialty HSHM-GUIDE-SOCKET-1																		Guide Socket	4-40 Thread	HSHM Series
