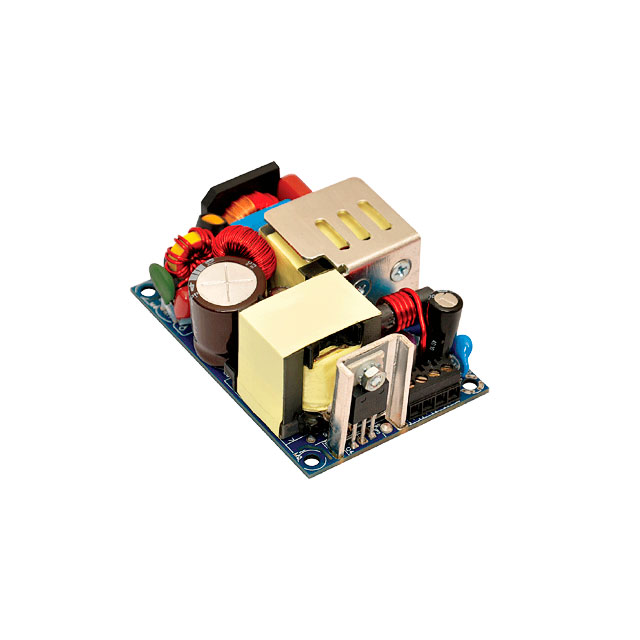

WLP120 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
AC/DC CONVERTER 24V 100W
| Part | Voltage - Isolation | Power (Watts) | Power (Watts) | Current - Output 1 | Type | Standard Number | Approval Agency | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Input | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Output 1 | Mounting Type | Applications | Number of Outputs | Efficiency | Features | Minimum Load Required |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 3000 V | 120 W | 100 W | 4.16 A | Open Frame | 62368-1 | CB CE cUL NEMKO UL | 85 VAC | 264 VAC | 390 VDC | 50.8 mm | 1.18 in | 2 in | 3 " | 76.2 mm | 30 mm | 24 V | Chassis Mount | ITE (Commercial) | 1 | 91 % | Adjustable Output PFC Standby Output Universal Input | |
Bel Fuse Inc. | 3000 V | 120 W | 100 W | 3.33 A | Open Frame | 62368-1 | CB CE cUL NEMKO UL | 85 VAC | 264 VAC | 390 VDC | 50.8 mm | 1.18 in | 2 in | 3 " | 76.2 mm | 30 mm | 30 V | Chassis Mount | ITE (Commercial) | 1 | 91 % | Adjustable Output PFC Standby Output Universal Input | |
Bel Fuse Inc. | 3000 V | 120 W | 100 W | 1.72 A | Open Frame | 62368-1 | CB CE cUL NEMKO UL | 85 VAC | 264 VAC | 390 VDC | 50.8 mm | 1.18 in | 2 in | 3 " | 76.2 mm | 30 mm | Chassis Mount | ITE (Commercial) | 1 | 93 % | Adjustable Output PFC Standby Output Universal Input | ||
Bel Fuse Inc. | 3000 V | 120 W | 100 W | 6.66 A | Open Frame | 62368-1 | CB CE cUL NEMKO UL | 85 VAC | 264 VAC | 390 VDC | 50.8 mm | 1.18 in | 2 in | 3 " | 76.2 mm | 30 mm | 15 V | Chassis Mount | ITE (Commercial) | 1 | 90 % | Adjustable Output PFC Standby Output Universal Input | |
 Bel Fuse Inc. | 3000 V | 120 W | 100 W | 3.33 A | Open Frame | 62368-1 | CB CE cUL NEMKO UL | 85 VAC | 264 VAC | 390 VDC | 50.8 mm | 1.18 in | 2 in | 3 " | 76.2 mm | 30 mm | 30 V | Chassis Mount | ITE (Commercial) | 1 | 91 % | Adjustable Output PFC Standby Output Universal Input | |
 Bel Fuse Inc. | 3000 V | 120 W | 100 W | 3.33 A | Open Frame | 62368-1 | CB CE cUL NEMKO UL | 85 VAC | 264 VAC | 390 VDC | 50.8 mm | 1.18 in | 2 in | 3 " | 76.2 mm | 30 mm | 30 V | Chassis Mount | ITE (Commercial) | 1 | 91 % | Adjustable Output PFC Standby Output Universal Input | |
Bel Fuse Inc. | 3000 V | 120 W | 100 W | 6.66 A | Open Frame | 62368-1 | CB CE cUL NEMKO UL | 85 VAC | 264 VAC | 390 VDC | 50.8 mm | 1.18 in | 2 in | 3 " | 76.2 mm | 30 mm | 15 V | Chassis Mount | ITE (Commercial) | 1 | 90 % | Adjustable Output PFC Standby Output Universal Input | |
Bel Fuse Inc. | 3000 V | 120 W | 100 W | 6.66 A | Open Frame | 62368-1 | CB CE cUL NEMKO UL | 85 VAC | 264 VAC | 390 VDC | 50.8 mm | 1.18 in | 2 in | 3 " | 76.2 mm | 30 mm | 15 V | Chassis Mount | ITE (Commercial) | 1 | 90 % | Adjustable Output PFC Standby Output Universal Input | |
Bel Fuse Inc. | 3000 V | 120 W | 100 W | 8.33 A | Open Frame | 62368-1 | CB CE cUL NEMKO UL | 85 VAC | 264 VAC | 390 VDC | 50.8 mm | 1.18 in | 2 in | 3 " | 76.2 mm | 30 mm | 12 V | Chassis Mount | ITE (Commercial) | 1 | 90 % | Adjustable Output PFC Standby Output Universal Input | |
Bel Fuse Inc. | 3000 V | 120 W | 100 W | 2.08 A | Open Frame | 62368-1 | CB CE cUL NEMKO UL | 85 VAC | 264 VAC | 390 VDC | 50.8 mm | 1.18 in | 2 in | 3 " | 76.2 mm | 30 mm | 48 V | Chassis Mount | ITE (Commercial) | 1 | 93 % | Adjustable Output PFC Standby Output Universal Input |
