396-045 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 45POS 0.125
| Part | Material - Insulation | Termination Rows | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Card Thickness [Max] | Card Thickness [Min] | Number of Positions | Contact Finish | Card Type | Number of Positions/Bay/Row | Contact Type | Termination | Number of Rows | Color | Pitch | Pitch | Contact Material | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Read Out | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 45 | Gold | Non Specified - Single Edge | 45 | Cantilever | Solder Wire Wrap | 1 | Black | 3.18 mm | 0.125 in | Copper Alloy | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | 0.25 Ám | 10 Áin | Right Angle Through Hole | Single | |
 EDAC Inc. | Polyester Thermoplastic | 1 | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 45 | Gold | Non Specified - Single Edge | 45 | Cantilever | Solder Wire Wrap | 1 | Black | 3.18 mm | 0.125 in | Copper Alloy | 0.128 " | 3.25 mm | 0.25 Ám | 10 Áin | Right Angle Through Hole | Single | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 45 | Gold | Non Specified - Single Edge | 45 | Cantilever | Solder Wire Wrap | 1 | Black | 3.18 mm | 0.125 in | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | 0.25 Ám | 10 Áin | Right Angle Through Hole | Single | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 45 | Gold | Non Specified - Single Edge | 45 | Cantilever | Wire Wrap | 1 | Black | 3.18 mm | 0.125 in | Copper Alloy | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | 0.25 Ám | 10 Áin | Through Hole | Single | |
 EDAC Inc. | Polyester Thermoplastic | 1 | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 45 | Gold | Non Specified - Single Edge | 45 | Cantilever | Wire Wrap | 1 | Black | 3.18 mm | 0.125 in | Copper Alloy | M3 Threaded Insert Top Mount Opening | 0.25 Ám | 10 Áin | Through Hole | Single | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 45 | Gold | Non Specified - Single Edge | 45 | Cantilever | Wire Wrap | 1 | Black | 3.18 mm | 0.125 in | Copper Alloy | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.25 Ám | 10 Áin | Through Hole | Single | |
 EDAC Inc. | Polyester Thermoplastic | 1 | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 45 | Gold | Non Specified - Single Edge | 45 | Cantilever | Wire Wrap | 1 | Black | 3.18 mm | 0.125 in | Copper Alloy | M3 Threaded Insert Top Mount Opening | 0.25 Ám | 10 Áin | Through Hole | Single | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 45 | Gold | Non Specified - Single Edge | 45 | Cantilever | Solder | 1 | Black | 3.18 mm | 0.125 in | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | 0.25 Ám | 10 Áin | Through Hole | Single | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 45 | Gold | Non Specified - Single Edge | 45 | Cantilever | Wire Wrap | 1 | Black | 3.18 mm | 0.125 in | Copper Alloy | 0.156 " | 3.96 mm | 0.25 Ám | 10 Áin | Through Hole | Single | ||

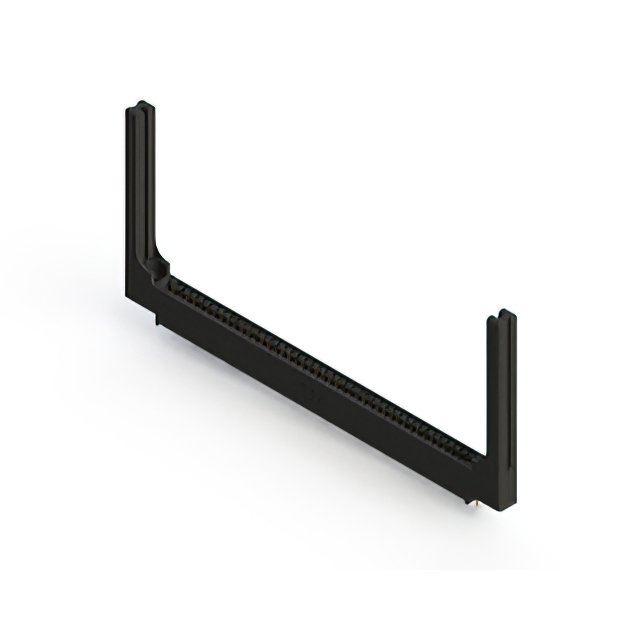

 EDAC Inc. | Polyester Thermoplastic | 1 | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 45 | Gold | Non Specified - Single Edge | 45 | Cantilever | Solder | 1 | Black | 3.18 mm | 0.125 in | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | 0.25 Ám | 10 Áin | Through Hole | Single | Card Guides |
