R85049 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

CONN BACKSHELL BANDING SZ17 E

Part	Type	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Includes	Shell Size - Insert	Material	Features	Cable Opening [custom]	Cable Opening [custom]	Plating	Shielding	Color	Cable Exit	For Use With/Related Products	Diameter - Outside [diameter]	Shell Size - Insert	Grade	Accessory Type	Qualification	Cable Opening [diameter]	Cable Opening [diameter]

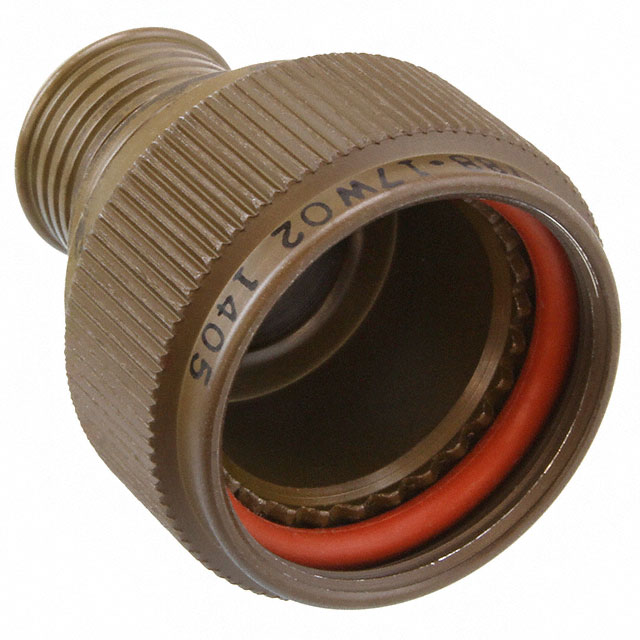

TE Connectivity Aerospace, Defense and Marine R85049/88-17W02	Backshell Banding	1.406 in	35.71 mm	1 Backshell 1 O-Ring	17 E	Aluminum	Self Locking	12.7 mm	0.5 in	Cadmium	Shielded	Olive Drab	180 °	MIL-DTL-38999 Series III IV
TE Connectivity Aerospace, Defense and Marine R85049/89-23Z03

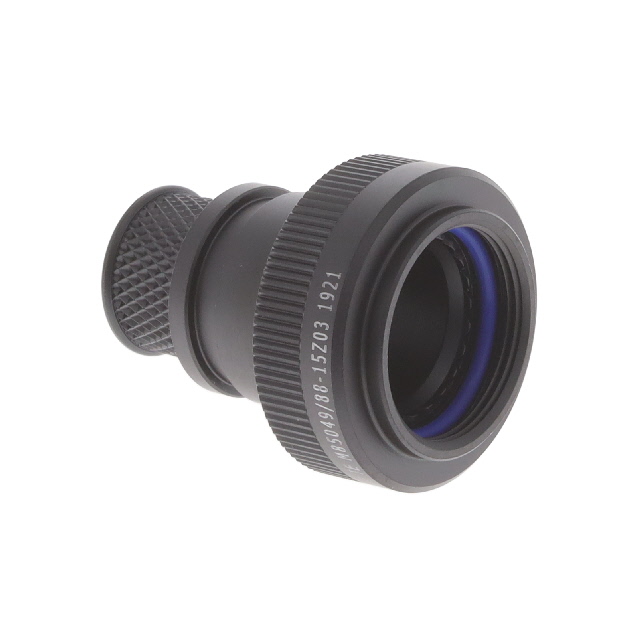

TE Connectivity Aerospace, Defense and Marine R85049/88-15Z03	Backshell Banding	32.49 mm		1 Backshell 1 O-Ring	D	Aluminum	Self Locking	14.27 mm	0.562 in	Zinc Nickel	Shielded	Black	180 °	MIL-DTL-38999 Series III IV	1.279 in	15
TE Connectivity Aerospace, Defense and Marine R85049/89-17Z03
TE Connectivity Aerospace, Defense and Marine R85049/85-16Z02
TE Connectivity Aerospace, Defense and Marine R85049/93-12														Banding Backshells and Braid Socks		12	Military	Banding Split-Ring	SAE AS 85049

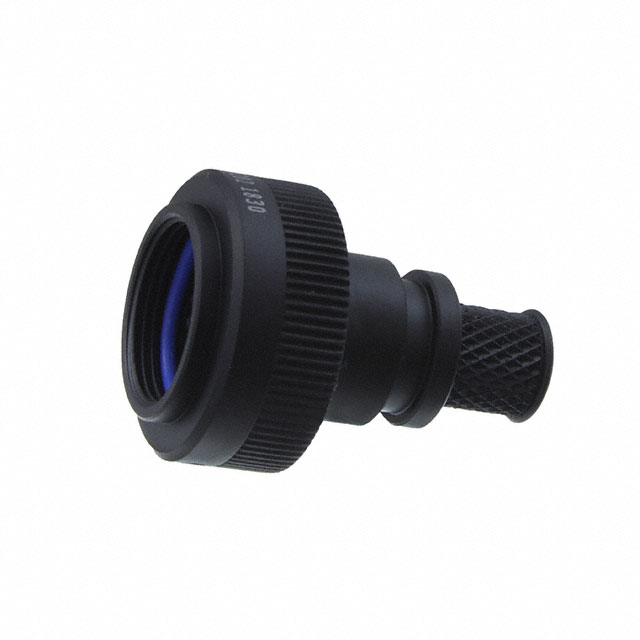

TE Connectivity Aerospace, Defense and Marine R85049/88-13Z02	Backshell Banding	29.39 mm			C	Aluminum	Self Locking	7.92 mm	0.312 in	Zinc Nickel	Shielded	Black	180 °	MIL-DTL-38999 Series III IV	1.157 "

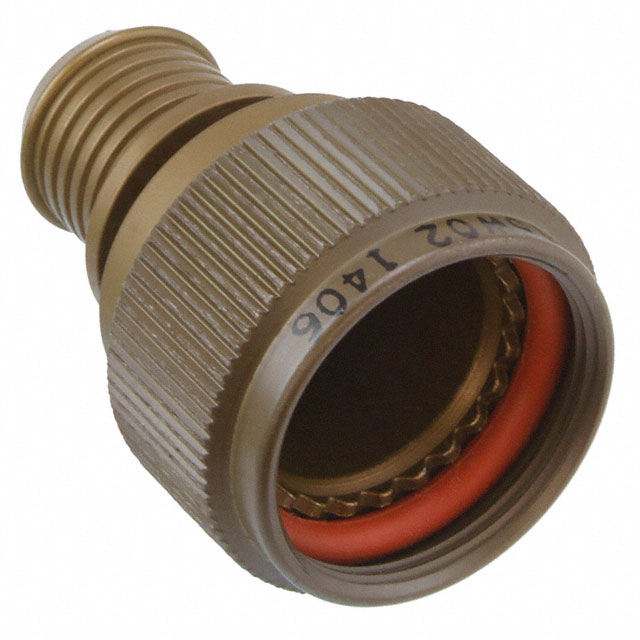

TE Connectivity Aerospace, Defense and Marine R85049/88-15W02	Backshell Banding	32.49 mm		1 Backshell 1 O-Ring	D	Aluminum	Self Locking			Cadmium	Shielded	Olive Drab	180 °	MIL-DTL-38999 Series III IV	1.279 in	15				0.438 in	11.12 mm

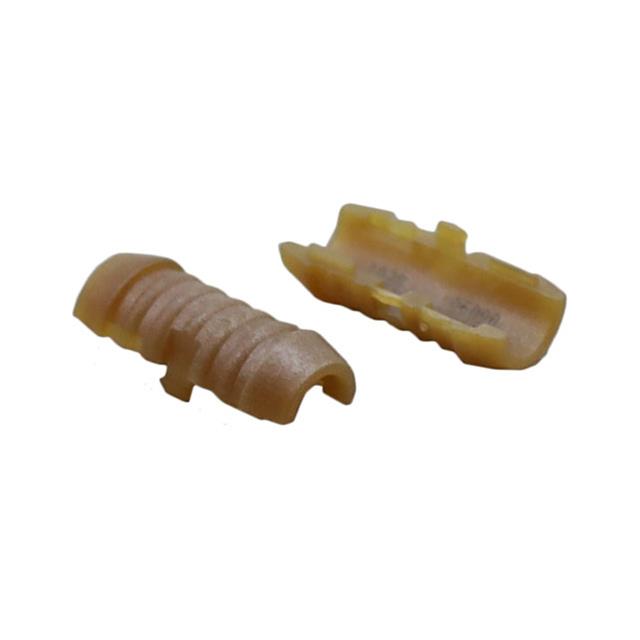

TE Connectivity Aerospace, Defense and Marine R85049/93-04														Banding Backshells and Braid Socks		4	Military	Banding Split-Ring	SAE AS 85049

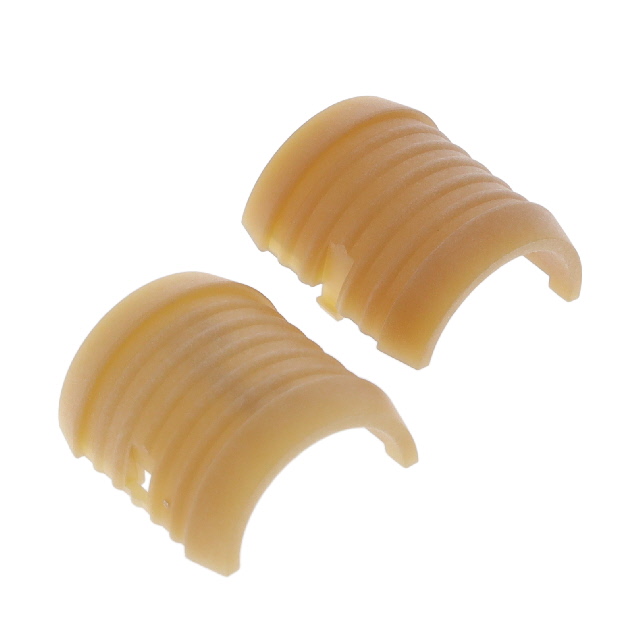

TE Connectivity Aerospace, Defense and Marine R85049/93-10														Banding Backshells and Braid Socks		10	Military	Banding Split-Ring	SAE AS 85049
