W1S141-27 Series
Manufacturer: Rosenberger
Beta
⌘K

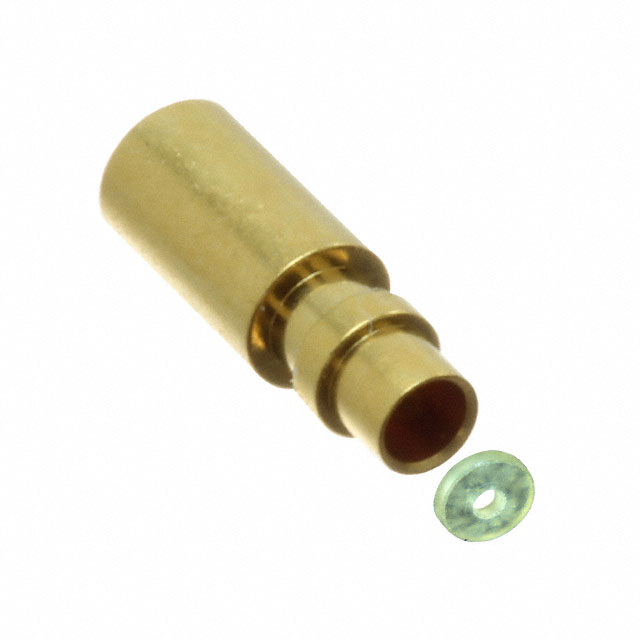

CONN WSMP PLUG STR 50OHM SOLDER
| Part | Mating Cycles | Body Finish | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Cable Group | Frequency - Max [Max] | Impedance | Mounting Type | Connector Style | Fastening Type | Center Contact Material | Contact Termination | Shield Termination | Features | Connector Type | Housing Color | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 500 | Gold | Beryllium Copper | -55 C | 165 °C | Gold | 0.047 in | 100 GHz | 50 Ohms | Free Hanging (In-Line) | WSMP | Snap-On | Beryllium Copper | Solder | Solder | Smooth Bore | Plug Male Pin | Gold | 1 |
