TR9CI750 Series

Catalog

AC/DC DESKTOP ADAPTER 24V 18W

Part	Voltage - Output	Applications	Form	Operating Temperature [Min]	Operating Temperature [Max]	Input Type	Cord Length	Cord Length	Power (Watts)	No Load Power Consumption	Output Connector [x]	Output Connector	Output Connector [diameter]	Input Connector	Approval Agency	Efficiency	Polarization	Region Utilized	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Standard Number
GlobTek, Inc. TR9CI750CRLPCIM(R6B)	24 V	Household Appliances ITE (Commercial) Medical	Desktop (Class I)	-20 ░C	40 °C	Cord (Sold Separately)	1.5 m	59 in	18 W	75 mW	13.8 mm	Barrel Plug	2.1 mm 5.5 mm	IEC 320-C14	BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UkrSEPRO UL VCCI	CoC Tier 2 Level VI	Positive Center	International	264 VAC	90 VAC	3.43 "	1.83 in	32 mm	1.26 "	46.5 mm	87 mm	750 mA
GlobTek, Inc. TR9CI750T00-IMR6B	24 V	Household Appliances ITE (Commercial) Medical	Desktop (Class I)	-20 ░C	40 °C	Cord (Sold Separately)	1.5 m	59 in	18 W	75 mW		Barrel Plug Kit (1.3mm x 3.5mm		IEC 320-C14	BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UkrSEPRO UL VCCI	Level VI		International	264 VAC	90 VAC	3.43 "	1.85 in		1.26 "		87 mm	750 mA	47 mm	32 mm	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1

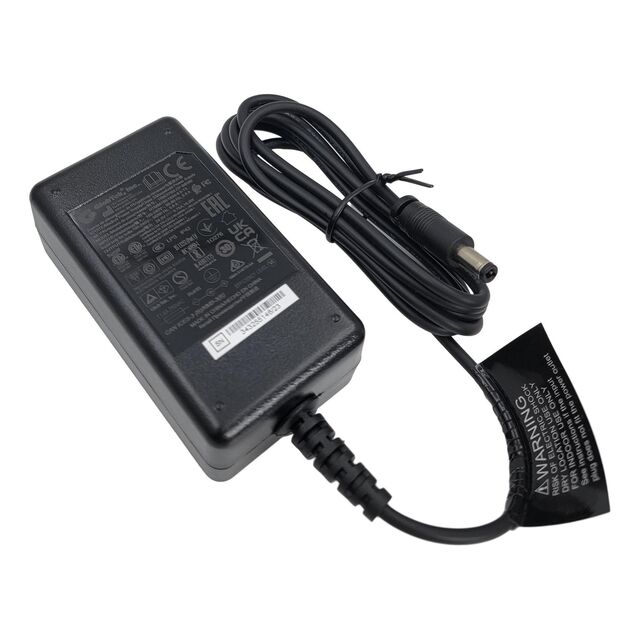

GlobTek, Inc. TR9CI750LCP-IMR6B	24 V	Household Appliances ITE (Commercial) Medical	Desktop (Class I)	-20 ░C	40 °C	Cord (Sold Separately)	1.53 m	60.2 in	18 W	75 mW	11 mm	Barrel Plug	2.5 mm 5.5 mm	IEC 320-C14	BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UkrSEPRO UL VCCI	Level VI	Positive Center	International	264 VAC	90 VAC	3.43 "	1.85 in		1.26 "		87 mm	750 mA	47 mm	32 mm	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1
