160077 Series
Manufacturer: Molex
Beta
⌘K

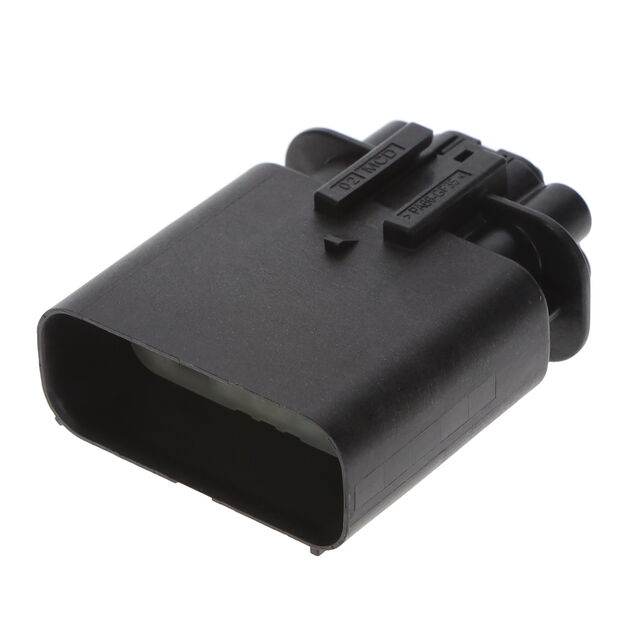

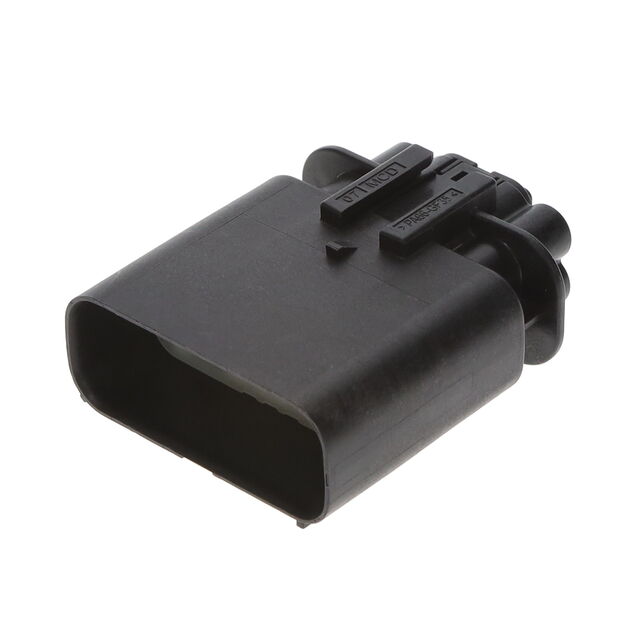

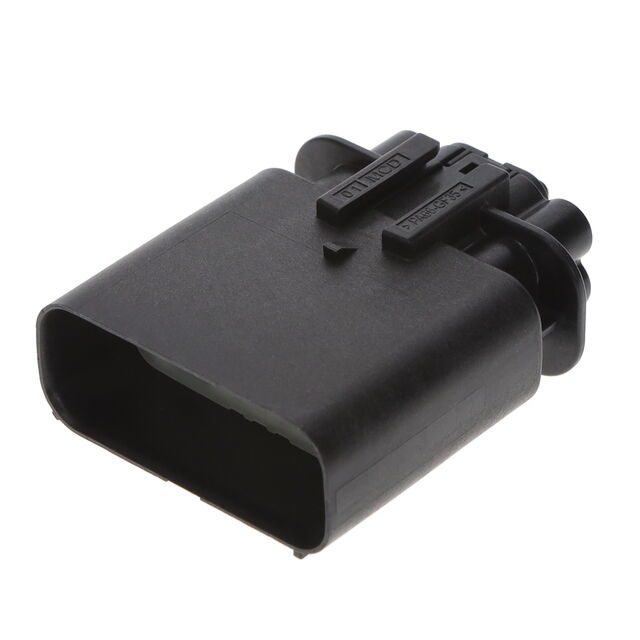

MX150 HYBRID MAT-SEALED MALE CONNECTOR ASSEMBLY, DUAL ROW, 10 CIRCUITS, KEYING OPTION A, POSITIONS 9 AND 10 BLOCKED, BLACK
| Part | Number of Rows [custom] | Contact Type | Insulation Material | Pitch | Pitch | Connector Type | Contact Termination | Mounting Type | Color | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Number of Positions [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 2 | Blade Pin | Glass Filled Nylon 6/6 Polyamide (PA66) | 3.5 mm | 0.138 " | Plug | Crimp | Free Hanging (In-Line) | Black | -55 C | 125 °C | Locking Ramp | 6 | 4 |
 Molex | 2 | Blade Pin | Glass Filled Nylon 6/6 Polyamide (PA66) | 3.5 mm | 0.138 " | Plug | Crimp | Free Hanging (In-Line) | Black | -55 C | 125 °C | Locking Ramp | 6 | 4 |
 Molex | 2 | Blade Pin | Glass Filled Nylon 6/6 Polyamide (PA66) | 3.5 mm | 0.138 " | Plug | Crimp | Free Hanging (In-Line) | Black | -55 C | 125 °C | Locking Ramp | 6 | 4 |
 Molex | 2 | Blade Pin | Glass Filled Nylon 6/6 Polyamide (PA66) | 3.5 mm | 0.138 " | Plug | Crimp | Free Hanging (In-Line) | Black | -55 C | 125 °C | Locking Ramp | 6 | 4 |
 Molex | 2 | Blade Pin | Glass Filled Nylon 6/6 Polyamide (PA66) | 3.5 mm | 0.138 " | Plug | Crimp | Free Hanging (In-Line) | Black | -55 C | 125 °C | Locking Ramp | 6 | 4 |
 Molex | 2 | Blade Pin | Glass Filled Nylon 6/6 Polyamide (PA66) | 3.5 mm | 0.138 " | Plug | Crimp | Free Hanging (In-Line) | Gray | -55 C | 125 °C | Locking Ramp | 6 | 4 |
 Molex | 2 | Blade Pin | Glass Filled Nylon 6/6 Polyamide (PA66) | 3.5 mm | 0.138 " | Plug | Crimp | Free Hanging (In-Line) | Gray | -55 C | 125 °C | Locking Ramp | 6 | 4 |
 Molex | 2 | Blade Pin | Glass Filled Nylon 6/6 Polyamide (PA66) | 3.5 mm | 0.138 " | Plug | Crimp | Free Hanging (In-Line) | Black | -55 C | 125 °C | Locking Ramp | 6 | 4 |
 Molex | 2 | Blade Pin | Glass Filled Nylon 6/6 Polyamide (PA66) | 3.5 mm | 0.138 " | Plug | Crimp | Free Hanging (In-Line) | Black | -55 C | 125 °C | Locking Ramp | 6 | 4 |
 Molex | 2 | Blade Pin | Glass Filled Nylon 6/6 Polyamide (PA66) | 3.5 mm | 0.138 " | Plug | Crimp | Free Hanging (In-Line) | Gray | -55 C | 125 °C | Locking Ramp | 6 | 4 |
