SSF-LXH534 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K
LED CBI 3X2MM QUAD BLU/GN/R/Y RA
| Part | Millicandela Rating [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] | Lens Type | Color | Viewing Angle | Configuration | Voltage Rating | Wavelength - Peak | Lens Size [y] | Lens Size [x] | Lens Style | Mounting Type | Current | Current | Millicandela Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | 80 mcd | 10 mcd | 10 mcd | 20 mcd | Diffused | Blue Green Red Yellow | 100 ° | 4 High | 2 V 2.1 V 2.2 V 3.5 V | 470 nm 565 nm 585 nm 635 nm | 2 mm | 3 mm | Rectangle with Flat Top | Right Angle Through Hole | 20mA Blue 20mA Green 20mA Red 20mA Yellow | ||
Lumex Opto/Components Inc. | Diffused | Green (x 3) Red (x 1) | 100 ° | 4 High | 2 V 2.2 V | 565 nm 635 nm | 2 mm | 3 mm | Rectangle with Flat Top | Right Angle Through Hole | 20 mA 20 mA | 10 mcd 20 mcd | |||||

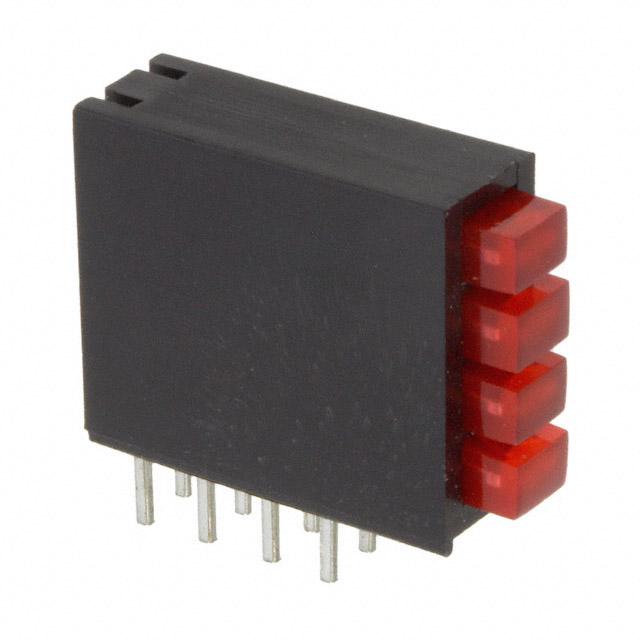

 Lumex Opto/Components Inc. | Diffused Tinted | Red (x 4) | 100 ° | 4 High | 2 V | 636 nm | 2 mm | 3 mm | Rectangle with Flat Top | Right Angle Through Hole | 30 mA | 120 mcd | |||||
Lumex Opto/Components Inc. | Diffused | Green | 100 ° | 4 High | 2 mm | 3 mm | Rectangle with Flat Top | Right Angle Through Hole | 25 mA | 30 mcd |
