FB10S011 Series

Catalog

CONN FPC BOTTOM 11POS 0.3MM R/A

Part	Contact Finish Thickness	Contact Finish Thickness	Housing Color	Mating Cycles	Actuator Color	Current Rating (Amps)	Housing Material	Cable End Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Contact Finish	FFC, FCB Thickness [custom]	Termination	Actuator Material	Voltage Rating	Number of Positions	Connector/Contact Type	Mounting Type	Flat Flex Type	Height Above Board [z]	Height Above Board [z]	Contact Material	Locking Feature

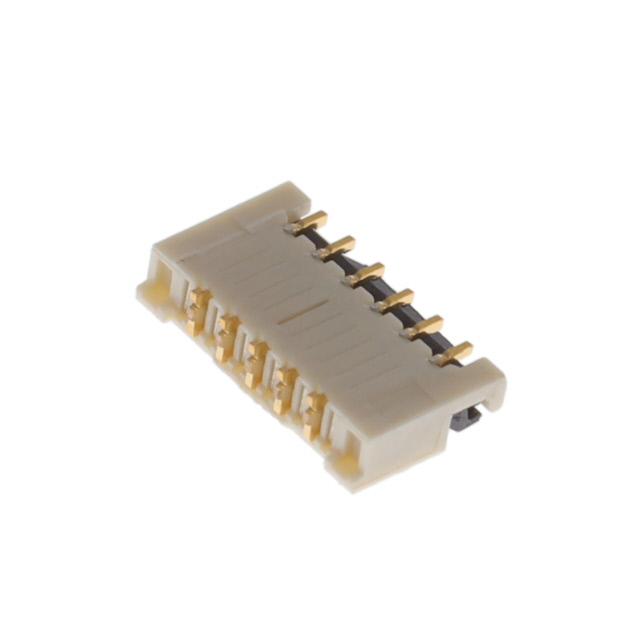

JAE Electronics FB10S011JT1R6000	1.25 Áin	0.03 Ám	White	20	Black	0.35 A	Plastic	Tabbed or Tapered	85 °C	-40 C	0.012 in	0.3 mm	Gold	0.2 mm	Solder	Plastic	50 V	11	Contacts Bottom	Right Angle Surface Mount	FPC	0.88 mm	0.035 in	Phosphor Bronze	Flip Lock
