D3SK Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH DETECT SPST-NC 0.001A 5V
| Part | Circuit | Operating Position [custom] | Operating Position [custom] | Voltage Rating - DC | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Electrical Life | Features | Current Rating (Amps) | Mechanical Life | Switch Function | Operating Force | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

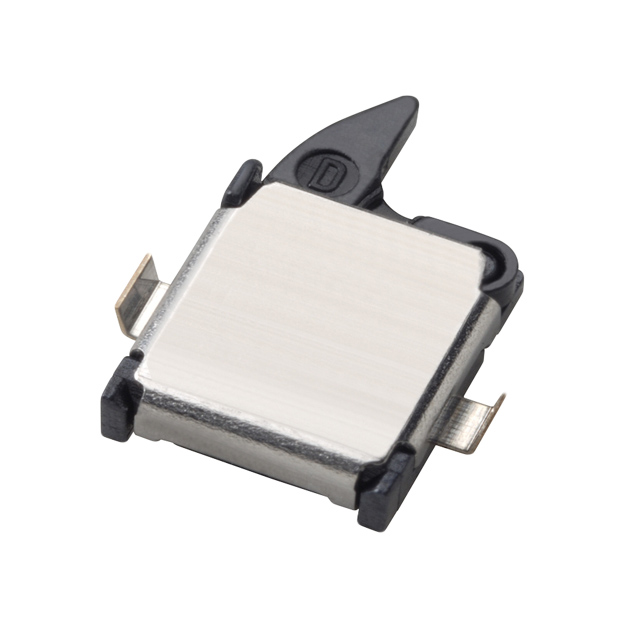

 Omron Electronics Inc-EMC Div | SPST-NC | 0.185 in | 4.7 mm | 5 V | Gull Wing | -25 °C | 85 °C | Angled Toggle (Detector) | 100000 Cycles | Left Operating Lever | 1 mA | 150000 Cycles | On-Mom | 41 gf | Surface Mount Right Angle |
Omron Electronics Inc-EMC Div | SPST-NO | 0.185 in | 4.7 mm | 5 V | Gull Wing | -25 °C | 85 °C | Angled Toggle (Detector) | 100000 Cycles | Left Operating Lever | 1 mA | 150000 Cycles | Off-Mom | 41 gf | Surface Mount Right Angle |

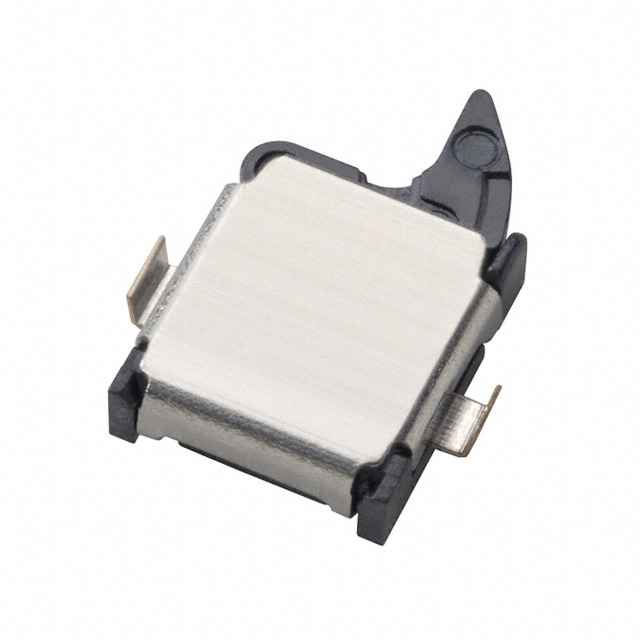

 Omron Electronics Inc-EMC Div | SPST-NO | 0.185 in | 4.7 mm | 5 V | Gull Wing | -25 °C | 85 °C | Angled Toggle (Detector) | 100000 Cycles | Right Operating Lever | 1 mA | 150000 Cycles | Off-Mom | 41 gf | Surface Mount Right Angle |
Omron Electronics Inc-EMC Div | SPST-NC | 0.185 in | 4.7 mm | 5 V | Gull Wing | -25 °C | 85 °C | Angled Toggle (Detector) | 100000 Cycles | Right Operating Lever | 1 mA | 150000 Cycles | On-Mom | 41 gf | Surface Mount Right Angle |
 Omron Electronics Inc-EMC Div | SPST-NC | 0.185 in | 4.7 mm | 5 V | Gull Wing | -25 °C | 85 °C | Angled Toggle (Detector) | 100000 Cycles | Board Guide Right Operating Lever | 1 mA | 150000 Cycles | On-Mom | 41 gf | Surface Mount Right Angle |
Omron Electronics Inc-EMC Div | SPST-NC | 0.185 in | 4.7 mm | 5 V | Gull Wing | -25 °C | 85 °C | Angled Toggle (Detector) | 100000 Cycles | Right Operating Lever | 1 mA | 150000 Cycles | On-Mom | 41 gf | Surface Mount Right Angle |
Omron Electronics Inc-EMC Div | SPST-NO | 0.185 in | 4.7 mm | 5 V | Gull Wing | -25 °C | 85 °C | Angled Toggle (Detector) | 100000 Cycles | Left Operating Lever | 1 mA | 150000 Cycles | Off-Mom | 41 gf | Surface Mount Right Angle |
Omron Electronics Inc-EMC Div | SPST-NO | 0.185 in | 4.7 mm | 5 V | Gull Wing | -25 °C | 85 °C | Angled Toggle (Detector) | 100000 Cycles | Right Operating Lever | 1 mA | 150000 Cycles | Off-Mom | 41 gf | Surface Mount Right Angle |
Omron Electronics Inc-EMC Div | SPST-NO | 0.185 in | 4.7 mm | 5 V | Gull Wing | -25 °C | 85 °C | Angled Toggle (Detector) | 100000 Cycles | Board Guide Right Operating Lever | 1 mA | 150000 Cycles | Off-Mom | 41 gf | Surface Mount Right Angle |
Omron Electronics Inc-EMC Div | SPST-NC | 0.185 in | 4.7 mm | 5 V | Gull Wing | -25 °C | 85 °C | Angled Toggle (Detector) | 100000 Cycles | Left Operating Lever | 1 mA | 150000 Cycles | On-Mom | 41 gf | Surface Mount Right Angle |
