A2F1ASQ Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY AUTOMOTIVE SPST 40A 24V
| Part | Contact Material | Coil Power | Coil Resistance | Termination Style | Contact Rating (Current) | Coil Voltage | Coil Current | Operate Time | Release Time | Contact Form | Features | Mounting Type | Must Release Voltage | Switching Voltage [Max] | Must Operate Voltage | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

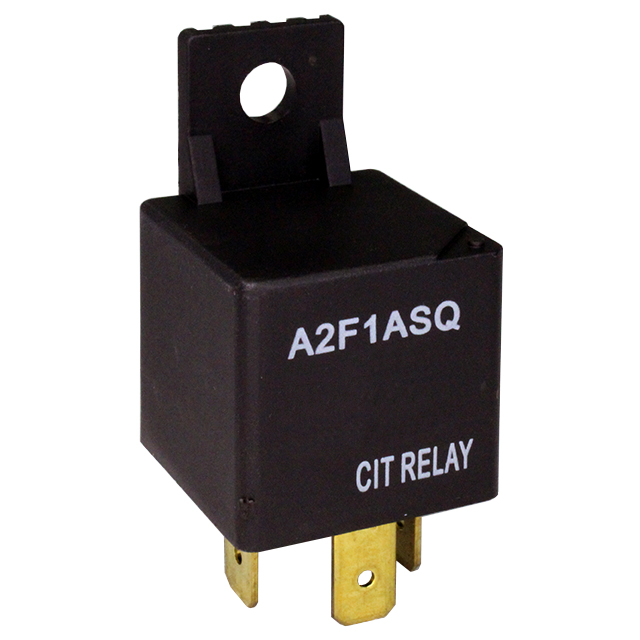

 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 1.6 W | 360 Ohms | Quick Connect - 0.250" (6.3mm) | 40 A | 24 VDC | 66.7 mA | 7 ms | 5 ms | SPST-NO (1 Form A) | Sealed - Fully | Chassis Mount | 2.4 VDC | 75 VDC | 16.8 VDC | Non Latching | 125 °C | -40 C |

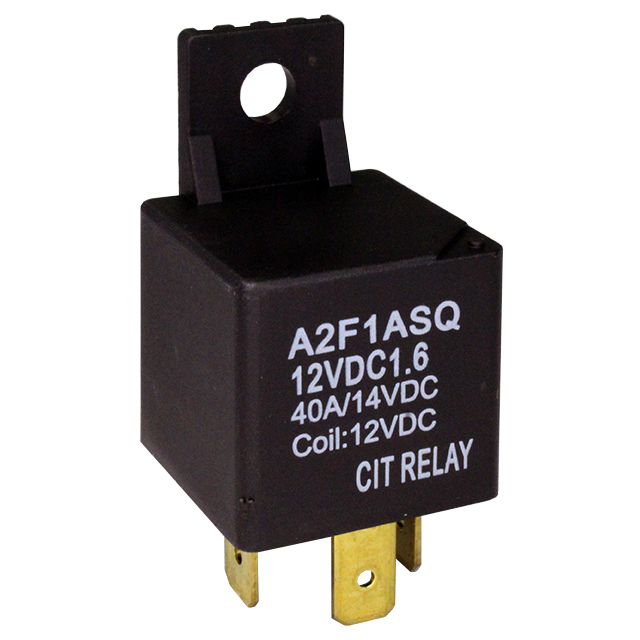

 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 1.6 W | 90 Ohms | Quick Connect - 0.250" (6.3mm) | 40 A | 12 VDC | 133.3 mA | 7 ms | 5 ms | SPST-NO (1 Form A) | Diode Sealed - Fully | Chassis Mount | 1.2 VDC | 75 VDC | 8.4 VDC | Non Latching | 125 °C | -40 C |
 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 1.6 W | 90 Ohms | Quick Connect - 0.250" (6.3mm) | 40 A | 12 VDC | 133.3 mA | 7 ms | 5 ms | SPST-NO (1 Form A) | Resistor Sealed - Fully | Chassis Mount | 1.2 VDC | 75 VDC | 8.4 VDC | Non Latching | 125 °C | -40 C |
