0.50mm Pitch Easy-On FFC/FPC Connector, 1.20mm Height, Right-Angle, Surface Mount, ZIF, Top Contact Style, 20 Circuits, Gold (Au) Contact Plating
0.50mm Pitch Easy-On FFC/FPC Connector, 1.20mm Height, Right-Angle, Surface Mount, ZIF, Top Contact Style, 20 Circuits, Gold (Au) Contact Plating
0.50mm Pitch Easy-On FFC/FPC Connector, 1.20mm Height, Right-Angle, Surface Mount, ZIF, Top Contact Style, 20 Circuits, Gold (Au) Contact Plating
| Part | Flat Flex Type | Pitch [x] | Pitch [x] | Mating Cycles | Current Rating (Amps) | Locking Feature | Actuator Material | Material Flammability Rating | Contact Material | Contact Finish | Voltage Rating | Cable End Type | Height Above Board | Height Above Board | Connector/Contact Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | FFC, FCB Thickness | Number of Positions | Termination | Housing Material | Features | Housing Color | Actuator Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | |||||||||||||||||||||||||||

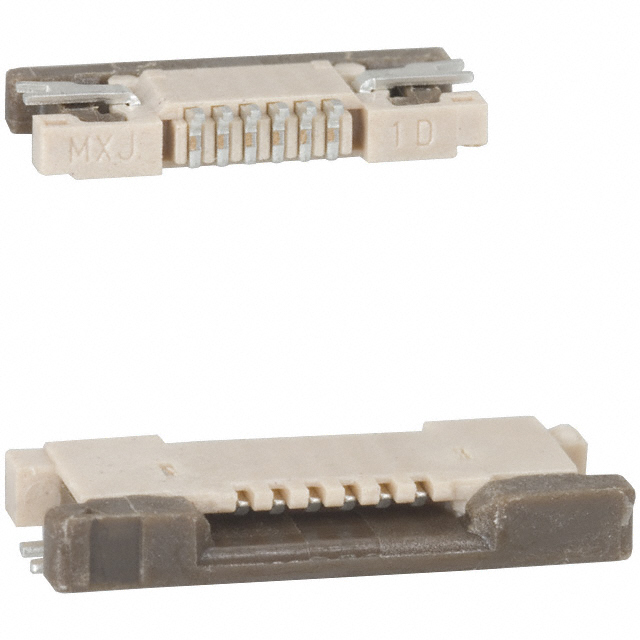

 Molex | FFC FPC | 0.5 mm | 0.02 in | 20 | 0.5 A | Slide Lock | Polyphenylene Sulfide (PPS) | UL94 V-0 | Phosphor Bronze | Tin Bismuth | 50 V | Straight Tapered | 0.047 " | 1.2 mm | Contacts Top | Surface Mount Right Angle | 85 °C | -20 C | 8 çin | 0.203 çm | 0.3 mm | 6 | Solder | Liquid Crystal Polymer (LCP) | Solder Retention Zero Insertion Force (ZIF) | ||

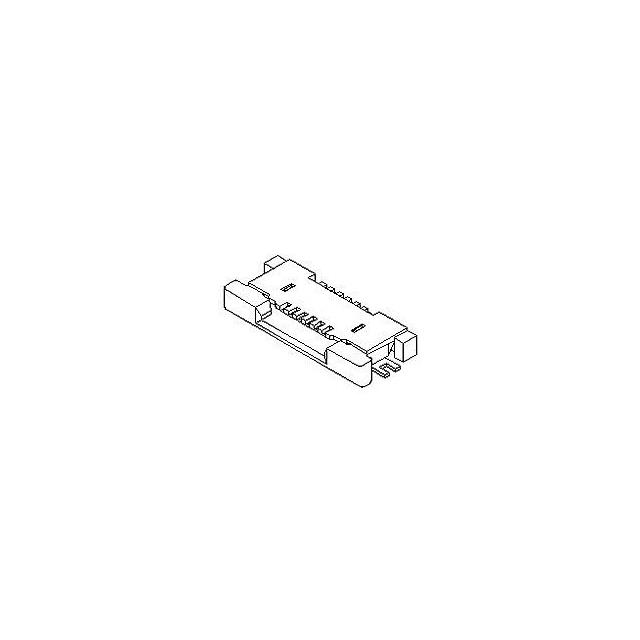

 Molex | FFC FPC | 0.5 mm | 0.02 in | 0.5 A | Slide Lock | Polyphenylene Sulfide (PPS) Glass Filled | UL94 V-0 | Phosphor Bronze | Tin Bismuth | 50 V | Straight Tapered | 0.047 " | 1.2 mm | Contacts Top | Surface Mount Right Angle | 85 °C | -40 °C | 39.4 Áin | 1 Ám | 0.3 mm | 24 | Solder | Liquid Crystal Polymer (LCP) Glass Filled | Solder Retention Zero Insertion Force (ZIF) | White | Brown |
