13282-18P Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

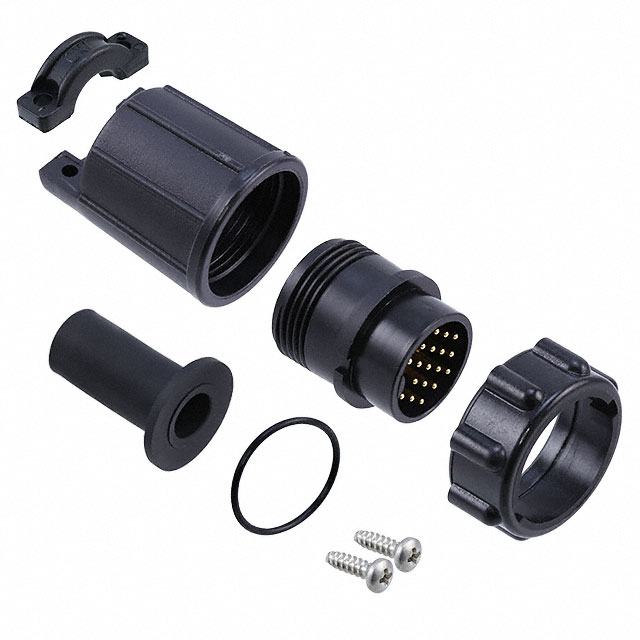

CIRCULAR CONNECTOR, MAXI-CON-X SERIES, CABLE MOUNT PLUG, 18 CONTACTS, SOLDER PIN
| Part | Ingress Protection | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Voltage Rating | Color | Fastening Type | Contact Finish - Mating | Shielding | Number of Positions | Contact Material | Primary Material | Backshell Material, Plating | Orientation | Connector Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Features | Cable Opening [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Weathertight | 5.33 mm | 0.25 in | 0.21 in | 6.35 mm | 600 V | Black | Bayonet Lock | Gold | Unshielded | 18 | Brass | Plastic | Nylon Polyamide (PA) | Keyed | Plug Male Pins | Free Hanging (In-Line) | 115 °C | -40 C | Backshell Cable Clamp | |
 SWITCHCRAFT/CONXALL | Weathertight | 6.6 mm | 0.3 " | 0.26 " | 600 V | Black | Bayonet Lock | Gold | Unshielded | 18 | Brass | Plastic | Nylon Polyamide (PA) | Keyed | Plug Male Pins | Free Hanging (In-Line) | 115 °C | -40 C | Backshell Cable Clamp | 7.62 mm |
