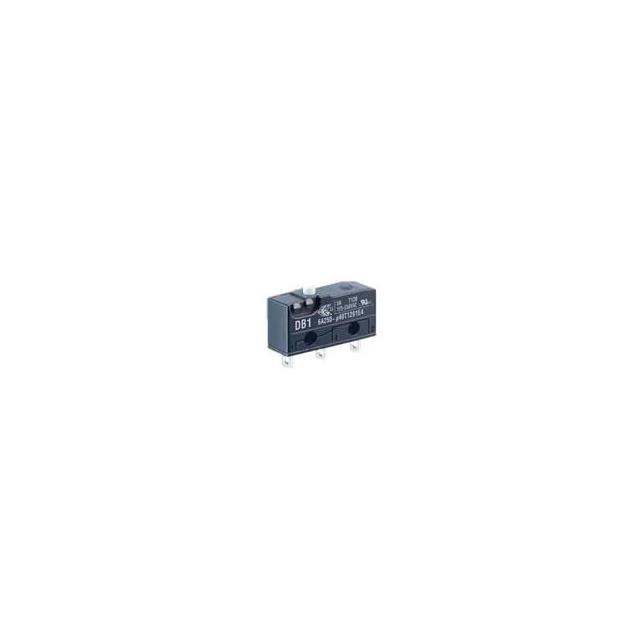

DB2C-A1 Series
Manufacturer: ZF Electronics
Beta
⌘K
SWITCH SNAP ACTION SPDT 10A 125V
| Part | Ingress Protection | Differential Travel | Differential Travel | Switch Function | Current Rating (Amps) | Operating Position | Operating Position | Mechanical Life | Circuit | Pretravel | Pretravel | Operating Force | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Termination Style | Actuator Type | Electrical Life | Overtravel [custom] | Overtravel [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ZF Electronics | IP50 - Dust Protected | 1 mm 1.02 mm | 0.04 in | On-Mom | 10 A | 16.2 mm | 0.638 in | 10000000 Cycles | SPDT | 5 mm | 0.197 " | 95 gf | Chassis Mount | 120 °C | -40 C | 125 V | Solder Lug | Lever Roller | 6000 Cycles | 0.06 " | 1.5 mm |
