109P0524 Series

Catalog

FAN AXIAL 52X15MM 24VDC WIRE

Part	Material - Blade	Material - Frame	Lifetime @ Temp.	Air Flow	Air Flow	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Bearing Type	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Fan Type	Approval Agency	Power (Watts)	Width [y]	Noise	Static Pressure	Static Pressure	Weight [custom]	Weight [custom]	Termination	RPM	Voltage - Rated	Features
Sanyo Denki America Inc. 109P0524A702	Plastic	Plastic	40000 Hrs	0.37 m³/min	13.2 CFM	27.6 VDC	14	110 mA	Ball	Square	52 mm	52 mm	60 °C	60 °C	-4 °F	-20 ░C	Tubeaxial	CSA TUV UL	2.64 W	15 mm	36 dB	0.28 in H2O	69.7 Pa	0.122 lb	55.34 g	2 Wire Leads	6800 RPM	24 VDC
Sanyo Denki America Inc. 109P0524H701	Plastic	Plastic		0.252 m³/min	9 CFM	27.6 VDC	14	50 mA	Ball	Square	52 mm	52 mm		70 °C		-20 ░C	Tubeaxial	CSA TUV UL	1.2 W	15 mm	27 dB(A)	0.128 in H2O	31.8 Pa	0.122 lb	55.34 g	3 Wire Leads	4600 RPM	24 VDC	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109P0524M701	Plastic	Plastic		0.202 mł/min	7.2 CFM	27.6 VDC	14	40 mA	Ball	Square	52 mm	52 mm		70 °C		-20 ░C	Tubeaxial	CSA TUV UL	960 mW	15 mm	22 dB(A)	0.086 in H2O	21.5 Pa	0.122 lb	55.34 g	3 Wire Leads	3700 RPM	24 VDC	Locked Rotor Protection Speed Sensor (Tach)

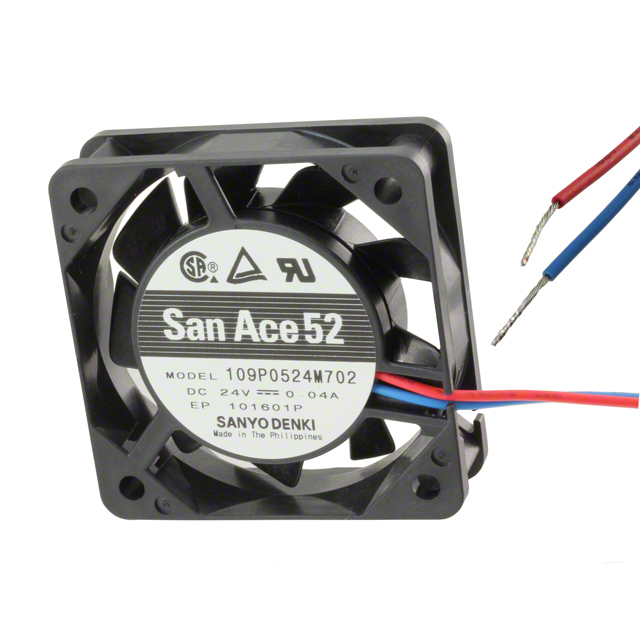

Sanyo Denki America Inc. 109P0524M702	Plastic	Plastic		0.202 mł/min	7.2 CFM	27.6 VDC	14	40 mA	Ball	Square	52 mm	52 mm		70 °C		-20 ░C	Tubeaxial	CSA TUV UL	960 mW	15 mm	22 dB(A)	0.086 in H2O	21.5 Pa	0.122 lb	55.34 g	2 Wire Leads	3700 RPM	24 VDC
Sanyo Denki America Inc. 109P0524A7D01	Plastic	Plastic	40000 Hrs	0.37 m³/min	13.2 CFM	27.6 VDC	14	110 mA	Ball	Square	52 mm	52 mm	60 °C	60 °C	-4 °F	-20 ░C	Tubeaxial	CSA TUV UL	2.64 W	15 mm	36 dB	0.28 in H2O	69.7 Pa	0.122 lb	55.34 g	3 Wire Leads	6800 RPM	24 VDC	Locked Rotor Sensor
