FL086 Series

Catalog

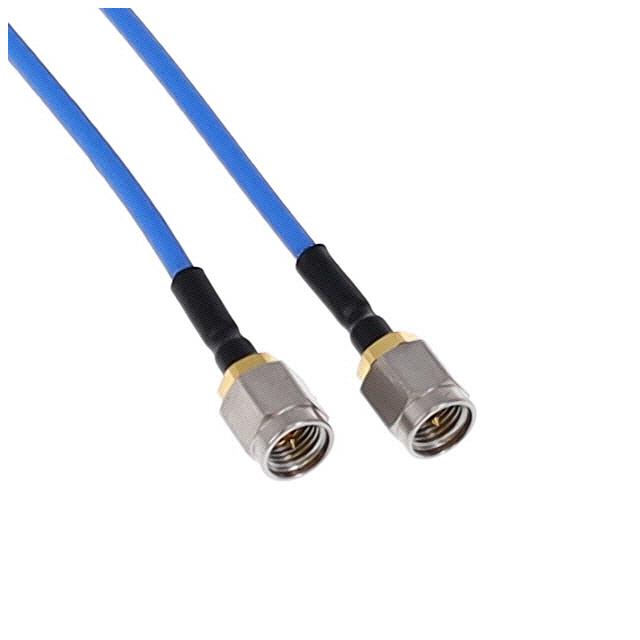

RF CABLE ASSEMBLIES FLEX BL CA KM/KM 6" ROHS

Part	1st Contact Gender	Frequency - Max [Max]	2nd Connector	1st Connector	Color	Length [x]	Length [x]	Cable Type	2nd Connector Mounting Type	Style [Max]	Style [Min]	2nd Contact Gender	Overall Impedance	Operating Temperature [Min]	Operating Temperature [Max]	1st Connector Mounting Type	Length	Length	2nd Connector	Cable Impedance	Style	1st Connector	Cable Type
Mini-Circuits FL086-6KM+	Male	40 GHz	2.92 mm	2.92 mm	Blue	152.4 mm	6 "	0.086" Flexible Cable	Free Hanging (In-Line)	2.92 mm	2.92 mm	Male	50 Ohms	-55 C	105 ░C	Free Hanging (In-Line)
Mini-Circuits FL086-3KM+	Male	40 GHz	2.92 mm	2.92 mm	Blue			0.086" Flexible Cable	Free Hanging (In-Line)	2.92 mm	2.92 mm	Male	50 Ohms	-55 C	105 ░C	Free Hanging (In-Line)	3 in	76.2 mm
Mini-Circuits FL086-4KM+	Male	40 GHz	2.92 mm	2.92 mm	Blue	101.6 mm	4 "	0.086" Flexible Cable	Free Hanging (In-Line)	2.92 mm	2.92 mm	Male	50 Ohms	-55 C	105 ░C	Free Hanging (In-Line)
Mini-Circuits FL086-24SM+	Male	18 GHz			Blue	609.6 mm	24 in	Semi-Rigid Cable	Free Hanging (In-Line)			Male		-55 C	105 ░C	Free Hanging (In-Line)			SMA Plug	50 Ohms	SMA to SMA	SMA Plug	0.086 in
Mini-Circuits FL086-12KM+	Male	40 GHz	2.92 mm	2.92 mm	Blue	304.8 mm	12 in	0.086" Flexible Cable	Free Hanging (In-Line)	2.92 mm	2.92 mm	Male	50 Ohms	-55 C	105 ░C	Free Hanging (In-Line)
