09360162 Series
Manufacturer: HARTING
Beta
⌘K
HAN 16E EX FEMALE CRIMP INSERT (IECEX INTRINSICALLY SAFE - IEC EN 60079)
| Part | Material Flammability Rating | Color | Housing Material | Contact Type | Size | Number of Positions | Current Rating (Amps) | Voltage Rating | Termination Style | Connector Type | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

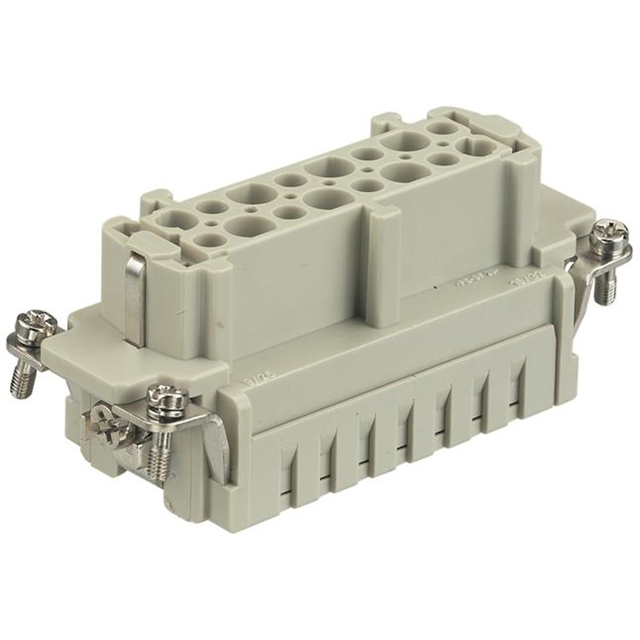

 HARTING | UL94 V-0 | Gray | Polycarbonate (PC) | Han® E | 16 B | 16+Ground | 16 A | 90 V | Crimp | Insert without Contacts | Female | -20 ░C | 40 °C | ||

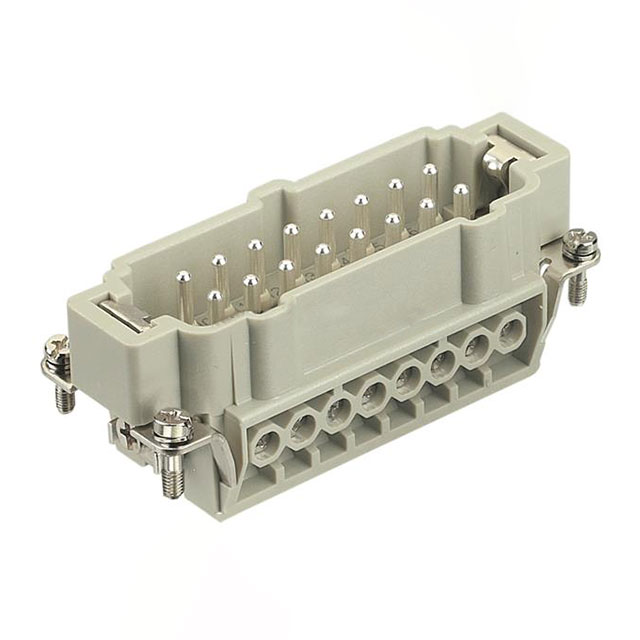

 HARTING | UL94 V-0 | Gray | Polycarbonate (PC) | 16 B | 16+Ground | 16 A | 90 V | Screw | Insert | Male | -20 ░C | 40 °C | Copper Alloy | Silver | |

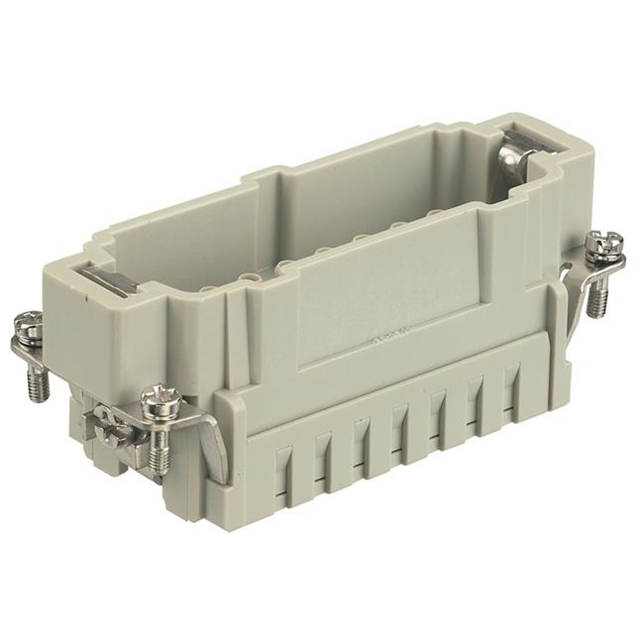

 HARTING | UL94 V-0 | Gray | Polycarbonate (PC) | Han® E | 16 B | 16+Ground | 16 A | 90 V | Crimp | Insert without Contacts | Male | -20 ░C | 40 °C | ||

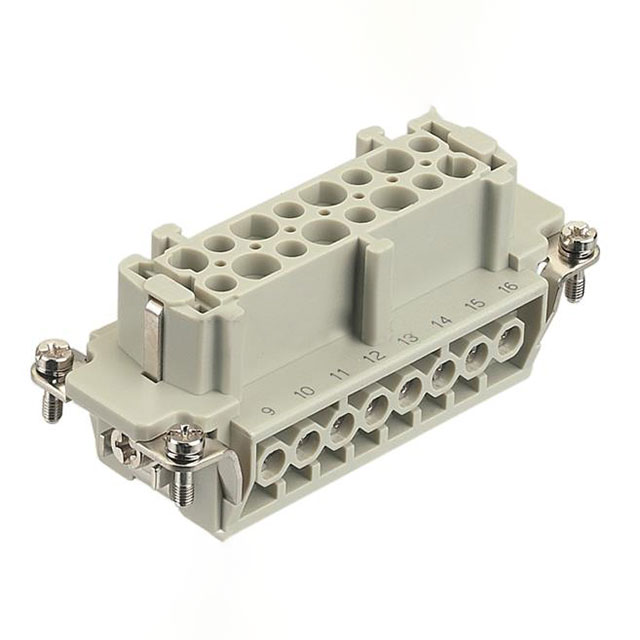

 HARTING | UL94 V-0 | Gray | Polycarbonate (PC) | 16 B | 16+Ground | 16 A | 90 V | Screw | Insert | Female | -20 ░C | 40 °C | Copper Alloy | Silver |
