HE-010 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
HEAVY DUTY CONNECTOR, HDC SERIES, INSERT, 10 CONTACTS, RECEPTACLE, SCREW SOCKET
| Part | Material Flammability Rating | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Termination Style | Voltage Rating | Gender | Current Rating (Amps) | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|

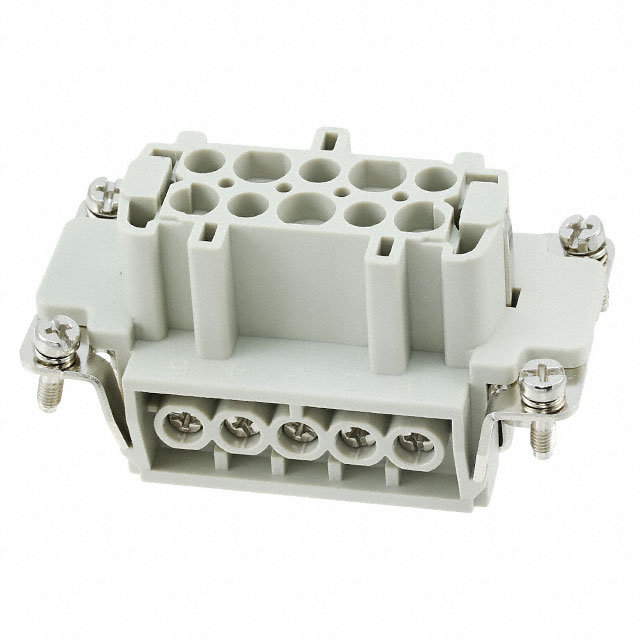

 TE Connectivity AMP Connectors | UL94 V-0 | Polycarbonate (PC) | 125 °C | -40 C | 10 | Screw | 500 V | Female | 16 A | Insert |

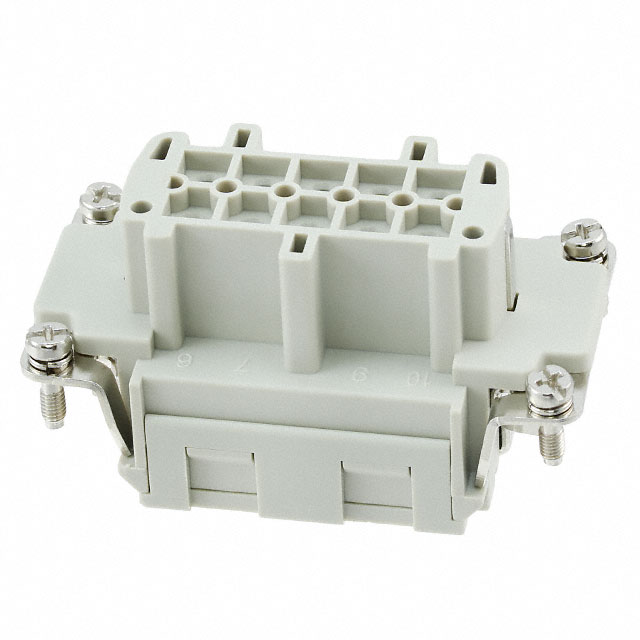

 TE Connectivity AMP Connectors | UL94 V-0 | Polycarbonate (PC) | 125 °C | -40 C | 10 | Tension Clamp | 500 V | Female | 16 A | Insert |

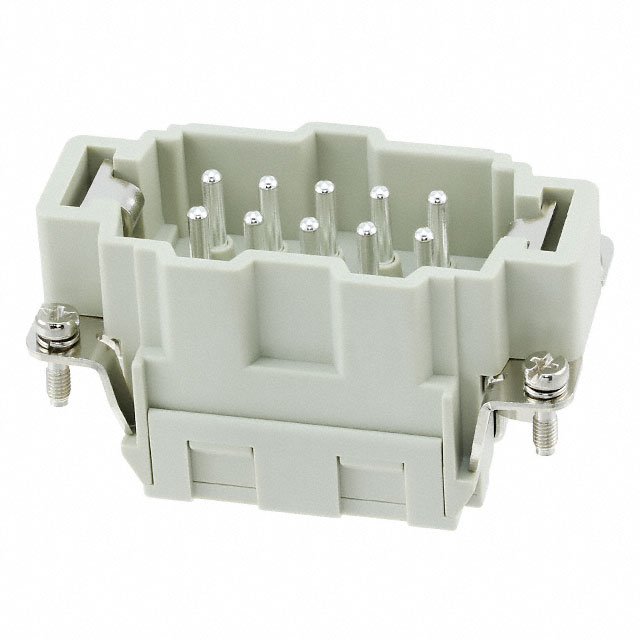

 TE Connectivity AMP Connectors | UL94 V-0 | Polycarbonate (PC) | 125 °C | -40 C | 10 | Tension Clamp | 500 V | Male | 16 A | Insert |
