209168 Series

Manufacturer: Molex

Catalog

SLIM STACK BOARD TO BOARD CONNECTOR

Part	Connector Type	Number of Rows	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Finish	Features	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch [x]	Mated Stacking Heights

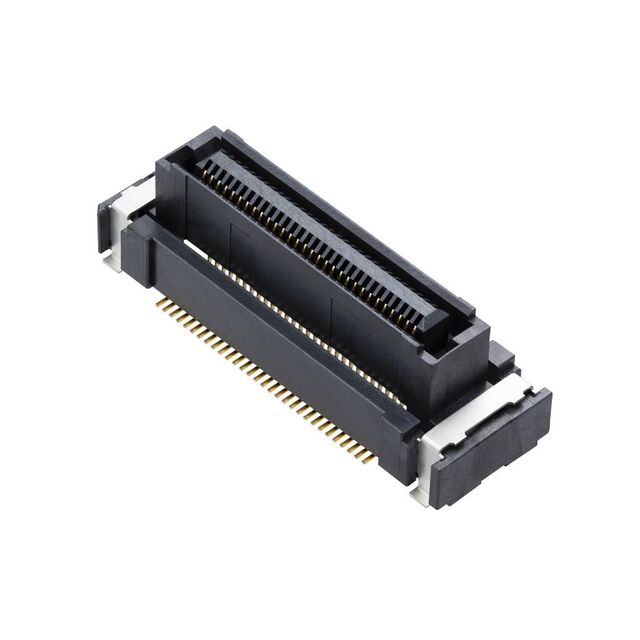

Molex 2091680601	Floating Receptacle	2	60	3.94 µin	0.1 Ám	Surface Mount	Gold	Board Guide Pick and Place Solder Retention	0.382 in	9.7 mm	0.026 in	0.65 mm	11 mm 12 mm 13 mm 14 mm 15 mm 16 mm

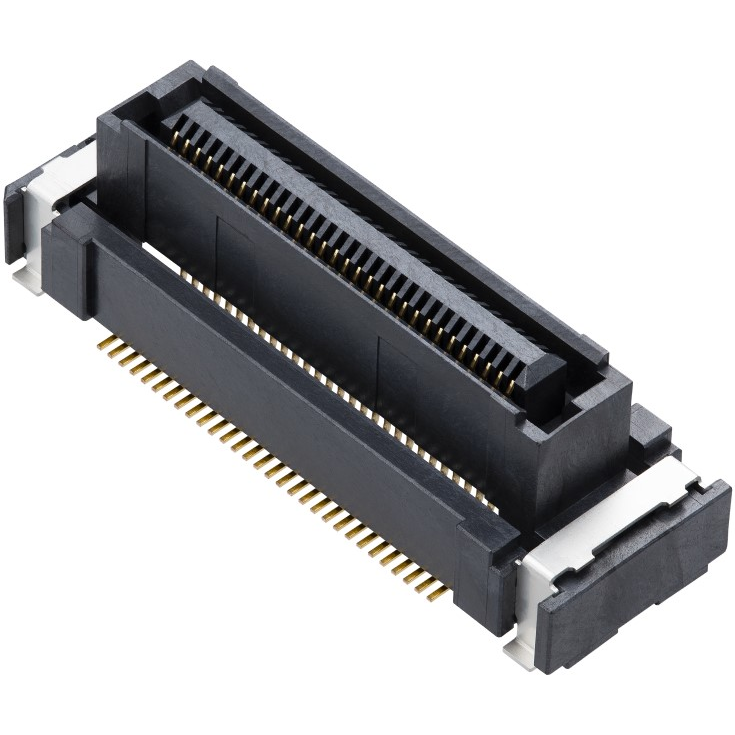

Molex 2091680801	Floating Receptacle	2	80	3.94 µin	0.1 Ám	Surface Mount	Gold	Board Guide Pick and Place Solder Retention	0.382 in	9.7 mm	0.026 in	0.65 mm	11 mm 12 mm 13 mm 14 mm 15 mm 16 mm
