AWVF Series

Catalog

POWER INDUCTORS - SMD CHILISIN POWER - INDUCTOR (IND) CLOSED MAGNETIC CIRCUIT TYPE - AUTOMATIC ASSEMBLY

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Saturation (Isat)	Ratings	Inductance	Mounting Type	Material - Core	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance Frequency - Test	Current Rating (Amps)	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR)	Supplier Device Package	Tolerance	Shielding	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Pulse Electronics AWVF003030124R7T00	3 mm	0.118 in	3 mm	0.118 "	1.56 A	AEC-Q200	4.7 ÁH	Surface Mount	Ferrite	1.2 mm	0.047 "	1 MHz	1.52 A	3030 Metric	1212	125 °C	-40 C	180 mOhm	1212	30 %	Shielded

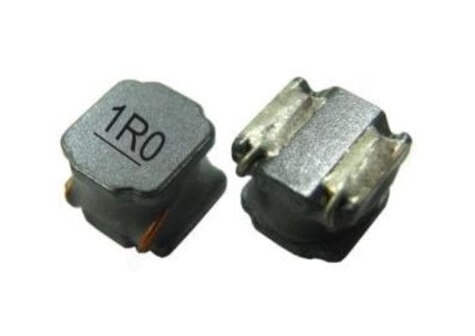

Pulse Electronics AWVF00808040150T00	8 mm	0.315 in	8 mm	0.315 in	4 A	AEC-Q200	15 µH	Surface Mount	Ferrite		0.165 "	100 kHz	3.2 A		3131 (8080 Metric)	125 °C	-40 C	57 mOhm	3131	30 %	Shielded	4.2 mm
Pulse Electronics AWVF002520121R2M00	2.5 mm	0.079 in	2 mm	0.098 in	2.1 A	AEC-Q200	1.2 µH	Surface Mount	Ferrite			1 MHz	2.35 A	2520 Metric	1008	125 °C	-40 C		1008	20 %	Shielded		1.25 mm	0.049 in
Pulse Electronics AWVF002520121R2T00	2.5 mm	0.079 in	2 mm	0.098 in	2.1 A	AEC-Q200	1.2 µH	Surface Mount	Ferrite			1 MHz	2.35 A	2520 Metric	1008	125 °C	-40 C		1008	30 %	Shielded		1.25 mm	0.049 in
Pulse Electronics AWVF00404012100M00	4 mm	0.157 "	4 mm	0.157 in	900 mA	AEC-Q200	10 µH	Surface Mount	Ferrite		0.051 in	1 MHz	1.2 A		1616 (4040 Metric)	125 °C	-40 C	190 mOhm	1616	20 %	Shielded	1.3 mm
Pulse Electronics AWVF00404026101M00	4 mm	0.157 "	4 mm	0.157 in	580 mA	AEC-Q200	100 µH	Surface Mount	Ferrite			100 kHz	0.5 A		1616 (4040 Metric)	125 °C	-40 C	1.38 Ohm	1616	20 %	Shielded
Pulse Electronics AWVF004040261R0T00	4 mm	0.157 "	4 mm	0.157 in	5 A	AEC-Q200	1 µH	Surface Mount	Ferrite			100 kHz	4 A		1616 (4040 Metric)	125 °C	-40 C	30 mOhm	1616	30 %	Shielded
Pulse Electronics AWVF00201612R47T00	2 mm	0.063 "	1.6 mm	0.079 in	2.7 A	AEC-Q200	470 nH	Surface Mount	Ferrite			1 MHz	2.3 A		0806 (2016 Metric)	125 °C	-40 C	51 mOhm	0806	30 %	Shielded		1.25 mm	0.049 in
Pulse Electronics AWVF00505020220T00	5 mm	0.197 "	5 mm	0.197 in	1.2 A	AEC-Q200	22 µH	Surface Mount	Ferrite	2.2 mm	0.087 in	100 kHz	1 A		2020 (5050 Metric)	125 °C	-40 C	265 mOhm	2020	30 %	Shielded
Pulse Electronics AWVF00404015R47M00	4 mm	0.157 "	4 mm	0.157 in	4 A	AEC-Q200	470 nH	Surface Mount	Ferrite			1 MHz	4.2 A		1616 (4040 Metric)	125 °C	-40 C	19 mOhm	1616	20 %	Shielded		1.7 mm	0.067 in
