TBP01R2 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

TERMINAL BLOCK, PLUGGABLE, 5.08,

Part	Voltage - IEC	Pitch	Pitch	Mounting Type	Header Orientation	Contact Tail Length	Contact Tail Length	Positions Per Level	Contact Material	Type	Contact Mating Finish	Number of Levels	Termination Style	Color	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Voltage - UL	Current - IEC	Number of Positions	Current - UL	Material Flammability Rating	Features	Positions Per Level [custom]

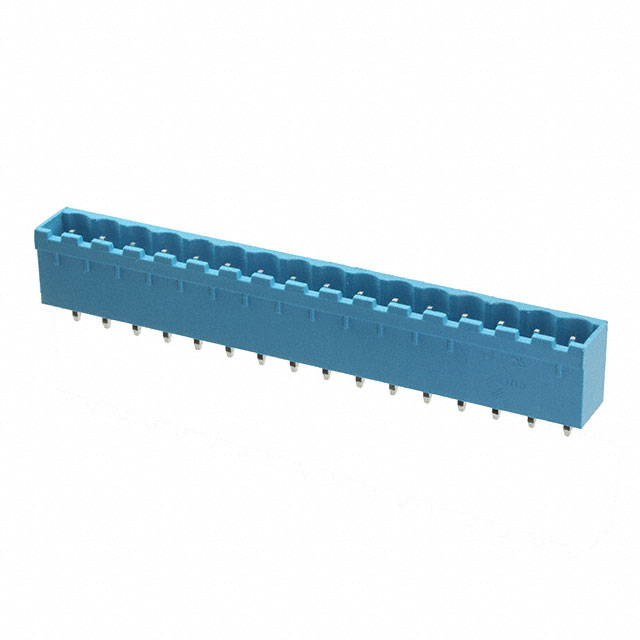

Same Sky (Formerly CUI Devices) TBP01R2-508-16BE	320 V	5.08 mm	0.2 in	Through Hole	Vertical	0.157 in	4 mm	16	Copper Alloy	Header Male Pins Shrouded (4 Side)	Tin	1	Solder	Blue	-40 C	105 ░C	0.472 "	12 mm	300 V	20 A	16	16 A	UL94 V-0
Same Sky (Formerly CUI Devices) TBP01R2W-508-03BE	320 V	5.08 mm	0.2 in	Through Hole	Vertical			3		Header Male Pins Shrouded (4 Side)	Tin	1	Solder	Blue	-40 C	105 ░C			300 V	20 A		16 A		Mating Flange

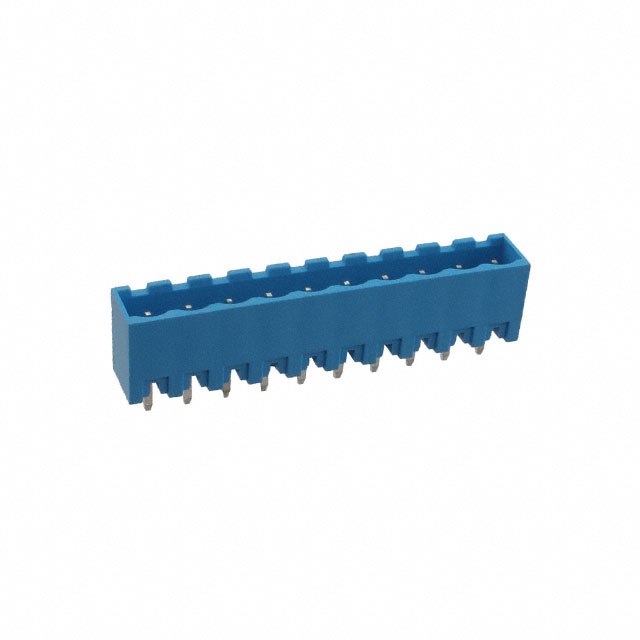

Same Sky (Formerly CUI Devices) TBP01R2-508-10BE	320 V	5.08 mm	0.2 in	Through Hole	Vertical			10		Header Male Pins Shrouded (4 Side)	Tin	1	Solder	Blue	-40 C	105 ░C			300 V	20 A	10	16 A
Same Sky (Formerly CUI Devices) TBP01R2-508-07BE	320 V	5.08 mm	0.2 in	Through Hole	Vertical	0.157 in	4 mm		Copper Alloy	Header Male Pins Shrouded (4 Side)	Tin	1	Solder	Blue	-40 C	105 ░C	0.472 "	12 mm	300 V	20 A	7	16 A	UL94 V-0		7
Same Sky (Formerly CUI Devices) TBP01R2-508-18BE	320 V	5.08 mm	0.2 in	Through Hole	Vertical	0.157 in	4 mm	18	Copper Alloy	Header Male Pins Shrouded (4 Side)	Tin	1	Solder	Blue	-40 C	105 ░C	0.472 "	12 mm	300 V	20 A	18	16 A	UL94 V-0
Same Sky (Formerly CUI Devices) TBP01R2-508-05BE	320 V	5.08 mm	0.2 in	Through Hole	Vertical	0.157 in	4 mm	5	Copper Alloy	Header Male Pins Shrouded (4 Side)	Tin	1	Solder	Blue	-40 C	105 ░C	0.472 "	12 mm	300 V	20 A	5	16 A	UL94 V-0
Same Sky (Formerly CUI Devices) TBP01R2W-508-04BE	320 V	5.08 mm	0.2 in	Through Hole	Vertical	0.157 in	4 mm	4	Copper Alloy	Header Male Pins Shrouded (4 Side)	Tin	1	Solder	Blue	-40 C	105 ░C	0.472 "	12 mm	300 V	20 A	4	16 A	UL94 V-0	Mating Flange

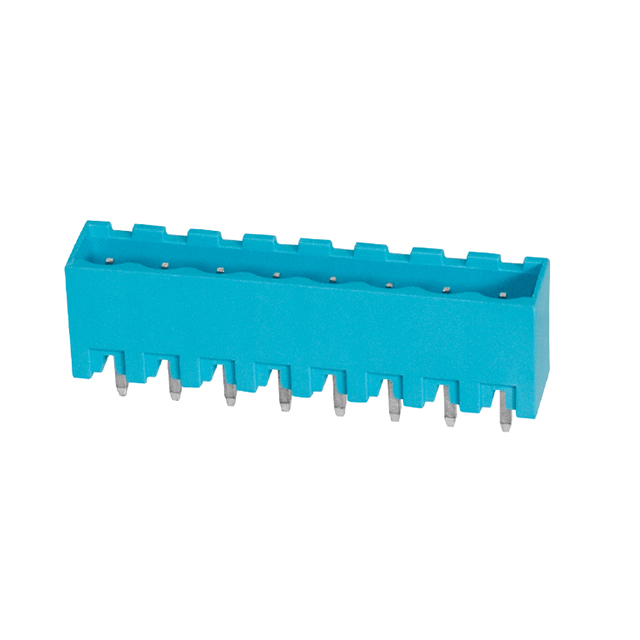

Same Sky (Formerly CUI Devices) TBP01R2-508-08BE	320 V	5.08 mm	0.2 in	Through Hole	Vertical			8		Header Male Pins Shrouded (4 Side)	Tin	1	Solder	Blue	-40 C	105 ░C			300 V	20 A	8	16 A

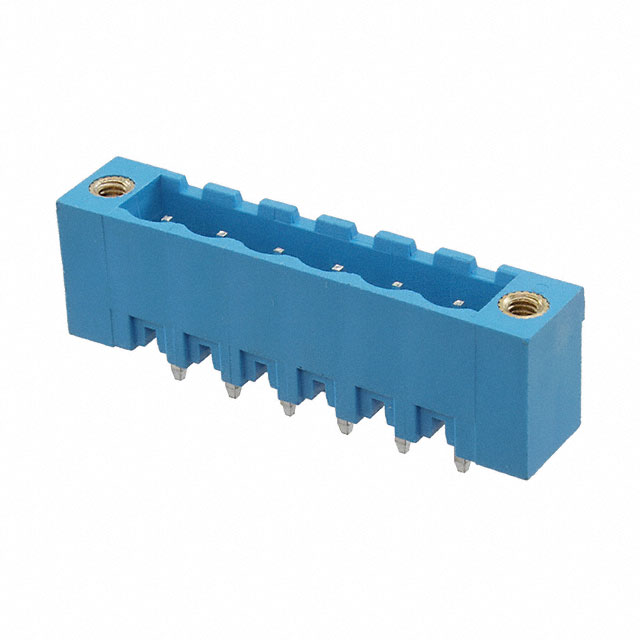

Same Sky (Formerly CUI Devices) TBP01R2W-508-06BE	320 V	5.08 mm	0.2 in	Through Hole	Vertical	0.157 in	4 mm	6	Copper Alloy	Header Male Pins Shrouded (4 Side)	Tin	1	Solder	Blue	-40 C	105 ░C	0.472 "	12 mm	300 V	20 A	6	16 A	UL94 V-0	Mating Flange
Same Sky (Formerly CUI Devices) TBP01R2W-508-05BE	320 V	5.08 mm	0.2 in	Through Hole	Vertical			5		Header Male Pins Shrouded (4 Side)	Tin	1	Solder	Blue	-40 C	105 ░C			300 V	20 A	5	16 A		Mating Flange
