2823056 Series

Catalog

CONN RCPT 20POS 0.1 TIN SMD

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Style	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Insulation Color	Features	Number of Rows	Contact Type	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Material	Contact Shape	Number of Positions Loaded	Termination	Insulation Material

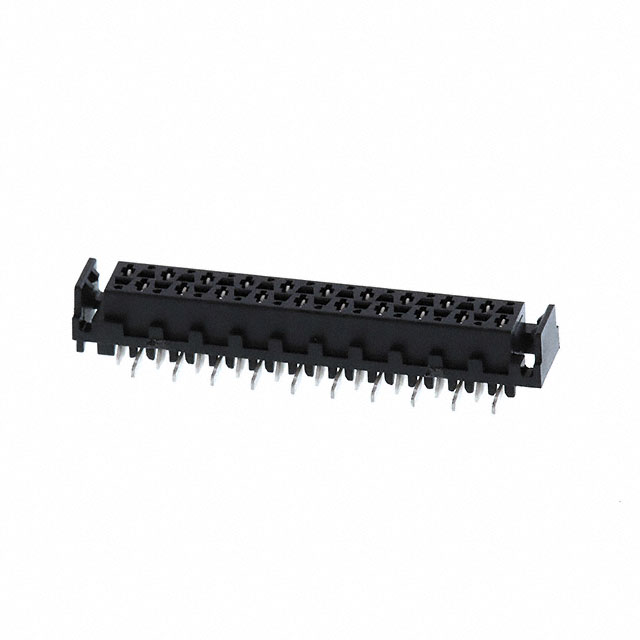

TE Connectivity Raychem Cable Protection 9-2823056-0	3 µm	118.1 µin	5.3 mm	0.209 "	Board to Board Cable	Tin	-30 ░C	85 °C	Receptacle	20	118.1 µin	3 µm	100 V	Black	Pick and Place	2	Forked	0.1 in	2.54 mm	Surface Mount	Brass	Rectangular	All	Solder	Glass Filled Nylon 4/6 Polyamide (PA46)
