LXS Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 150UF 450VOLTS SNAP-IN

Part	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]	Polarization	Applications	Mounting Type	Ripple Current @ Low Frequency	Package / Case	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension
Chemi-Con ELXS451VSN151MP40S	20 %	0.866 "	22 mm	450 V	5000 Hrs	105 ░C	-25 °C	Polar	General Purpose	Through Hole	940 mA	Radial Can - Snap-In	1.3442 A	0.394 in	10 mm	42.5 mm	1.673 in	150 µF
Chemi-Con ELXS181VSN222MA40S	20 %	1.378 "	35 mm	180 VDC	5000 Hrs	105 ░C	-25 °C	Polar	General Purpose	Through Hole	4.22 A	Radial Can - Snap-In	6.33 A	0.394 in	10 mm	42.5 mm	1.673 in	2200 µF
Chemi-Con ELXS161VSN272MA45S	20 %	1.378 "	35 mm	160 V	5000 Hrs	105 ░C	-25 °C	Polar	General Purpose	Through Hole	4.78 A	Radial Can - Snap-In	7.17 A	0.394 in	10 mm	47.5 mm	1.87 in	2700 µF
Chemi-Con ELXS251VSN681MP50S	20 %	0.866 "	22 mm	250 V	5000 Hrs	105 ░C	-25 °C	Polar	General Purpose	Through Hole	2.02 A	Radial Can - Snap-In	3.03 A	0.394 in	10 mm			680 µF	2.067 in	52.5 mm
Chemi-Con ELXS501VSN121MR30S	20 %	1.181 "		500 V	5000 Hrs	105 ░C	-25 °C	Polar	General Purpose	Through Hole	910 mA	Radial Can - Snap-In	1.3013 A	0.394 in	10 mm			120 µF	1.28 in	32.5 mm	30 mm
Chemi-Con ELXS181VSN821MQ30S	20 %	1 "	25.4 mm	180 VDC	5000 Hrs	105 ░C	-25 °C	Polar	General Purpose	Through Hole	2.08 A	Radial Can - Snap-In	3.12 A	0.394 in	10 mm			820 µF	1.28 in	32.5 mm
Chemi-Con ELXS3B1VSN181MP25S	20 %	0.866 "	22 mm	315 V	5000 Hrs	105 ░C	-25 °C	Polar	General Purpose	Through Hole	120 Hz 950 mA	Radial Can - Snap-In	1.3585 A	0.394 in	10 mm	27.5 mm	1.083 in	180 µF

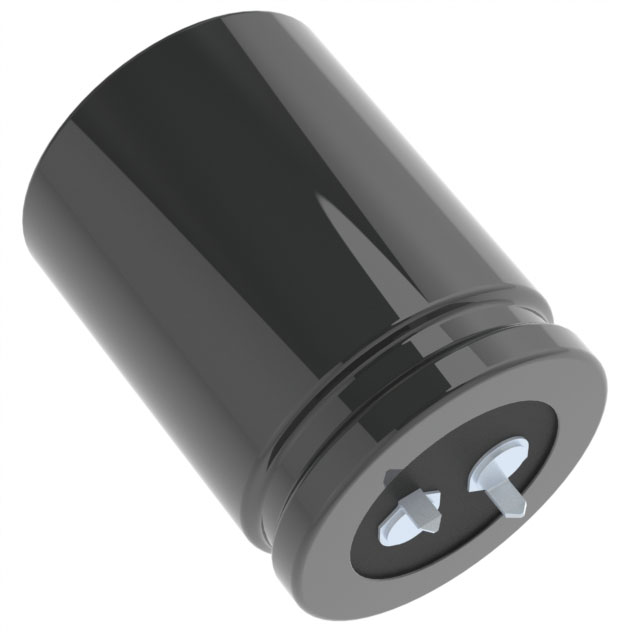

Chemi-Con ELXS3B1VSN102MA45S	20 %	1.378 "	35 mm	315 V	5000 Hrs	105 ░C	-25 °C	Polar	General Purpose	Through Hole		Radial Can - Snap-In	4.1613 A	0.394 in	10 mm			1000 µF	1.85 in	47 mm
Chemi-Con ELXS401VSN561MR45S	20 %	1.181 "		400 V	5000 Hrs	105 ░C	-25 °C	Polar	General Purpose	Through Hole	2.04 A	Radial Can - Snap-In	2.9172 A	0.394 in	10 mm	47.5 mm	1.87 in	560 µF			30 mm
Chemi-Con ELXS201VSN102MR30S	20 %	1.181 "		200 VDC	5000 Hrs	105 ░C	-25 °C	Polar	General Purpose	Through Hole	2.52 A	Radial Can - Snap-In	3.78 A	0.394 in	10 mm			1000 µF	1.28 in	32.5 mm	30 mm
