BHW Series
Manufacturer: Rubycon
Beta
⌘K
ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 450VDC 160UF 20% 18X40MM AEC-Q200
| Part | Applications | Package / Case | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Ripple Current @ Low Frequency | Tolerance | Voltage - Rated | Capacitance | Operating Temperature [Min] | Operating Temperature [Max] | Lifetime @ Temp. | Ratings | Lead Spacing | Lead Spacing | Mounting Type | Ripple Current @ High Frequency | Size / Dimension [diameter] | Size / Dimension [diameter] | Polarization | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rubycon | Automotive | Can Radial | 42 mm | 1.654 in | 1.02 A | 20 % | 450 V | 160 µF | -40 C | 105 ░C | 12000 Hrs | AEC-Q200 | 0.295 in | 7.5 mm | Through Hole | 2.04 A | 0.709 in | 18 mm | Polar | ||
Rubycon | Automotive | Can Radial | 1.13 A | 20 % | 420 V | 180 µF | -40 C | 105 ░C | 12000 Hrs | AEC-Q200 | 0.295 in | 7.5 mm | Through Hole | 2.26 A | 0.709 in | 18 mm | Polar | 1.85 in | 47 mm | ||

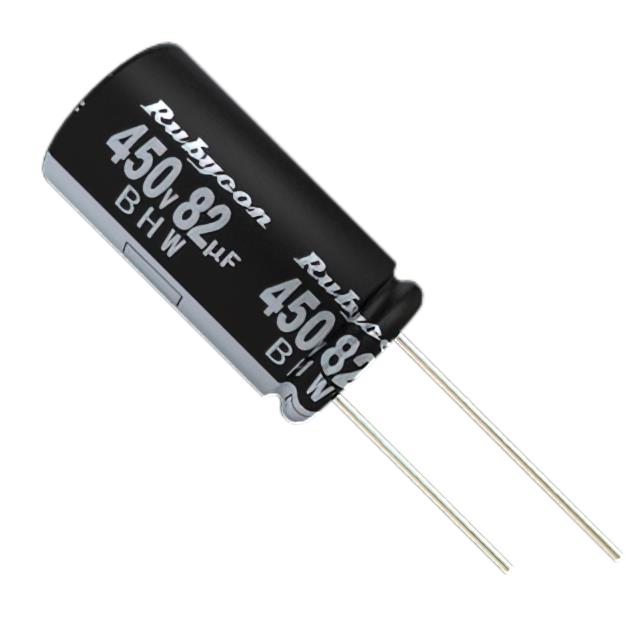

Rubycon | Automotive | Can Radial | 32 mm | 1.26 in | 670 mA | 20 % | 450 V | 0.082 mF | -40 C | 105 ░C | 12000 Hrs | AEC-Q200 | 0.295 in | 7.5 mm | Through Hole | 1.474 A | 0.63 in | 16 mm | Polar |
