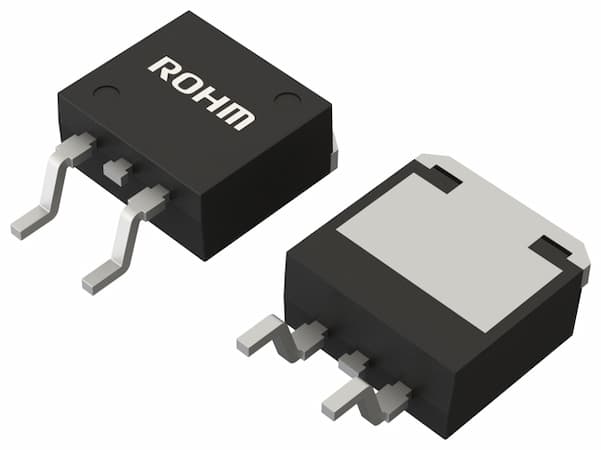

RGT20NL65 Series

5µs Short-Circuit Tolerance, 650V 10A, LPDL, Field Stop Trench IGBT

Catalog

5µs Short-Circuit Tolerance, 650V 10A, LPDL, Field Stop Trench IGBT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Power - Max [Max]	Gate Charge	Vce(on) (Max) @ Vge, Ic	Current - Collector Pulsed (Icm)	Test Condition	Mounting Type	IGBT Type	Package / Case	Voltage - Collector Emitter Breakdown (Max)	Current - Collector (Ic) (Max)	Td (on/off) @ 25°C	Td (on/off) @ 25°C
Rohm Semiconductor RGT20NL65GTL	-40 C	175 °C	106 W	22 nC	2.1 V	30 A	10 A 10 Ohm 15 V 400 V	Surface Mount	Trench Field Stop	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	650 V	20 A	32 ns	12 ns

5µs Short-Circuit Tolerance, 650V 10A, LPDL, Field Stop Trench IGBT

• Low Collector - Emitter Saturation Voltage, Low Switching Loss, Short Circuit Withstand Time 5μs, Pb - free Lead Plating ; RoHS Compliant

RGT20NL65 is a IGBT with low collector - emitter saturation voltage, suitable for general inverter, UPS, power conditioner, welder.
