MH14 Series

Catalog

CONN SPADE TERM 14-16AWG #8 25PC

Part	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Length - Termination [custom]	Length - Termination [custom]	Material - Insulation	Terminal Type	Termination	Color	Contact Finish	Length - Overall	Length - Overall	Stud/Tab Size	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material	Insulation	Features	Thickness	Thickness	Width - Outer Edges	Width - Outer Edges	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Overall [x]	Length - Overall [x]

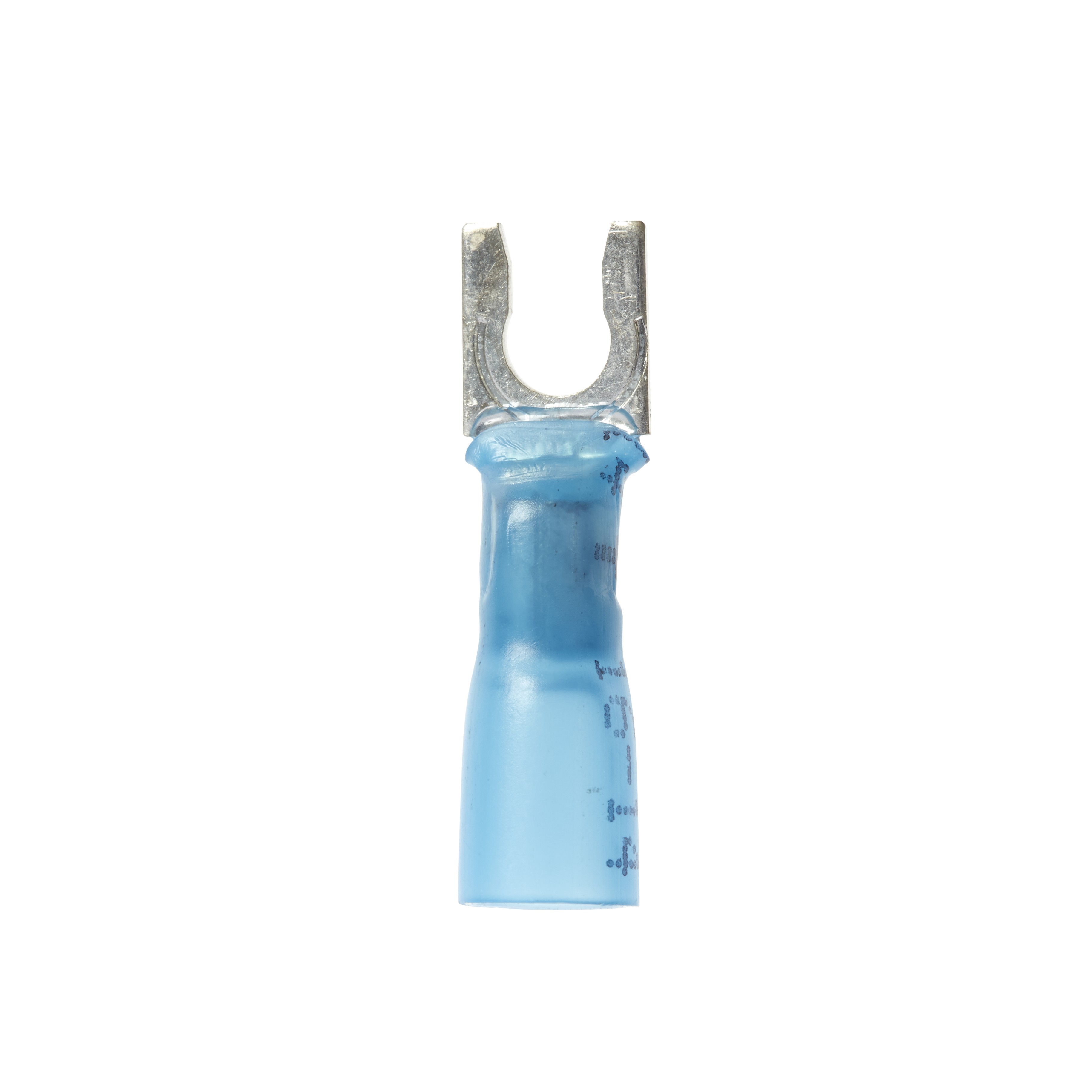

3M Electronic Specialty MH14-8FLX-BOTTLE	3.05 mm	0.12 "	14.73 mm	0.58 in	Polyolefin	Snap Spring	Crimp	Blue	Tin	25.4 mm	1 in	8 Stud	Free Hanging (In-Line)	14 AWG	16 AWG	Copper ETP	Insulated with Heat Shrink	Brazed Seam

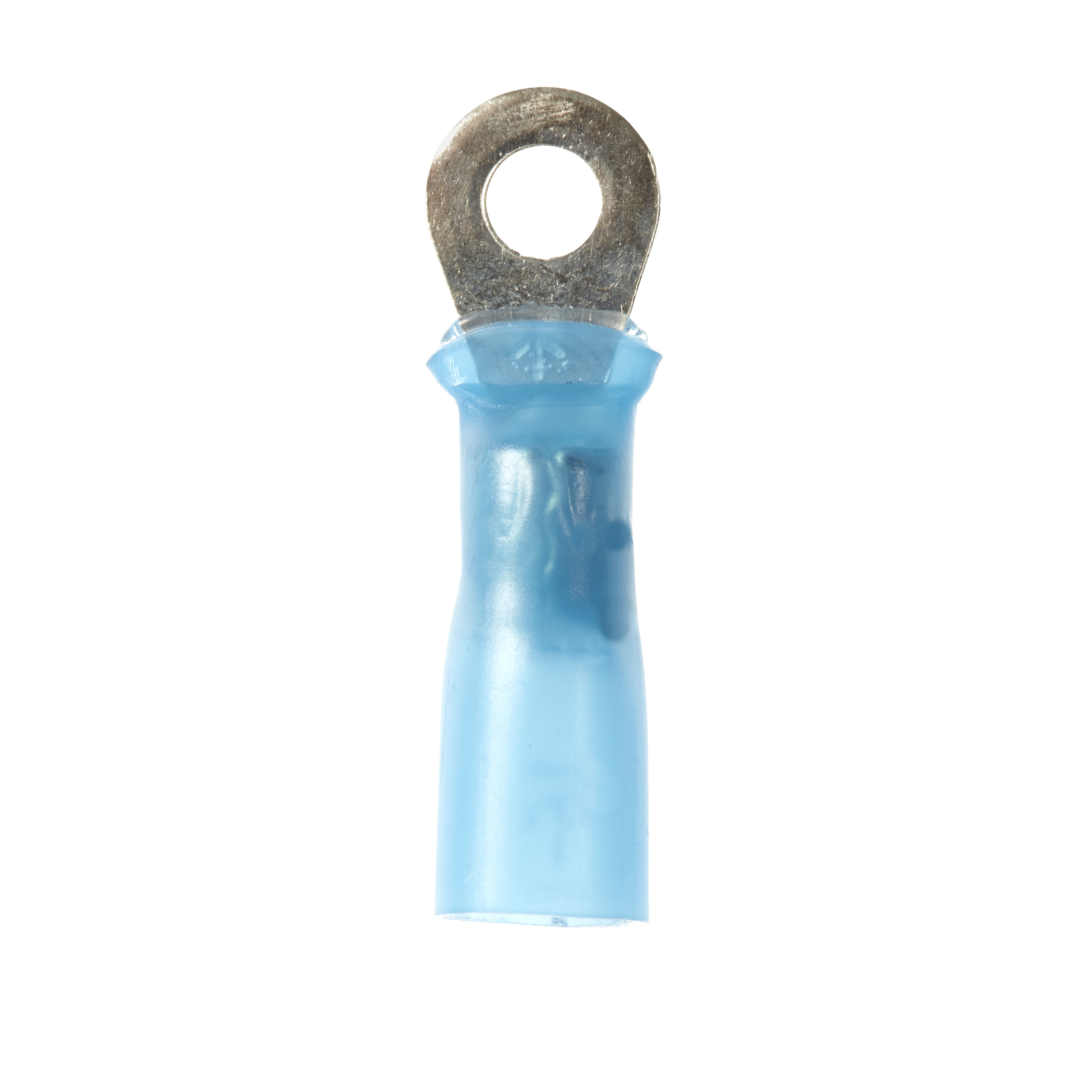

3M Electronic Specialty MH14-6R/LX-BOTTLE					Polyolefin	Circular	Crimp	Blue	Tin	25.4 mm	1 in	6 Stud	Free Hanging (In-Line)	14 AWG	16 AWG	Copper ETP	Insulated with Heat Shrink	Brazed Seam	0.76 mm	0.03 in	7.87 mm	0.31 in

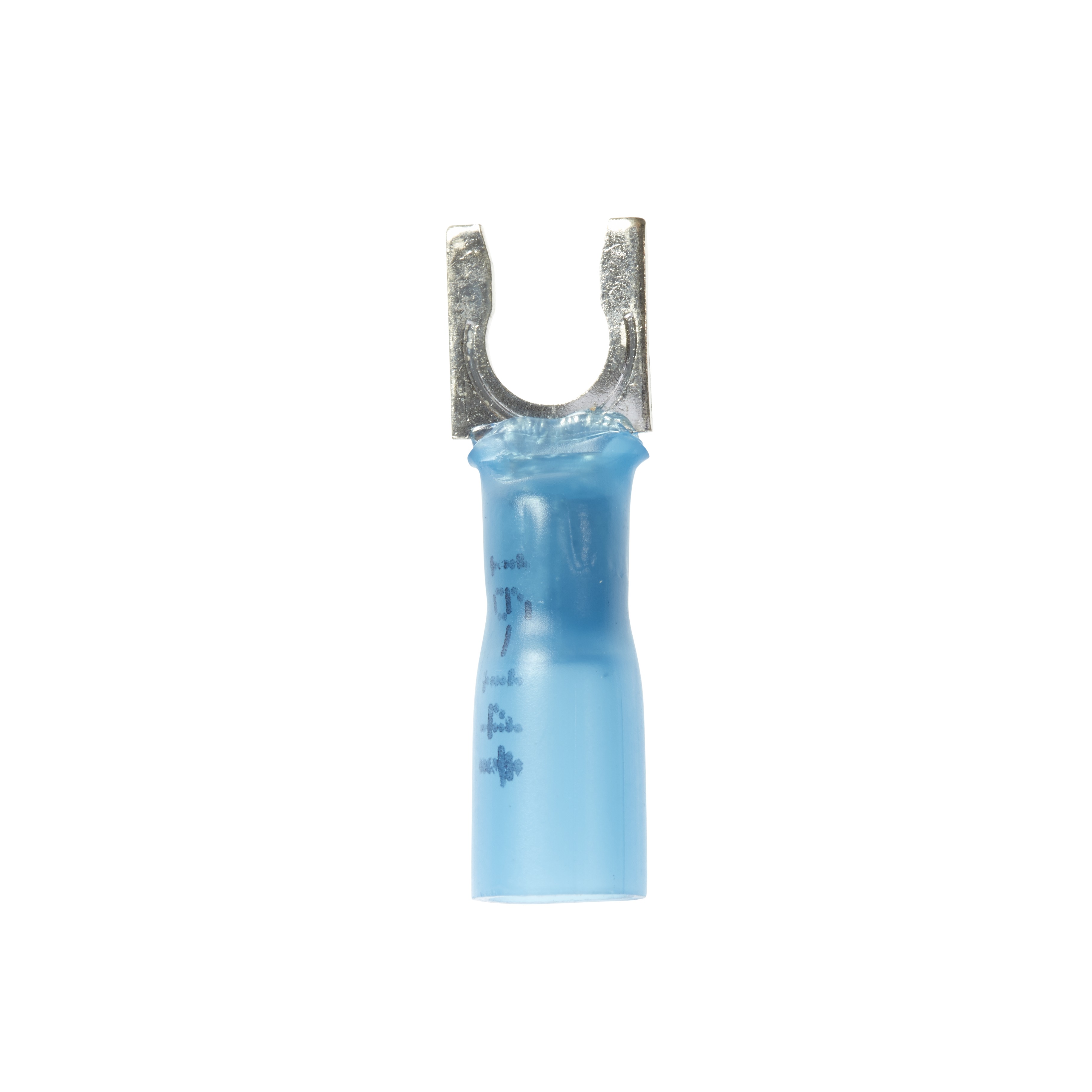

3M Electronic Specialty MH14-10FLX-BOTTLE	3.05 mm	0.12 "	16.26 mm	0.64 in	Polyolefin	Snap Spring	Crimp	Blue	Tin	25.4 mm	1 in	10 Stud	Free Hanging (In-Line)	14 AWG	16 AWG	Copper ETP	Insulated with Heat Shrink	Brazed Seam					0.32 in	8.13 mm
3M Electronic Specialty MH14-10FLK	3.05 mm	0.12 "	16.26 mm	0.64 in	Polyolefin	Snap Spring	Crimp	Blue	Tin	25.4 mm	1 in	10 Stud	Free Hanging (In-Line)	14 AWG	16 AWG	Copper ETP	Insulated with Heat Shrink	Brazed Seam					0.32 in	8.13 mm

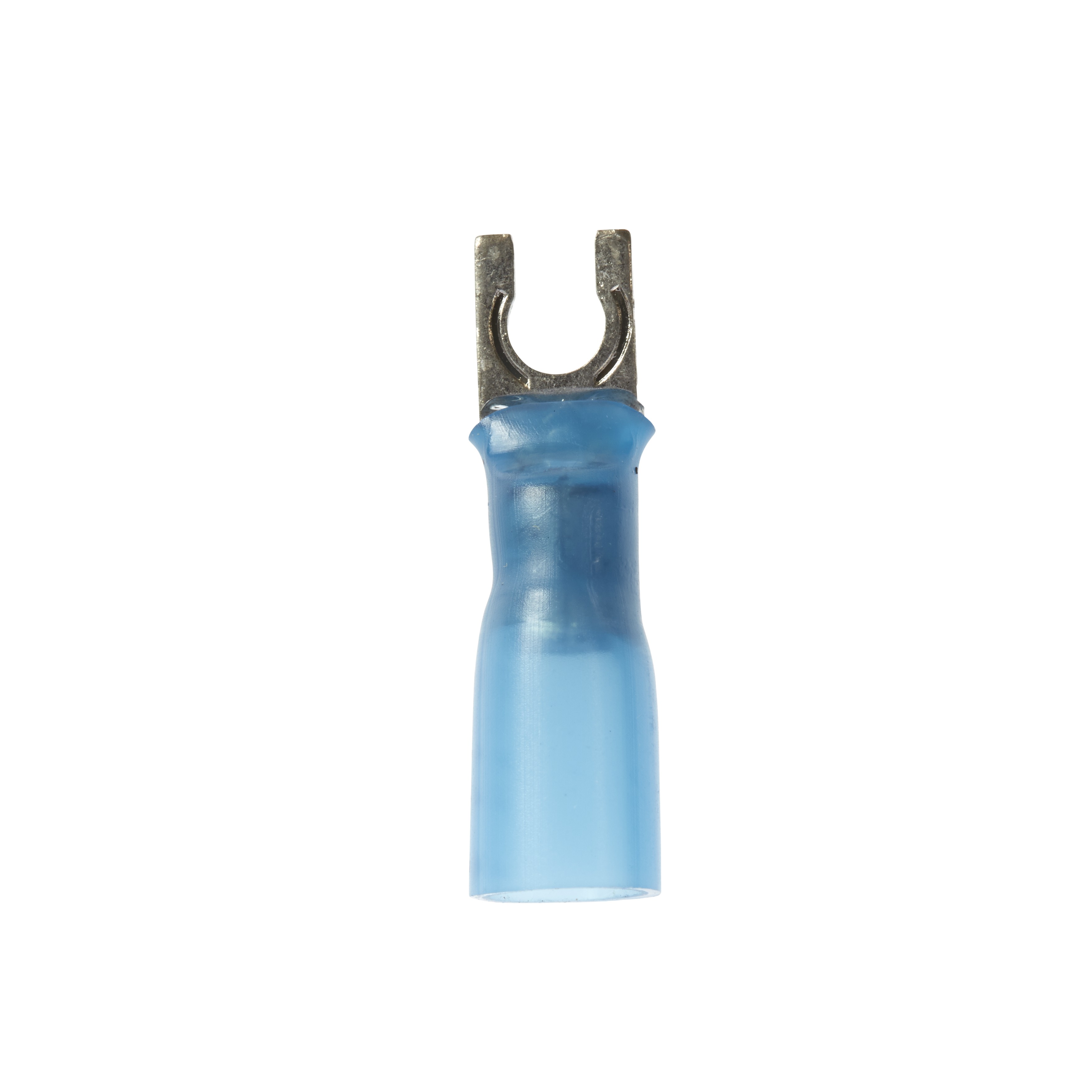

3M Electronic Specialty MH14-6FLX-BOTTLE	3.05 mm	0.12 "	16.26 mm	0.64 in	Polyolefin	Snap Spring	Crimp	Blue	Tin	25.4 mm	1 in	6 Stud	Free Hanging (In-Line)	14 AWG	16 AWG	Copper ETP	Insulated with Heat Shrink	Brazed Seam					0.25 "	6.35 mm
3M Electronic Specialty MH14-6FLK	3.05 mm	0.12 "	16.26 mm	0.64 in	Polyolefin	Snap Spring	Crimp	Blue	Tin	25.4 mm	1 in	6 Stud	Free Hanging (In-Line)	14 AWG	16 AWG	Copper ETP	Insulated with Heat Shrink	Brazed Seam					0.25 "	6.35 mm
3M Electronic Specialty MH14-38RK					Polyolefin	Circular	Crimp	Blue	Tin			0.375 Stud	Free Hanging (In-Line)	14 AWG	16 AWG	Copper ETP	Insulated with Heat Shrink	Brazed Seam	0.76 mm	0.03 in	14.22 mm	0.56 in			27.94 mm	1.1 in

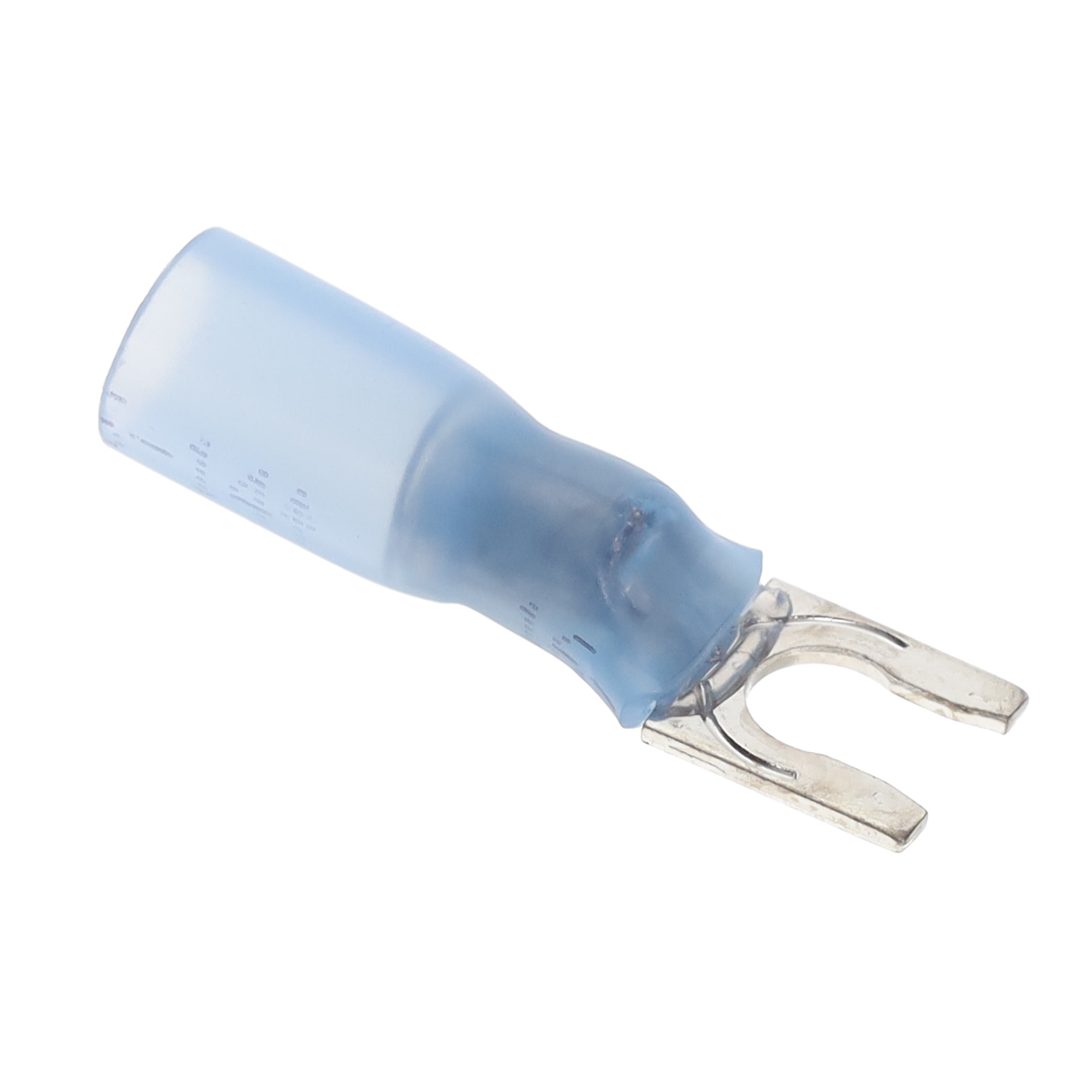

3M Electronic Specialty MH14-8FLK	3.05 mm	0.12 "	14.73 mm	0.58 in	Polyolefin	Snap Spring	Crimp	Blue	Tin	25.4 mm	1 in	8 Stud	Free Hanging (In-Line)	14 AWG	16 AWG	Copper ETP	Insulated with Heat Shrink	Brazed Seam
3M Electronic Specialty MH14-8R/LK					Polyolefin	Circular	Crimp	Blue	Tin	25.4 mm	1 in	8 Stud	Free Hanging (In-Line)	14 AWG	16 AWG	Copper ETP	Insulated with Heat Shrink	Brazed Seam	0.76 mm	0.03 in	7.87 mm	0.31 in
3M Electronic Specialty MH14-516R/SX-BOTTLE					Polyolefin	Circular	Crimp	Blue	Tin			0.3125 Stud	Free Hanging (In-Line)	14 AWG	16 AWG	Copper ETP	Insulated with Heat Shrink	Brazed Seam	0.76 mm	0.03 in			0.47 in	11.94 mm	27.94 mm	1.1 in
