TLE5012 Series
Manufacturer: INFINEON
Beta
⌘K

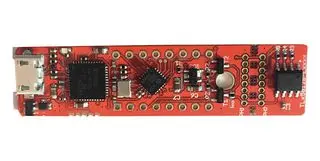

XENSIV(TM) - TLE5012B E5000 SENSOR 2GO KIT, AUTOMOTIVE PREDEFINED VARIANT WITH SSC & PWM COMMUNICATION PROTOCOL
| Part | Supplied Contents | Utilized IC / Part | Embedded | Embedded | Sensing Range | Sensor Type | Contents | Technology | Output | Supplier Device Package | For Measuring | Actuator Type | Rotation Angle - Electrical, Mechanical [Max] | Rotation Angle - Electrical, Mechanical [Min] | Qualification | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Grade | Termination Style | Output Signal | Package / Case | Package / Case | Package / Case | Voltage - Supply [Max] | Voltage - Supply [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | Board(s) | TLE5012B | 32-Bit MCU | 360 ° | Magnetic Rotary Position | Board(s) | ||||||||||||||||||||
 INFINEON | Magnetoresistive | SENT SPI | PG-TDSO-16 | Angle | External Magnet Not Included | 360 ° | 0 ° | AEC-Q100 | 125 °C | -40 °C | Surface Mount | Automotive | Gull Wing | Cosine Sine | 16-TSSOP | |||||||||||
 INFINEON | Magnetoresistive | Wheatstone Bridge | Angle | External Magnet Not Included | 360 ° | 0 ° | AEC-Q100 | 150 °C | -40 °C | Surface Mount | Automotive | Gull Wing | Cosine Sine | 8-SOIC | 0.154 in | 3.9 mm | 5.5 V | 3 V | ||||||||
 INFINEON | Board(s) | TLE5012B | 32-Bit MCU | 360 ° | Magnetic Rotary Position | Board(s) | ||||||||||||||||||||
INFINEON | Magnetoresistive | Wheatstone Bridge | Angle | External Magnet Not Included | 360 ° | 0 ° | AEC-Q100 | 150 °C | -40 °C | Surface Mount | Automotive | Gull Wing | Cosine Sine | 8-SOIC | 0.154 in | 3.9 mm | 5.5 V | 3 V |
