M3041 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

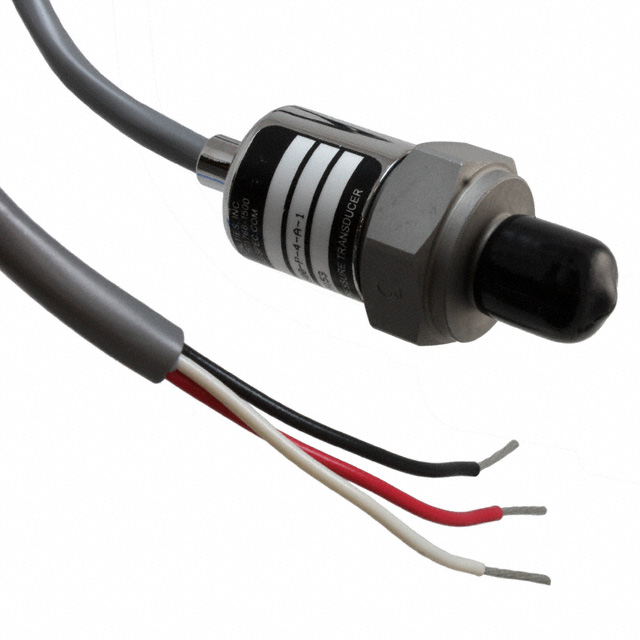

PRESSURE TRANSMITTER, GAUGE, 0-100PSI
| Part | Pressure Type | Applications | Accuracy | Operating Pressure | Operating Pressure | Maximum Pressure | Maximum Pressure [Max] | Output Type | Termination Style | Output [Max] | Output [Min] | Features | Voltage - Supply [Min] | Voltage - Supply [Max] | Package / Case | Port Style | Port Size | Port Size | Port Size | Operating Temperature [Max] | Operating Temperature [Min] | Maximum Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Vented Gauge | Industrial Automation | 1 % | 689.48 kPa | 100 PSI | 13789.51 kPa | 2000 PSI | Analog Voltage | Cable | 5 V | 1 V | Amplified Output Temperature Compensated | 10 VDC | 30 VDC | Cylinder Threaded | Threaded | 0.125 in | Male NPT | 3.18 mm | 85 °C | -20 ░C | |
 TE Connectivity AMP Connectors | Vented Gauge | Industrial Automation | 1 % | 3447.38 kPa | 500 PSI | 6894.76 kPa | Analog Voltage | Cable | 5 V | 1 V | Amplified Output Temperature Compensated | 10 VDC | 30 VDC | Cylinder | Threaded | 0.125 in | Male NPT | 3.18 mm | 85 °C | -20 ░C | 1000 PSI |
