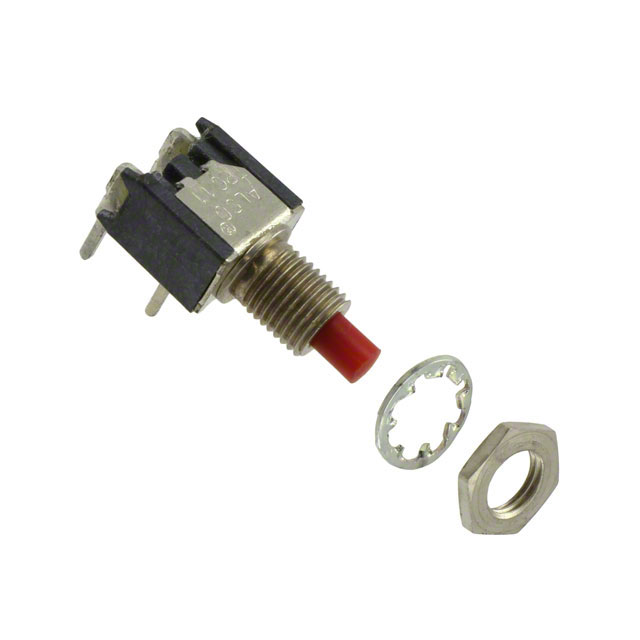

TPC11 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SWITCH PUSH SPST-NO 0.4VA 20V
| Part | Electrical Life | Actuator Type | Panel Cutout Dimensions [diameter] | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Voltage Rating - AC | Color - Actuator/Cap | Voltage Rating - DC | Type | Actuator Marking | Circuit | Switch Function | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 100000 Cycles | Plunger Round | 4.83 mm | PC Pin | -30 ░C | 65 °C | 0.4 VA | 20 V | Red | 20 V | Standard | No Marking | SPST-NO | Off-Mom | Panel Mount Rear Right Angle |
 TE Connectivity AMP Connectors | 100000 Cycles | Plunger Round | 4.83 mm | PC Pin | -30 ░C | 65 °C | 0.4 VA | 20 V | Black | 20 V | Standard | No Marking | SPST-NO | Off-Mom | Panel Mount Rear Right Angle Vertical |
 TE Connectivity AMP Connectors | 100000 Cycles | Plunger Round | 4.83 mm | PC Pin | -30 ░C | 65 °C | 0.4 VA | 20 V | Black | 20 V | Standard | No Marking | SPDT | On-Mom | Panel Mount Rear Right Angle Vertical |
