ALCOSWITCH SE Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SWITCH SLIDE ON OFF ON SPDT TOP SLIDE 0.05A 48VAC 48VDC 0.4VA PC PINS THRU-HOLE PACKAGE
| Part | Contact Material | Voltage Rating - DC | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Features | Mounting Type | Contact Finish | Voltage Rating - AC | Current Rating (Amps) | Switch Function | Actuator Type | Contact Timing | Termination Style | Operating Force [Min] | Operating Force [Max] | Electrical Life | Mechanical Life | Switch Travel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

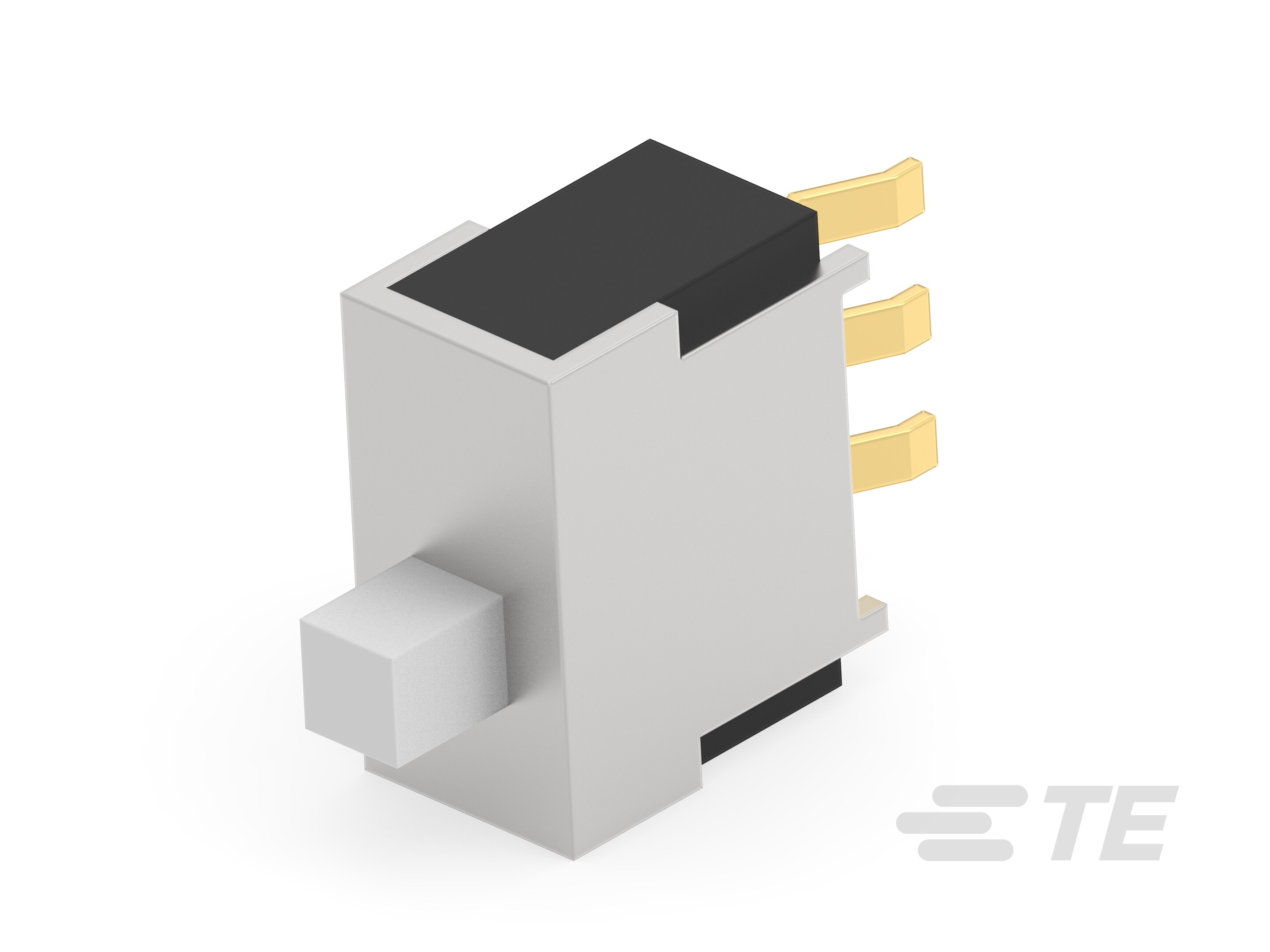

 TE Connectivity AMP Connectors | Copper Alloy | 20 V | SPDT | 80 °C | -20 ░C | IP67 - Dust Tight Waterproof | Through Hole | Gold | 20 V | 0.4 VA | On-Off-On | Standard | Non-Shorting (BBM) | PC Pin | |||||

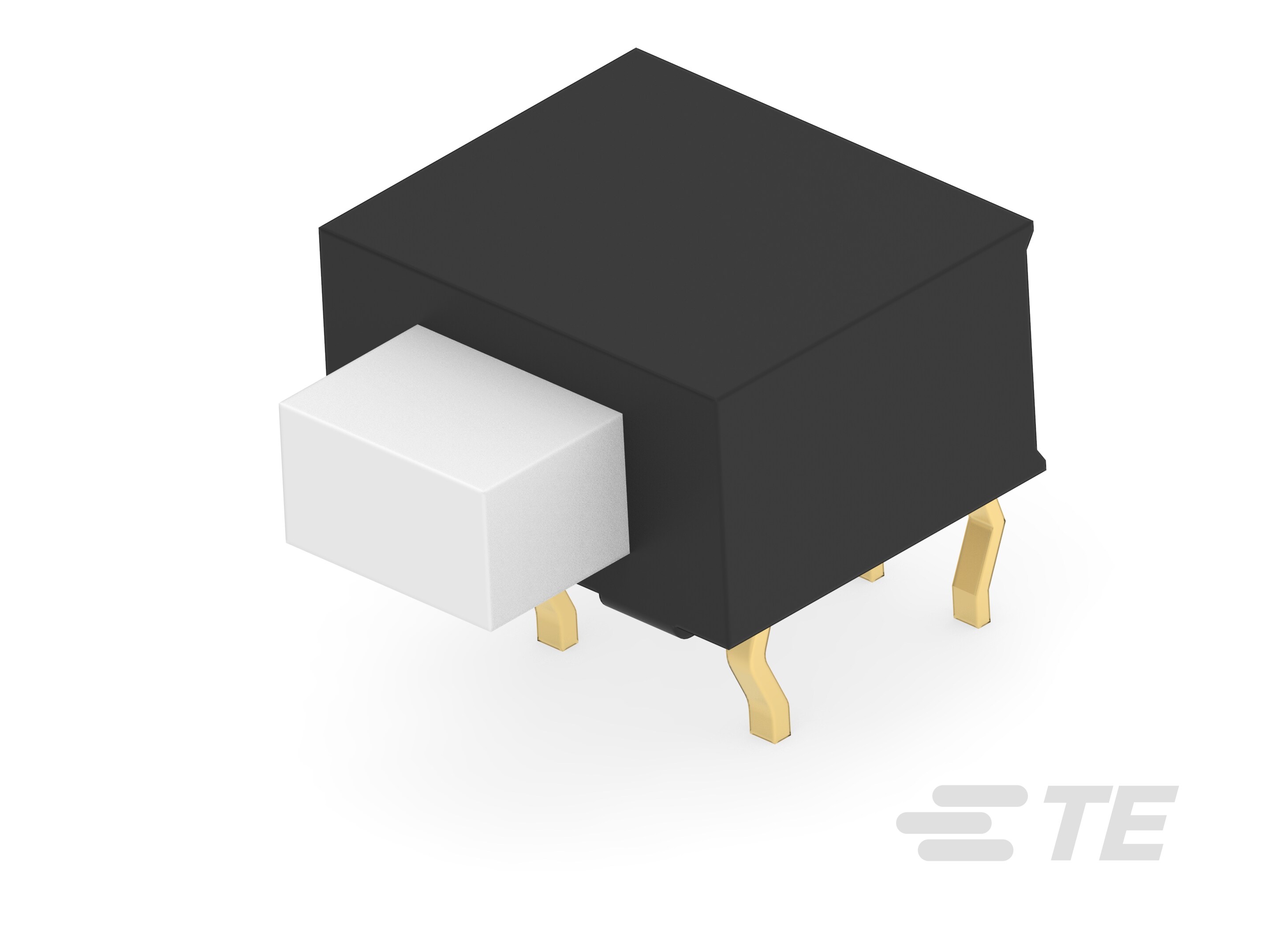

TE Connectivity AMP Connectors | Copper Alloy | 20 V | SPDT | 80 °C | -20 ░C | IP67 - Dust Tight Waterproof | Right Angle Through Hole | Gold | 20 V | 0.4 VA | On-Off-On | Standard | Non-Shorting (BBM) | PC Pin | 100 gf | 500 gf | 10000 Cycles | 10000 Steps | 2.2 mm |
 TE Connectivity AMP Connectors | Copper Alloy | 20 V | SPDT | 80 °C | -20 ░C | IP67 - Dust Tight Waterproof | Right Angle Through Hole | Gold | 20 V | 0.4 VA | On-On | Standard | Non-Shorting (BBM) | PC Pin | |||||
 TE Connectivity AMP Connectors | Copper Alloy | 20 V | SPDT | 80 °C | -20 ░C | IP67 - Dust Tight Waterproof | Through Hole | Gold | 20 V | 0.4 VA | On-On | Standard | Non-Shorting (BBM) | PC Pin | |||||

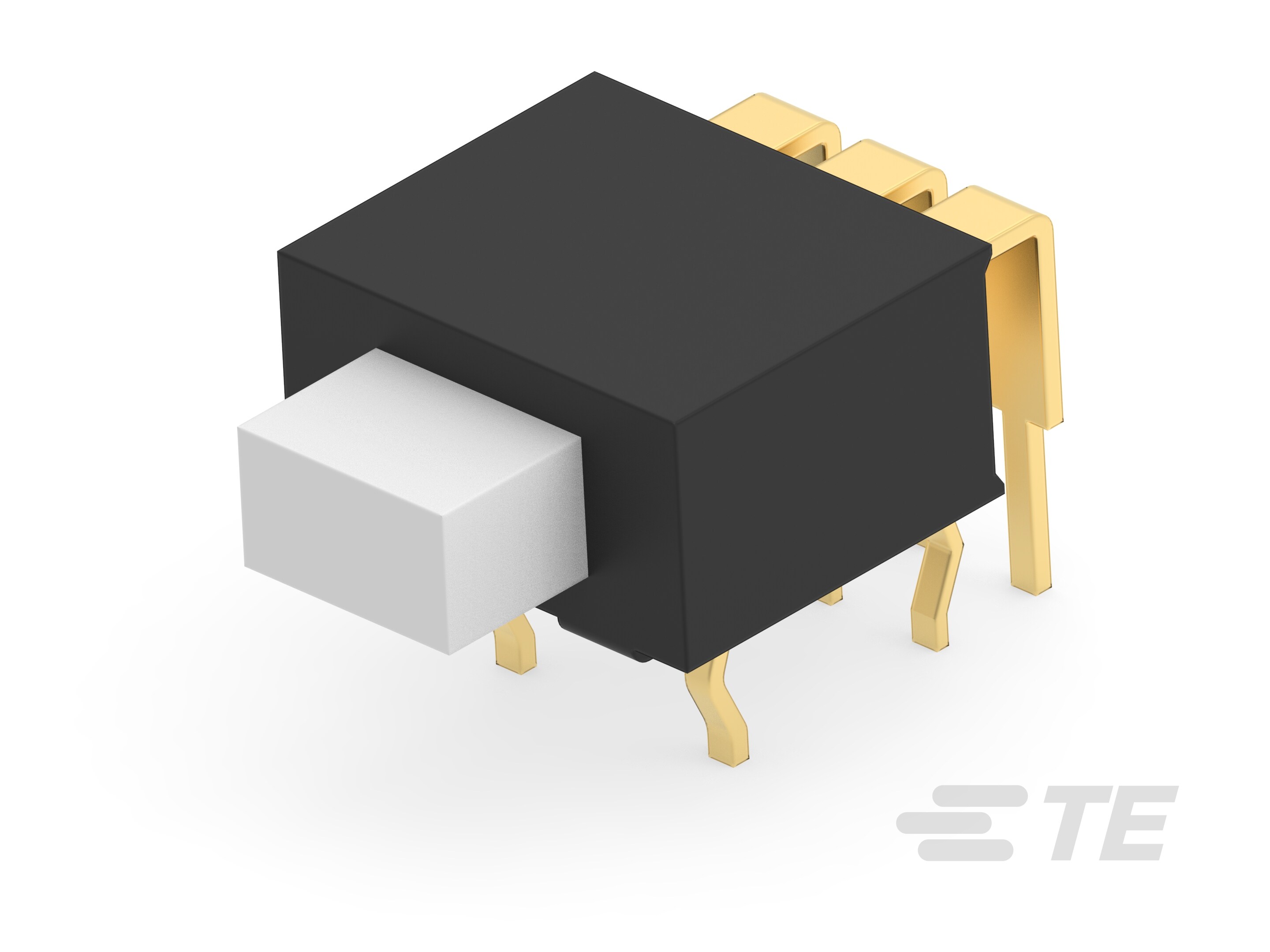

 TE Connectivity AMP Connectors | Copper Alloy | 20 V | DPDT | 80 °C | -20 ░C | IP67 - Dust Tight Waterproof | Right Angle Through Hole | Gold | 20 V | 0.4 VA | On-On | Standard | Non-Shorting (BBM) | PC Pin |
