7620-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

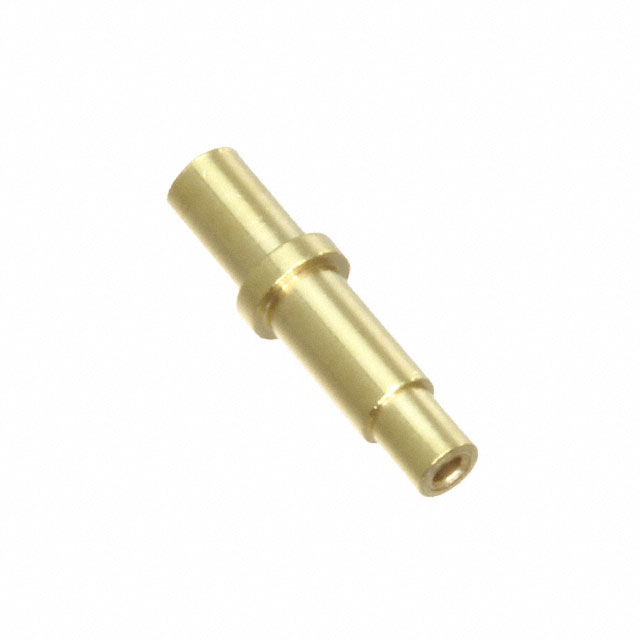

DOUBLE ENDED RECEPTACLE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Flange Diameter [diameter] | Flange Diameter [diameter] | Accepts Square Pin Size | Accepts Square Pin Size | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Pin Hole Diameter | Pin Hole Diameter | Pin Hole Diameter | Length - Overall [x] | Length - Overall [x] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.125 in | 3.18 mm | 0.025 in | 0.64 mm | 30 Áin | 0.76 Ám | Beryllium Copper | 0.051 in 0.064 in | 1.63 mm | 1.3 mm | 11.3 mm | 0.445 in | 0.86 mm 1.17 mm | 0.022 " 0.032 " | 0.034 " 0.046 " | 0.56 mm 0.81 mm | Gold |
