746-007 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 7POS 0.125
| Part | Material - Insulation | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Pitch | Pitch | Termination | Mounting Type | Number of Positions | Contact Type | Color | Number of Rows | Read Out | Number of Positions/Bay/Row | Card Type | Card Thickness [Max] | Card Thickness [Min] | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

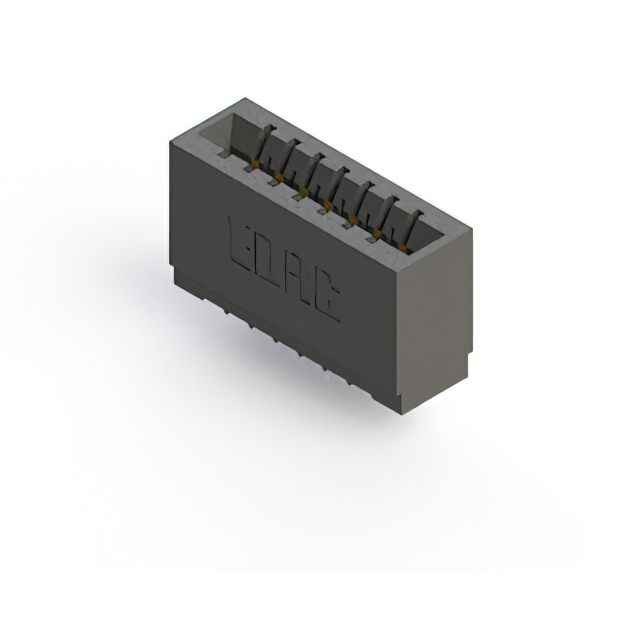

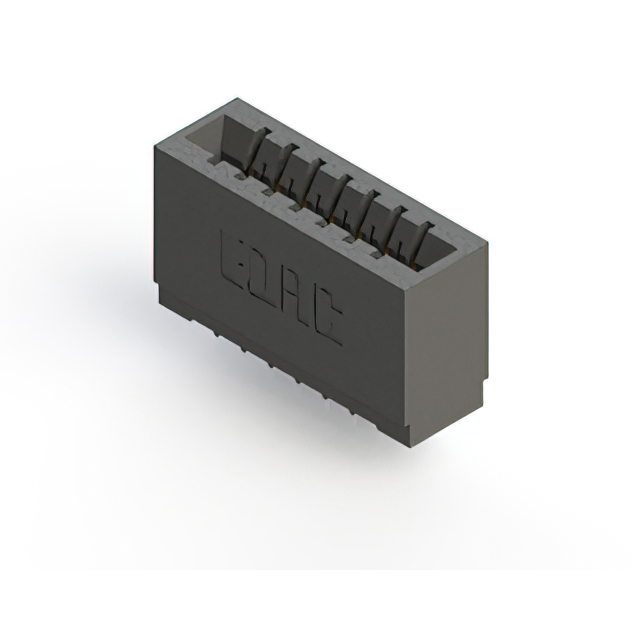

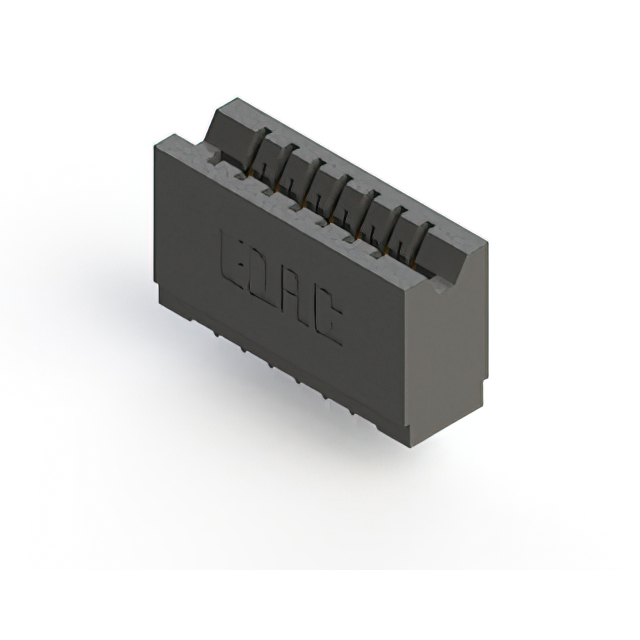

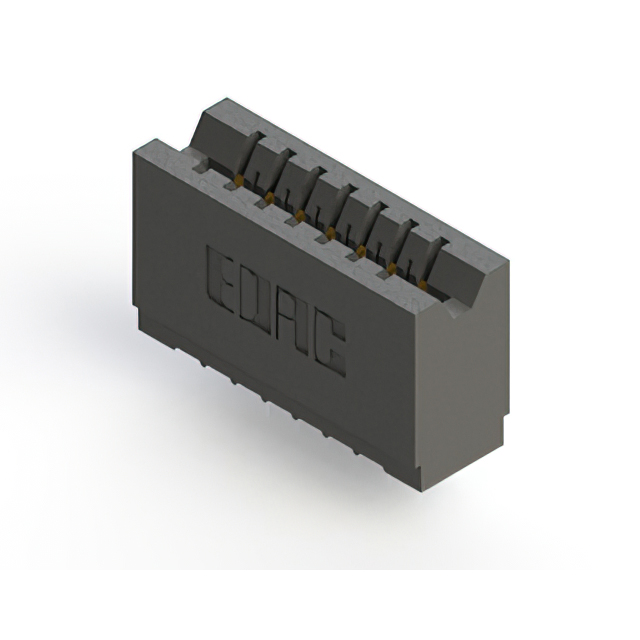

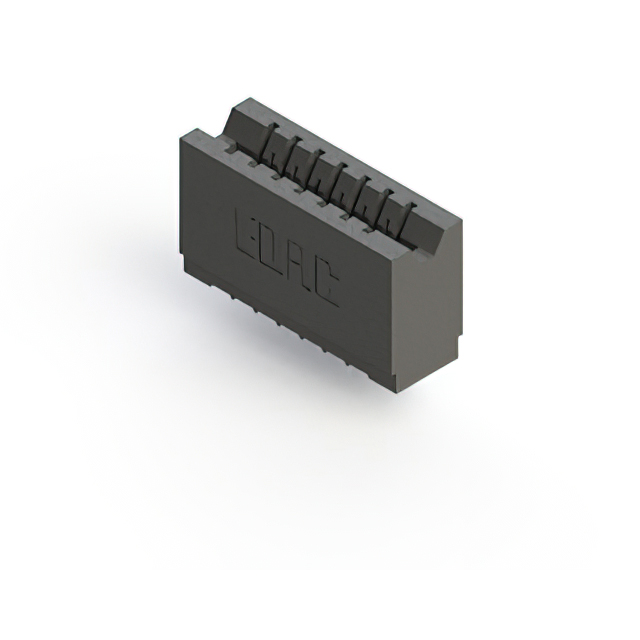

 EDAC Inc. | Polyester Thermoplastic | 1 | 30 Áin | 0.76 Ám | Gold | 3.18 mm | 0.125 in | Press-Fit | Through Hole | 7 | Cantilever | Black | 1 | Single | 7 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | -40 C | 105 ░C | Female |
 EDAC Inc. | Polyester Thermoplastic | 1 | 30 Áin | 0.76 Ám | Gold | 3.18 mm | 0.125 in | Press-Fit Wire Wrap | Through Hole | 7 | Cantilever | Black | 1 | Single | 7 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | -40 C | 105 ░C | Female |
 EDAC Inc. | Polyester Thermoplastic | 1 | 30 Áin | 0.76 Ám | Gold | 3.18 mm | 0.125 in | Press-Fit | Through Hole | 7 | Cantilever | Black | 1 | Single | 7 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | -40 C | 105 ░C | Female |
 EDAC Inc. | Polyester Thermoplastic | 1 | 30 Áin | 0.76 Ám | Gold | 3.18 mm | 0.125 in | Press-Fit | Through Hole | 7 | Cantilever | Black | 1 | Single | 7 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | -40 C | 105 ░C | Female |
 EDAC Inc. | Polyester Thermoplastic | 1 | 30 Áin | 0.76 Ám | Gold | 3.18 mm | 0.125 in | Press-Fit | Through Hole | 7 | Cantilever | Black | 1 | Single | 7 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | -40 C | 105 ░C | Female |
 EDAC Inc. | Polyester Thermoplastic | 1 | 30 Áin | 0.76 Ám | Gold | 3.18 mm | 0.125 in | Press-Fit Wire Wrap | Through Hole | 7 | Cantilever | Black | 1 | Single | 7 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | -40 C | 105 ░C | Female |
 EDAC Inc. | Polyester Thermoplastic | 1 | 30 Áin | 0.76 Ám | Gold | 3.18 mm | 0.125 in | Press-Fit Wire Wrap | Through Hole | 7 | Cantilever | Black | 1 | Single | 7 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | -40 C | 105 ░C | Female |
 EDAC Inc. | Polyester Thermoplastic | 1 | 30 Áin | 0.76 Ám | Gold | 3.18 mm | 0.125 in | Press-Fit Wire Wrap | Through Hole | 7 | Cantilever | Black | 1 | Single | 7 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | -40 C | 105 ░C | Female |
 EDAC Inc. | Polyester Thermoplastic | 1 | 30 Áin | 0.76 Ám | Gold | 3.18 mm | 0.125 in | Press-Fit | Through Hole | 7 | Cantilever | Black | 1 | Single | 7 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | -40 C | 105 ░C | Female |
 EDAC Inc. | Polyester Thermoplastic | 1 | 30 Áin | 0.76 Ám | Gold | 3.18 mm | 0.125 in | Press-Fit Wire Wrap | Through Hole | 7 | Cantilever | Black | 1 | Single | 7 | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | -40 C | 105 ░C | Female |
