59K214 Series
Manufacturer: Rosenberger
Beta
⌘K
CONN SMB JACK R/A 50OHM SOLDER
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Body Finish | Mating Cycles | Center Contact Plating | Body Material | Includes | Voltage Rating | Frequency - Max [Max] | Mounting Type | Fastening Type | Cable Group | Housing Color | Number of Ports | Center Contact Material | Connector Type | Connector Style | Contact Termination | Shield Termination | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

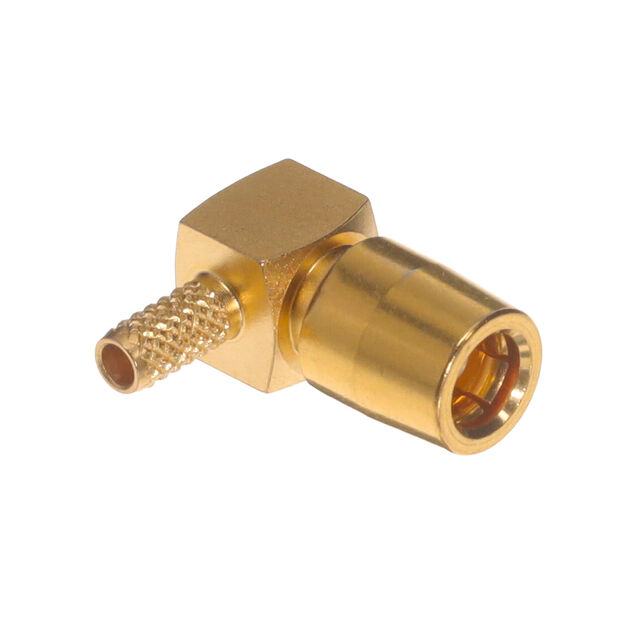

 Rosenberger | 155 C | -55 C | Polytetrafluoroethylene (PTFE) | Gold | 500 | Gold | Brass | 1 Connector 1 End Cap 1 Ferrule | 250 V | 4 GHz | Free Hanging (In-Line) Right Angle | Snap-On | RG-316 | Gold | 1 | Beryllium Copper | Female Socket Jack | SMB | Solder | Crimp | 50 Ohms |

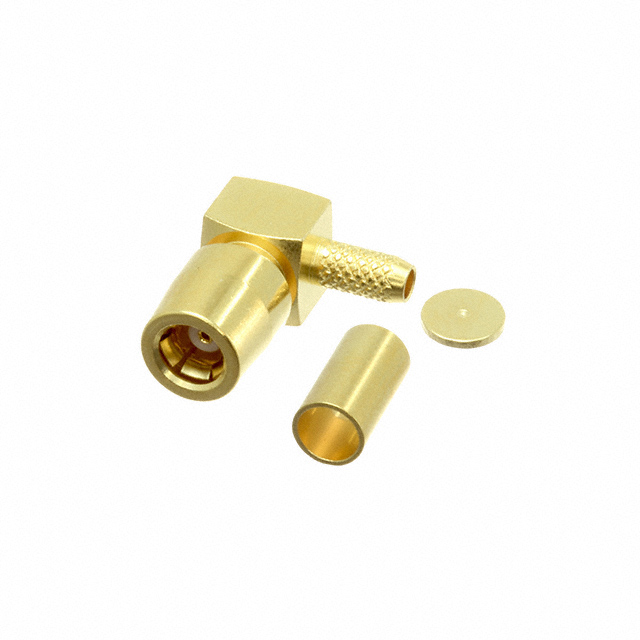

 Rosenberger | 155 C | -55 C | Polytetrafluoroethylene (PTFE) | Gold | 500 | Gold | Brass | 1 Connector 1 End Cap 1 Ferrule | 250 V | 4 GHz | Free Hanging (In-Line) Right Angle | Snap-On | 188A 316 RG-174A | Gold | 1 | Beryllium Copper | Female Socket Jack | SMB | Solder | Crimp | 50 Ohms |

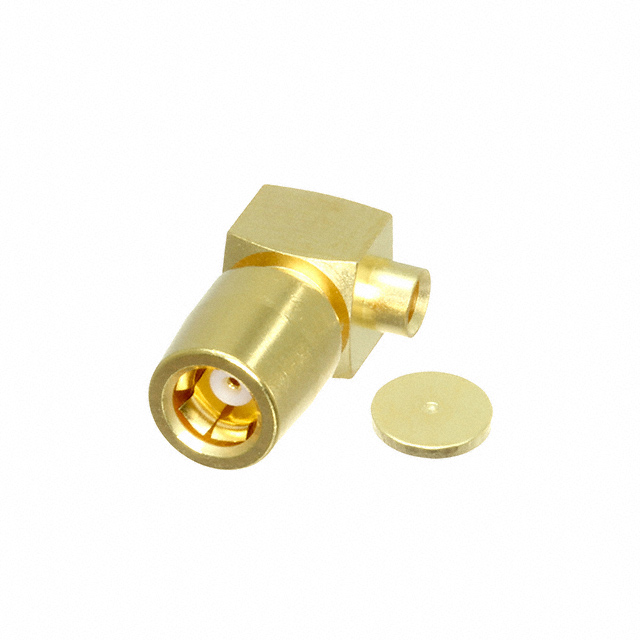

 Rosenberger | 155 C | -55 C | Polytetrafluoroethylene (PTFE) | Gold | 500 | Gold | Brass | 1 Connector 1 End Cap | 250 V | 4 GHz | Free Hanging (In-Line) Right Angle | Snap-On | RG-405 (.085" Semi Rigid) | Gold | 1 | Beryllium Copper | Female Socket Jack | SMB | Solder | Solder | 50 Ohms |
