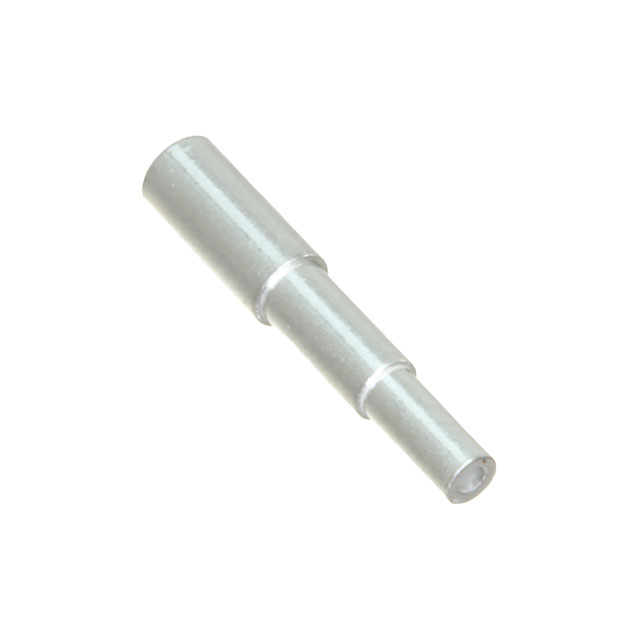

4314-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
WIRE TERMINATION RECEPTACLE - SO
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Socket Depth | Socket Depth | Contact Finish Thickness | Contact Finish Thickness | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Min] | Contact Finish | Length - Overall | Length - Overall | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Contact Material | Tail Type | Flange Diameter | Flange Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Crimp | 0.269 in | 6.83 mm | 30 Áin | 0.76 Ám | 0.043 in | 1.09 mm | 0.94 mm | 0.037 in | Gold | 0.455 in | 11.56 mm | 1.37 mm | 0.054 in | Beryllium Copper | No Tail | 0.082 in | 2.08 mm |
