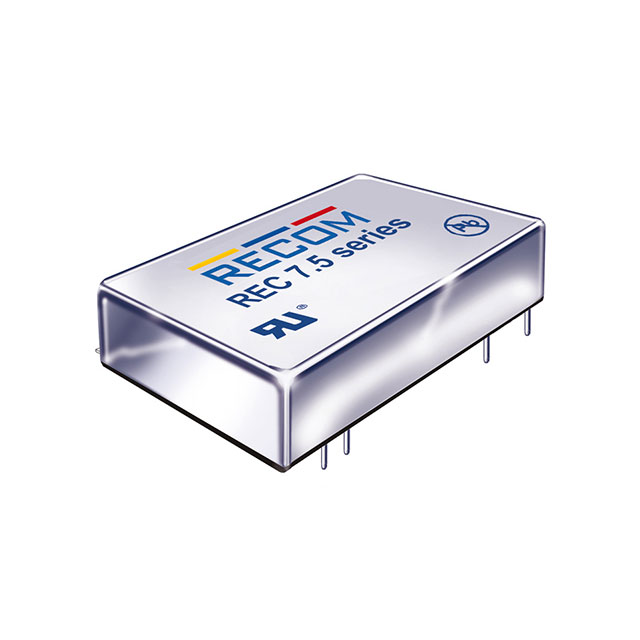

REC7.5-4805 Series
Manufacturer: Recom Power
Beta
⌘K
DC DC CONVERTER +/-5V 8W
| Part | Type | Package / Case | Power (Watts) | Voltage - Output 2 | Voltage - Input (Max) [Max] | Voltage - Isolation | Voltage - Input (Min) [Min] | Control Features | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Current - Output (Max) | Current - Output (Max) | Applications | Number of Outputs | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | Isolated Module | 24-SMD Module 18 Leads | 8 W | -5 V | 72 V | 1000 V | 36 V | Active Low Enable | Surface Mount | 71 °C | -40 C | 5 V | 750 mA | 750 mA | ITE (Commercial) Medical | 2 | 0.78 in | 0.44 in | 1.26 in | 11.2 mm | 32 mm | 19.9 mm | Remote On/Off SCP |
