R14226 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

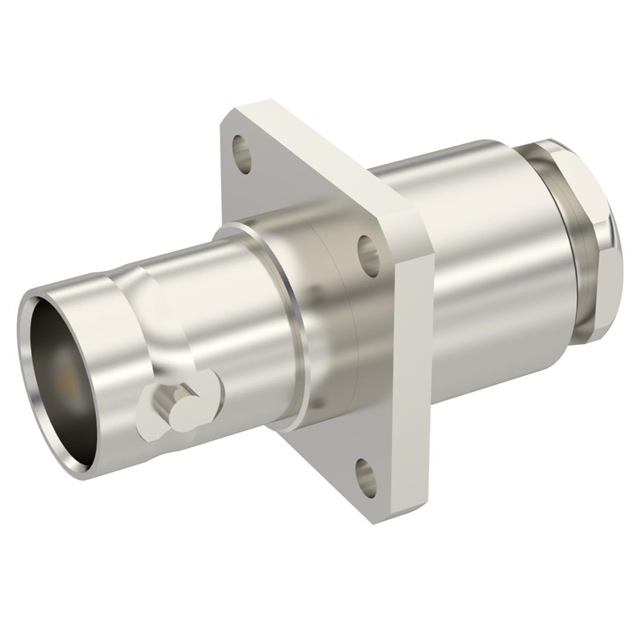

BNC75 F STR SQF CL 6/75
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Voltage Rating | Body Material | Mating Cycles | Center Contact Plating | Body Finish | Fastening Type | Number of Ports | Mounting Type | Center Contact Material | Mounting Feature | Frequency - Max [Max] | Housing Color | Connector Type | Impedance | Cable Group | Cable Group | Contact Termination | Shield Termination | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 V | Brass | 500 | Gold | Nickel | Bayonet Lock | 1 | Panel Mount | Beryllium Copper | Flange | 1.5 GHz | Silver | Female Socket Jack | 75 Ohms | RG-59 | 62 | Solder | Clamp | BNC |
