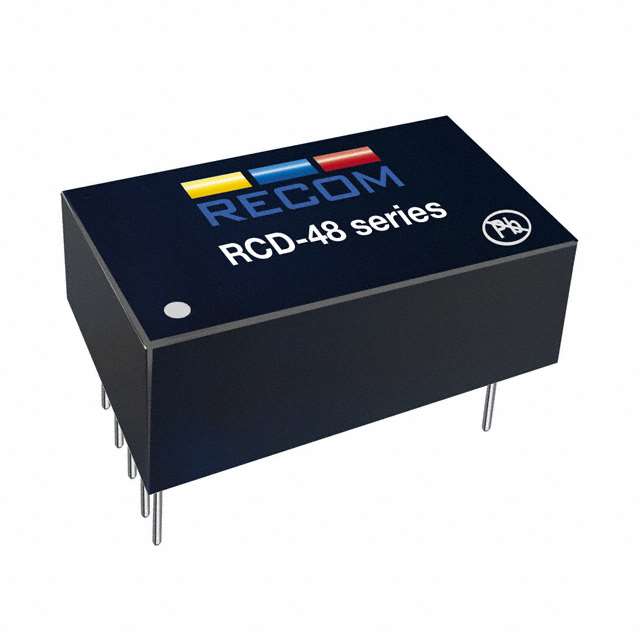

RCD-48 Series

Catalog

LED POWER SUPPLIES 12-60VIN 2-56VOUT LED DRIVER DC/DC

Part	Power (Watts)	Approval Agency	Voltage - Output [Min]	Voltage - Output [Max]	Topology	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Number of Outputs	Type	Features	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Dimming	Efficiency	Termination Style	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Ratings
Recom Power RCD-48-0.50	28 W	EN UL	2 V	56 V	Buck	60 V	500 mA	9 V	1	Constant Current	Remote On/Off SCP	7-DIP Module	Through Hole	80 °C	-40 C	Analog PWM	96 %
Recom Power RCD-48-0.35	20 W	EN UL	2 V	56 V	Buck	60 V	350 mA	9 V	1	Constant Current	Remote On/Off SCP	7-DIP Module	Through Hole	80 °C	-40 C	Analog PWM	96 %

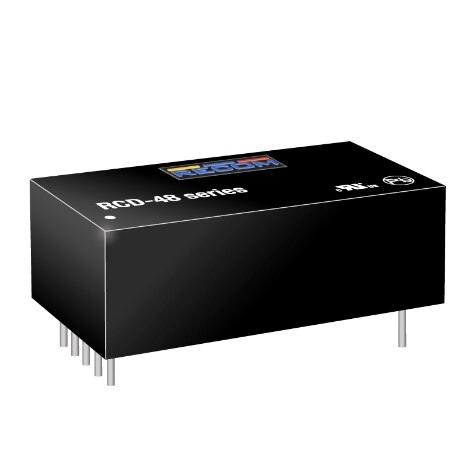

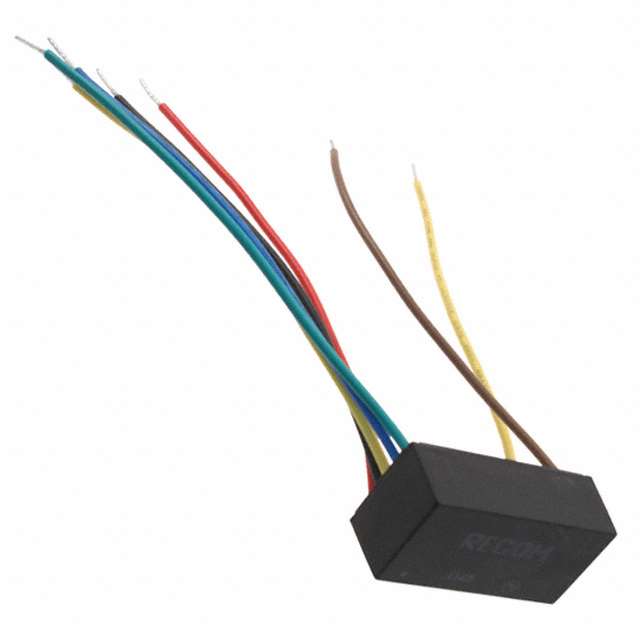

Recom Power RCD-48-0.50/W	28 W	EN UL	2 V	56 V	Buck	60 V	500 mA	9 V	1	Constant Current	OTP Remote On/Off SCP			80 °C	-40 C	Analog PWM	96 %	Wire Leads	1.28 in	0.66 "	0.44 in	11.1 mm	16.7 mm	32.6 mm
Recom Power RCD-48-0.35/W	20 W	EN UL	2 V	56 V	Buck	60 V	350 mA	9 V	1	Constant Current	OTP Remote On/Off SCP		Chassis Mount	80 °C	-40 C	Analog PWM	96 %	Wire Leads	1.28 in	0.66 "	0.44 in	11.1 mm	16.7 mm	32.6 mm	16.33 g	0.036 lb	IP67
Recom Power RCD-48-1.00/W	56 W	EN UL	2 V	56 V	Buck	60 V	1 A	9 V	1	Constant Current	Remote On/Off SCP			80 °C	-40 C	Analog PWM	96 %	Wire Leads	1.28 in	0.66 "	0.44 in	11.1 mm	16.7 mm	32.6 mm			IP67
Recom Power RCD-48-0.70/W	39 W	EN UL	2 V	56 V	Buck	60 V	700 mA	9 V	1	Constant Current	OTP Remote On/Off SCP		Chassis Mount	75 ░C	-40 C	Analog PWM	96 %	Wire Leads	1.28 in	0.66 "	0.44 in	11.1 mm	16.7 mm	32.6 mm	16.33 g	0.036 lb	IP67
Recom Power RCD-48-0.70	39 W	EN UL	2 V	56 V	Buck	60 V	700 mA	9 V	1	Constant Current	Remote On/Off SCP	7-DIP Module	Through Hole	75 ░C	-40 C	Analog PWM	96 %								13.15 g	0.029 lb
Recom Power RCD-48-1.20/M	67 W	EN UL	2 V	56 V	Buck	60 V	1.2 A	9 V	1	Constant Current	Remote On/Off SCP	7-DIP Module	Through Hole	50 °C	0 °C	Analog PWM	96 %		1.28 in	0.62 in	0.44 in	11.2 mm	16 mm	32.6 mm	16.33 g	0.036 lb
Recom Power RCD-48-1.00	56 W	EN UL	2 V	56 V	Buck	60 V	1 A	9 V	1	Constant Current	Remote On/Off SCP	7-DIP Module	Through Hole	80 °C	-40 C	Analog PWM	96 %
