6280-6SG Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

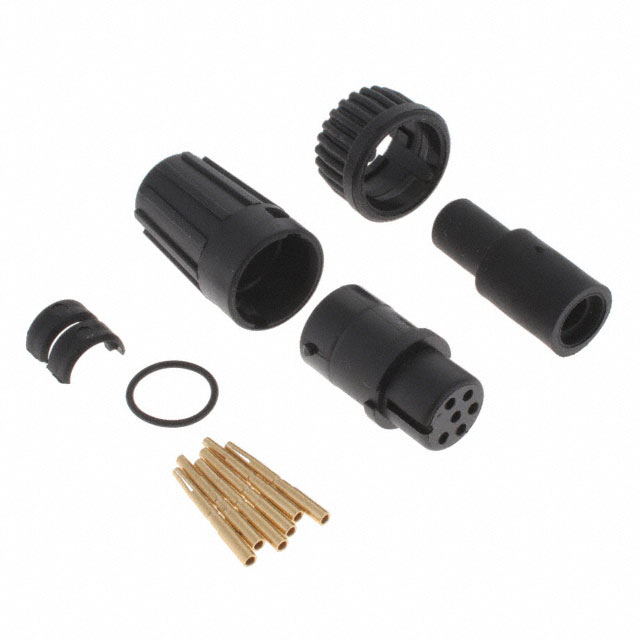

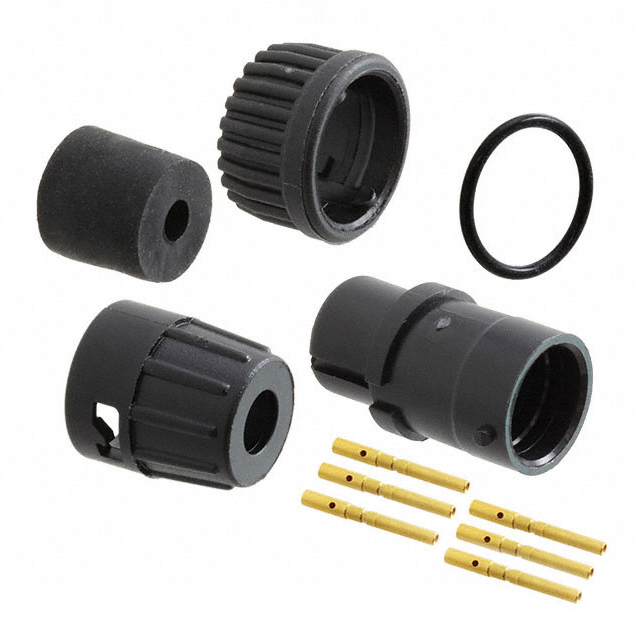

MINI-CON-X CABLE END, 6-PIN #20, FEMALE, CRIMP, BULK
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Mounting Type | Current Rating (Amps) | Contact Material | Color | Features | Termination | Ingress Protection | Applications | Voltage Rating | Connector Type | Fastening Type | Shielding | Orientation | Backshell Material, Plating | Primary Material | Number of Positions | Cable Opening [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | 115 °C | -40 C | Gold | 5.33 mm | 0.21 in | 0.19 in | 4.83 mm | Free Hanging (In-Line) | Varies by Wire Gauge | Brass | Black | Backshell | Crimp | Weathertight | Automotive Communication Systems Instrumentation | 600 V | Plug Female Sockets | Bayonet Lock | Unshielded | Keyed | Nylon Polyamide (PA) | Plastic | 6 | |
SWITCHCRAFT/CONXALL | 115 °C | -40 C | Gold | 0.14 in | 0.09 in | 2.29 mm | Free Hanging (In-Line) | Varies by Wire Gauge | Brass | Black | Backshell | Crimp | Weathertight | Automotive Communication Systems Instrumentation | 600 V | Plug Female Sockets | Bayonet Lock | Unshielded | Keyed | Nylon Polyamide (PA) | Plastic | 6 | 3.56 mm | |
SWITCHCRAFT/CONXALL | 115 °C | -40 C | Gold | Free Hanging (In-Line) | Varies by Wire Gauge | Brass | Black | Backshell | Crimp | Weathertight | Automotive Communication Systems Instrumentation | 600 V | Plug Female Sockets | Bayonet Lock | Unshielded | Keyed | Nylon Polyamide (PA) | Plastic | 6 | |||||
 SWITCHCRAFT/CONXALL | 115 °C | -40 C | Gold | 3.81 mm | 0.15 in | 0.13 " | 3.3 mm | Free Hanging (In-Line) | Varies by Wire Gauge | Brass | Black | Backshell | Crimp | Weathertight | Automotive Communication Systems Instrumentation | 600 V | Plug Female Sockets | Bayonet Lock | Unshielded | Keyed | Nylon Polyamide (PA) | Plastic | 6 | |
SWITCHCRAFT/CONXALL | 115 °C | -40 C | Gold | 4.57 mm | 0.18 " | 0.16 " | 4.06 mm | Free Hanging (In-Line) | Varies by Wire Gauge | Brass | Black | Backshell | Crimp | Weathertight | Automotive Communication Systems Instrumentation | 600 V | Plug Female Sockets | Bayonet Lock | Unshielded | Keyed | Nylon Polyamide (PA) | Plastic | 6 | |
 SWITCHCRAFT/CONXALL | 115 °C | -40 C | Gold | 5.08 mm | 0.2 " | 0.18 " | 4.57 mm | Free Hanging (In-Line) | Varies by Wire Gauge | Brass | Black | Backshell | Crimp | Weathertight | Automotive Communication Systems Instrumentation | 600 V | Plug Female Sockets | Bayonet Lock | Unshielded | Keyed | Nylon Polyamide (PA) | Plastic | 6 |
