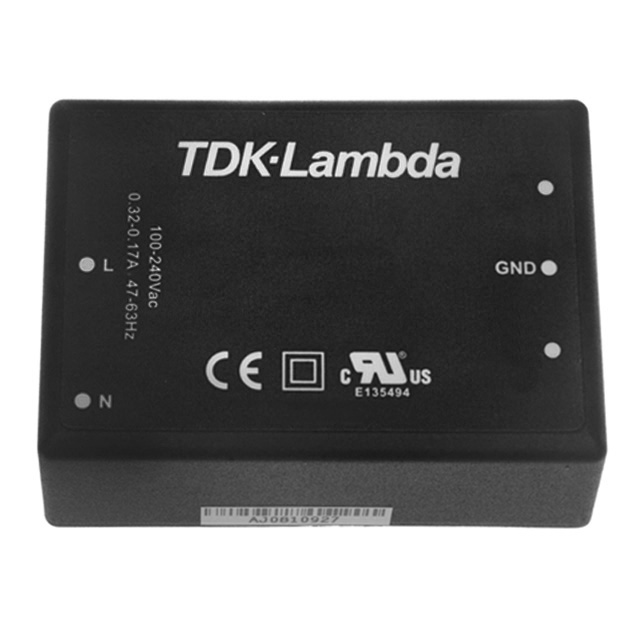

KMD15 Series

Catalog

AC/DC PCB MOUNT POWER SUPPLY (PSU), MEDICAL, 2 OUTPUT, 15 W, 15 V, 500 MA, -15 V

Part	Weight [custom]	Weight [custom]	Line Regulation	Load Regulation	Efficiency	Standard Number	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Current - Output (Max)	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Features	Package / Case	Type	Voltage - Output 1	Current - Output (Max) [Max]	Current - Output (Max) [Max]
TDK Corporation KMD15-1515	0.265 lb	120.2 g	0.5 %	1 %	81 %	60601-1 60950-1 62368-1	Medical	264 VAC 375 VDC	90 VAC 100 V	CE EN IEC UL	500 mA	Through Hole	64 mm	45.6 mm	2.52 "	0.93 "	1.8 in	23.5 mm	2	15 W	70 °C	-25 °C	Universal Input	9-DIP Module 5 Leads	Enclosed	15 V
TDK Corporation KMD15-1212	0.265 lb	120.2 g	0.5 %	1 %	80 %	60601-1 60950-1 62368-1	Medical	264 VAC 375 VDC	90 VAC 100 V	CE EN IEC UL		Through Hole	64 mm	45.6 mm	2.52 "	0.93 "	1.8 in	23.5 mm	2	15 W	70 °C	-25 °C	Universal Input	9-DIP Module 5 Leads	Enclosed	12 V	625 mA	625 mA
