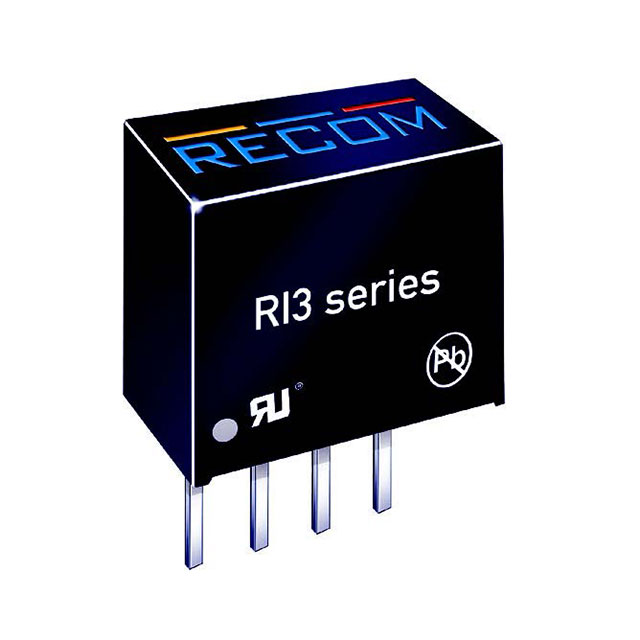

RI3 Series
Manufacturer: Recom Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 3W 12VIN 5VOUT 600MA
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Package / Case | Voltage - Input (Min) [Min] | Applications | Number of Outputs | Voltage - Isolation | Power (Watts) | Efficiency | Mounting Type | Voltage - Output 1 | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 85 °C | -40 C | 13.2 V | 600 mA | 4-SIP Module | 10.8 V | ITE (Commercial) | 1 | 3000 V | 3 W | 85 % | Through Hole | 5 V | 0.3 " | 0.45 " | 0.4 " | 10.2 mm | 7.6 mm | 11.4 mm | Isolated Module |
Recom Power | 85 °C | -40 C | 26.4 V | 333 mA | 4-SIP Module | 21.6 V | ITE (Commercial) | 1 | 1000 V | 3 W | 89 % | Through Hole | 9 V | 0.3 " | 0.45 " | 0.4 " | 10.2 mm | 7.6 mm | 11.4 mm | Isolated Module |
Recom Power | 85 °C | -40 C | 13.2 V | 250 mA | 4-SIP Module | 10.8 V | ITE (Commercial) | 1 | 2000 V | 3 W | 89 % | Through Hole | 12 V | 0.3 " | 0.45 " | 0.4 " | 10.2 mm | 7.6 mm | 11.4 mm | Isolated Module |
Recom Power | 85 °C | -40 C | 26.4 V | 600 mA | 4-SIP Module | 21.6 V | ITE (Commercial) | 1 | 2000 V | 3 W | 86 % | Through Hole | 5 V | 0.3 " | 0.45 " | 0.4 " | 10.2 mm | 7.6 mm | 11.4 mm | Isolated Module |
 Recom Power | 85 °C | -40 C | 13.2 V | 200 mA | 4-SIP Module | 10.8 V | ITE (Commercial) | 1 | 3000 V | 3 W | 89 % | Through Hole | 15 V | 0.3 " | 0.45 " | 0.4 " | 10.2 mm | 7.6 mm | 11.4 mm | Isolated Module |
Recom Power | 85 °C | -40 C | 13.2 V | 200 mA | 4-SIP Module | 10.8 V | ITE (Commercial) | 1 | 1000 V | 3 W | 89 % | Through Hole | 15 V | 0.3 " | 0.45 " | 0.4 " | 10.2 mm | 7.6 mm | 11.4 mm | Isolated Module |
Recom Power | 85 °C | -40 C | 13.2 V | 600 mA | 4-SIP Module | 10.8 V | ITE (Commercial) | 1 | 1000 V | 3 W | 85 % | Through Hole | 5 V | 0.3 " | 0.45 " | 0.4 " | 10.2 mm | 7.6 mm | 11.5 mm | Isolated Module |
Recom Power | 85 °C | -40 C | 13.2 V | 333 mA | 4-SIP Module | 10.8 V | ITE (Commercial) | 1 | 1000 V | 3 W | 88 % | Through Hole | 9 V | 0.3 " | 0.45 " | 0.4 " | 10.2 mm | 7.6 mm | 11.4 mm | Isolated Module |
Recom Power | 85 °C | -40 C | 13.2 V | 250 mA | 4-SIP Module | 10.8 V | ITE (Commercial) | 1 | 3000 V | 3 W | 89 % | Through Hole | 12 V | 0.3 " | 0.45 " | 0.4 " | 10.2 mm | 7.6 mm | 11.4 mm | Isolated Module |
 Recom Power | 85 °C | -40 C | 16.5 V | 600 mA | 4-SIP Module | 13.5 V | ITE (Commercial) | 1 | 2000 V | 3 W | 85 % | Through Hole | 5 V | 0.3 " | 0.45 " | 0.4 " | 10.2 mm | 7.6 mm | 11.4 mm | Isolated Module |
