Z+ Low Voltage Series

Catalog

BENCH TOP POWER SUPPLIES 0-10VOUT 0-20A 200W, LAN, US CORD

Part	Voltage Regulation - Line	Current Regulation - Load	Voltage Regulation - Load	Weight [custom]	Weight [custom]	Ripple	Accuracy - Voltmeter; Ammeter	Current Regulation - Line	Voltage - Output [Max]	Power (Watts)	Display Type	Current - Output [Max]	Type	Number of Outputs	Features	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Characters	Number of Characters	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]

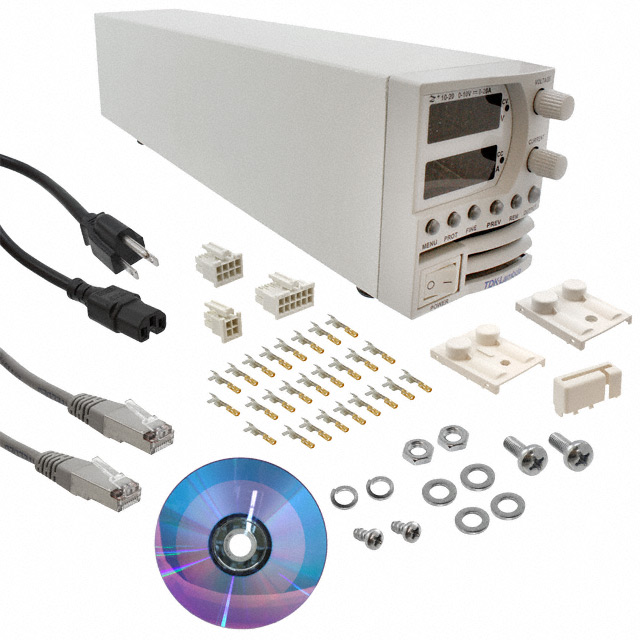

TDK Corporation Z10-20-LAN-U	2 mV	0.01 % 5 mA	2 mV	1.9 kg	4.2 lbs	5 mV	0.5% + 1 count	2 mA	10 V	200 Watts	Digital	20 A	Bench (AC to DC)	1	LAN Programmable RS232 RS485 USB Interface	85 VAC/DC	265 VAC	2	4	83 mm	13.78 in	350 mm	3.268 "	70 mm	2.756 in
TDK Corporation Z100-2-IEEE-U	2 mV	0.01 % 5 mA	2 mV	2.4 kg	5.3 lbs	8 mV	0.5% + 1 count	2 mA	100 VDC	200 Watts	Digital	2 A	Bench (AC to DC)	1	GPIB Programmable RS232 RS485 USB Interface	85 VAC/DC	265 VAC	2	4	83 mm	13.78 in	350 mm	3.268 "	105 mm	4.134 in
TDK Corporation Z60-10-IEEE-U									60 V	600 W	Digital	10 A	Bench (AC to DC)	1	GPIB Programmable RS232 RS485 USB Interface	85 VAC/DC	265 VAC	2	4	83 mm	13.78 in	350 mm	3.268 "	105 mm	4.134 in
TDK Corporation Z160-4-IS510-U	0.01 %	0.09 %	0.01 %	2.4 kg	5.3 lbs	10 mV	0.5% + 1 count	0.02 %	160 V	640 W	Digital	4 A	Bench (AC to DC)	1	Programmable RS232 RS485 USB Interface	85 VAC/DC	265 VAC	2	4	83 mm	13.78 in	350 mm	3.268 "	105 mm	4.134 in
TDK Corporation Z10-60-IS510-U	2 mV	0.01 % 5 mA	2 mV	2.4 kg	5.3 lbs	6.25 mV	0.5% + 1 count	2 mA	10 V	600 W	Digital	60 A	Bench (AC to DC)	1	Programmable RS232 RS485 USB Interface	85 VAC/DC	265 VAC	2	4	83 mm	13.78 in	350 mm	3.268 "	105 mm	4.134 in
TDK Corporation Z10-20-U	2 mV	0.01 % 5 mA	2 mV	1.9 kg	4.2 lbs	5 mV	0.5% + 1 count	2 mA	10 V	200 Watts	Digital	20 A	Bench (AC to DC)	1	Programmable RS232 RS485 USB Interface	85 VAC/DC	265 VAC	2	4	83 mm	13.78 in	350 mm	3.268 "	70 mm	2.756 in
TDK Corporation Z10-72-IS420-U	2 mV	0.01 % 5 mA	2 mV	2.4 kg	5.3 lbs	6.25 mV	0.5% + 1 count	2 mA	10 V	720 W	Digital	72 A	Bench (AC to DC)	1	Programmable RS232 RS485 USB Interface	85 VAC/DC	265 VAC	2	4	83 mm	13.78 in	350 mm	3.268 "	105 mm	4.134 in
TDK Corporation Z320-2.5-LAN-U	0.01 %	0.09 %	0.01 %	1.9 kg	4.2 lbs	30 mV	0.5% + 1 count	0.02 %	320 VDC	800 W	Digital	2.5 A	Bench (AC to DC)	1	LAN Programmable RS232 RS485 USB Interface	85 VAC/DC	265 VAC	2	4	83 mm	13.78 in	350 mm	3.268 "	70 mm	2.756 in
