SN74AC541 Series

Eight-channel, 1.5-V to 6-V, 24-mA drive strength buffers with 3-state outputs

Catalog

Eight-channel, 1.5-V to 6-V, 24-mA drive strength buffers with 3-state outputs

Part	Mounting Type	Logic Type	Number of Bits per Element	Supplier Device Package	Package / Case	Package / Case [x]	Package / Case [y]	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Number of Elements	Current - Output High, Low

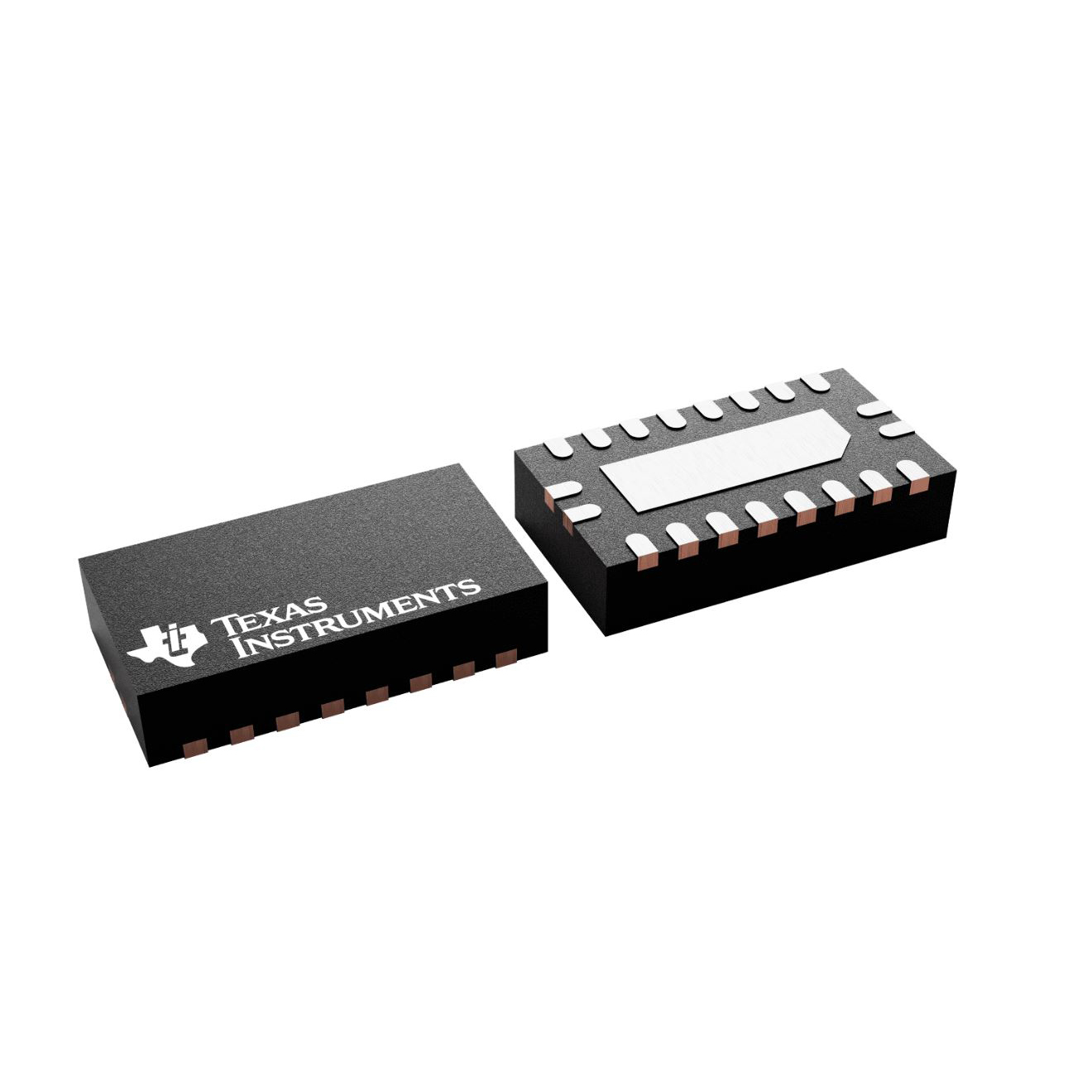

Texas Instruments SN74AC541DGSR	Surface Mount	Buffer Non-Inverting	8	20-VSSOP	20-TFSOP	0.118 in	3 mm	1.5 V	6 V	-40 °C	125 °C	3-State	1	24 mA
Texas Instruments SN74AC541RKSR	Surface Mount Wettable Flank	Buffer Non-Inverting	8	20-VQFN (2.5x4.5)	20-VFQFN Exposed Pad			1.5 V	6 V	-40 °C	125 °C	3-State	1	24 mA

Catalog

Eight-channel, 1.5-V to 6-V, 24-mA drive strength buffers with 3-state outputs

Key Features

• Wide operating range of 1.5 V to 6 VInputs accept voltages up to 6 VContinuous ±24-mA output drive at 5 VSupports up to ±75-mA output drive at 5 V in short burstsDrives 50-Ω transmission linesMaximum t pd of 6 ns at 5 V, 50 pF loadWide operating range of 1.5 V to 6 VInputs accept voltages up to 6 VContinuous ±24-mA output drive at 5 VSupports up to ±75-mA output drive at 5 V in short burstsDrives 50-Ω transmission linesMaximum t pd of 6 ns at 5 V, 50 pF load

Description

The SN74AC541 contains eight independent logic buffers. The outputs can simultaneously be put into the high-impedance state using either of the provided output enable pins ( OE1 or OE2). The SN74AC541 contains eight independent logic buffers. The outputs can simultaneously be put into the high-impedance state using either of the provided output enable pins ( OE1 or OE2).
